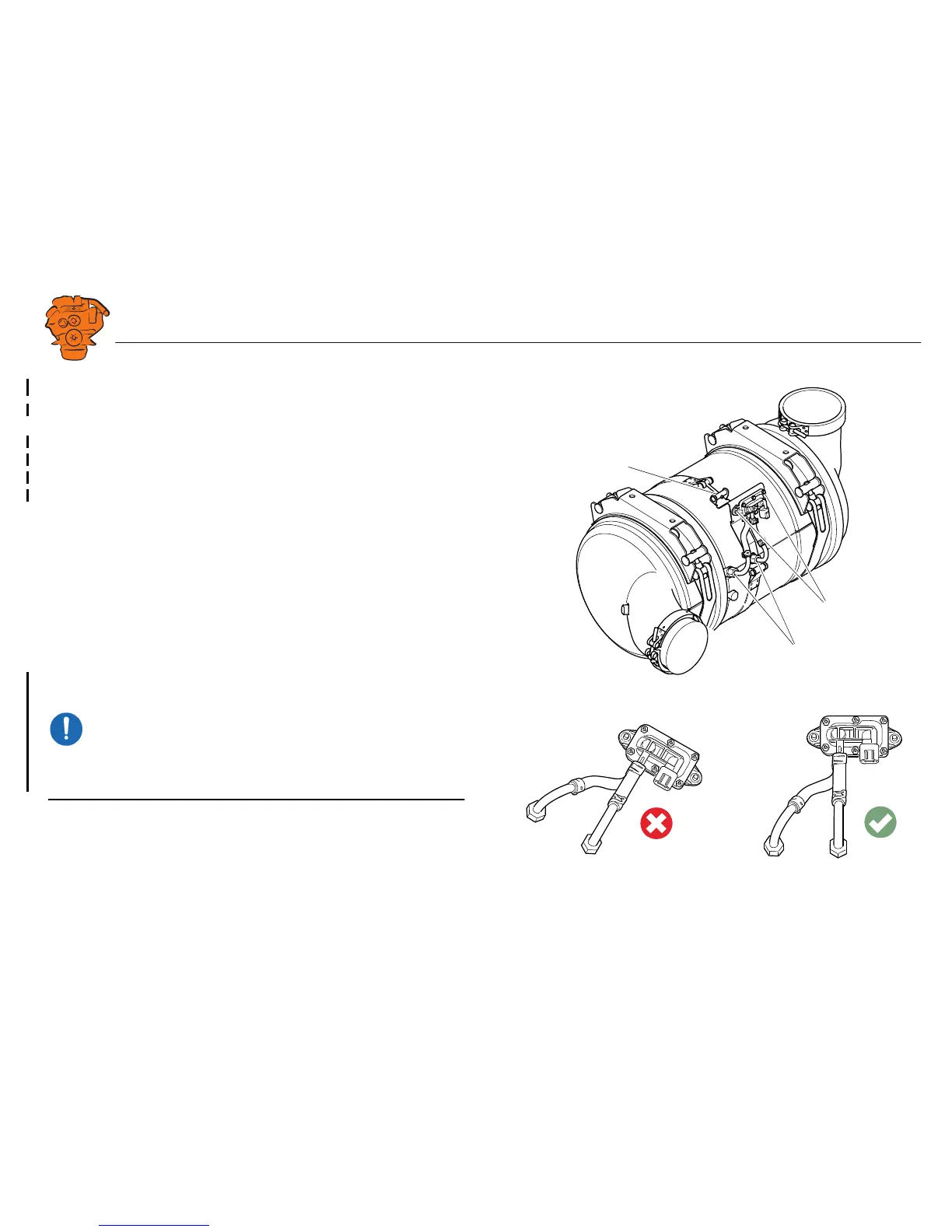

Differential pressure sensor
A differential pressure sensor must be fitted on the particulate filter.
The differential pressure sensor must be fitted so that there is no risk of it coming into
contact with water, as it is damaged by moisture.
IMPORTANT!
The differential pressure sensor must not be inclined when compared to the horizon-
tal plane. There must be a continuous inclination in pipes and hoses in order to pre-
vent water from collecting in them and freezing.
Tightening torques
1. Union nut 40 Nm
2. Nut M6 8 Nm
3. Hexagon socket screw M6 8 Nm
1
3
2
399 644
400 364

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
