Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 11

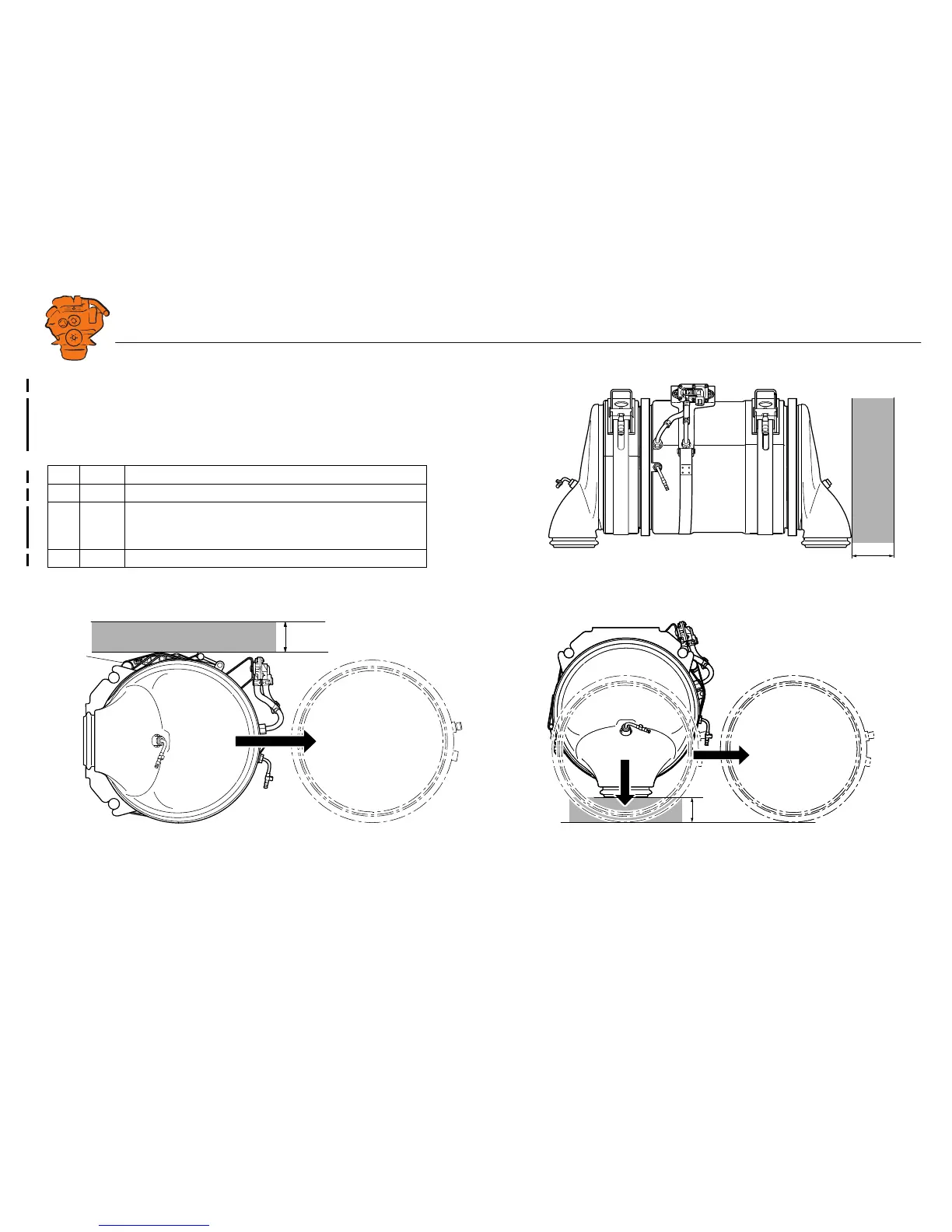

Clearances
When the particulate filter unit is installed, the clearances below should be observed
so that the particulate filter unit can be maintained and repaired in a simple way. The
clearances depend on how the particulate filter unit is installed. Dimension A, how-
ever, always applies.
mm Purpose
A 100 Renewing particulate filter.
B 140 Renew particulate filter with vertically installed bracket. In
order to renew the particulate filter, screw 1 must be
undone.
C 100 Renew particulate filter with horizontally installed bracket.
A
398 030
1
B
398 032
C
398 033

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
