INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 10

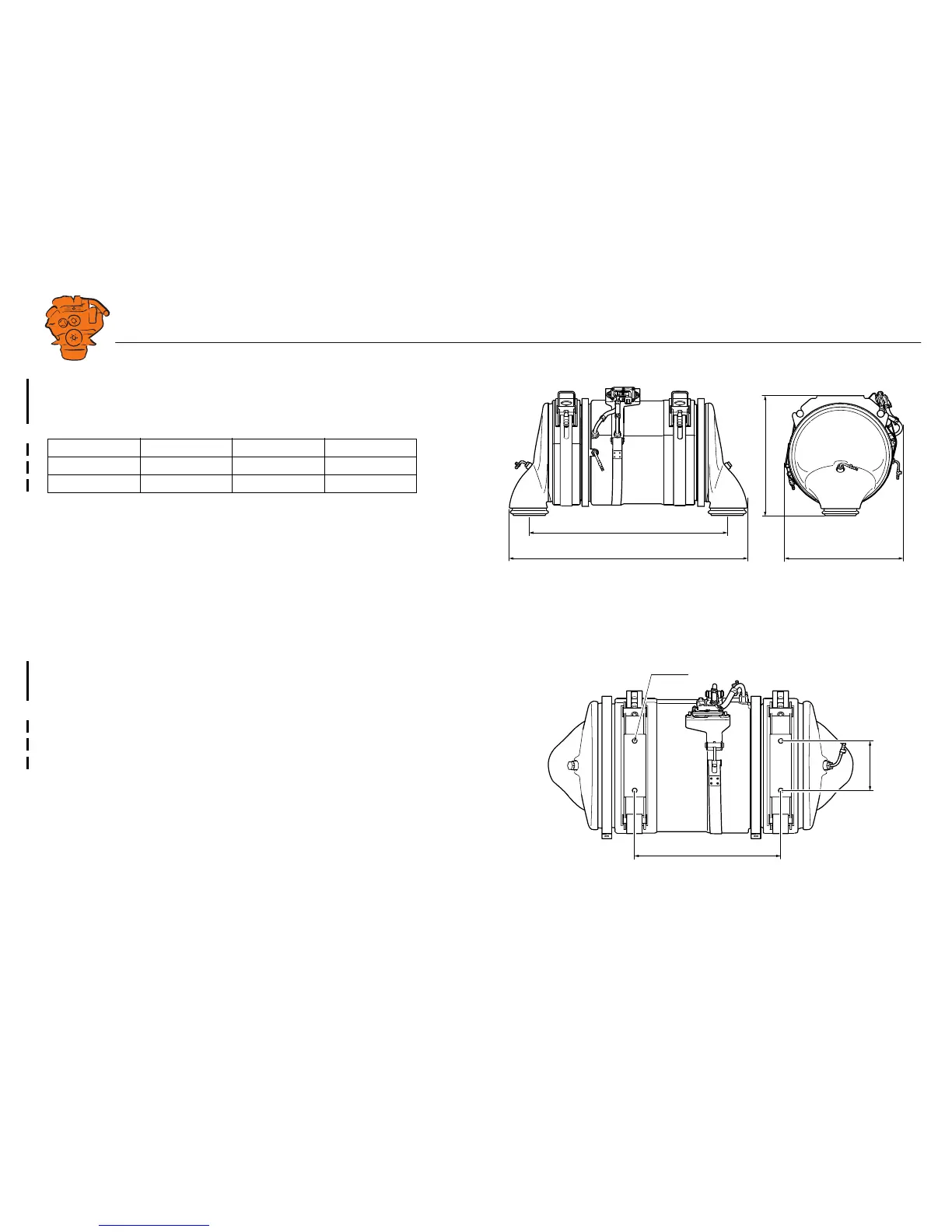

Dimensions and attachment
The particulate filter unit is available in 2 versions. See the illustrations on the right
and below.
The particulate filter unit is supplied with 2 retaining straps with brackets. Attach the
brackets with flange screw M12 or a common screw of a suitable length. Use an M12
flange nut if necessary.
Engine L1 (mm) L2 (mm) L3 (mm)
DC09 603 747 305
DC13 679 823 380
Tightening torques
M12 70 Nm
Retaining strap 39 Nm
425
423
L1
L2
397 837
2x130
L3
4xØ13
397 838
