Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden

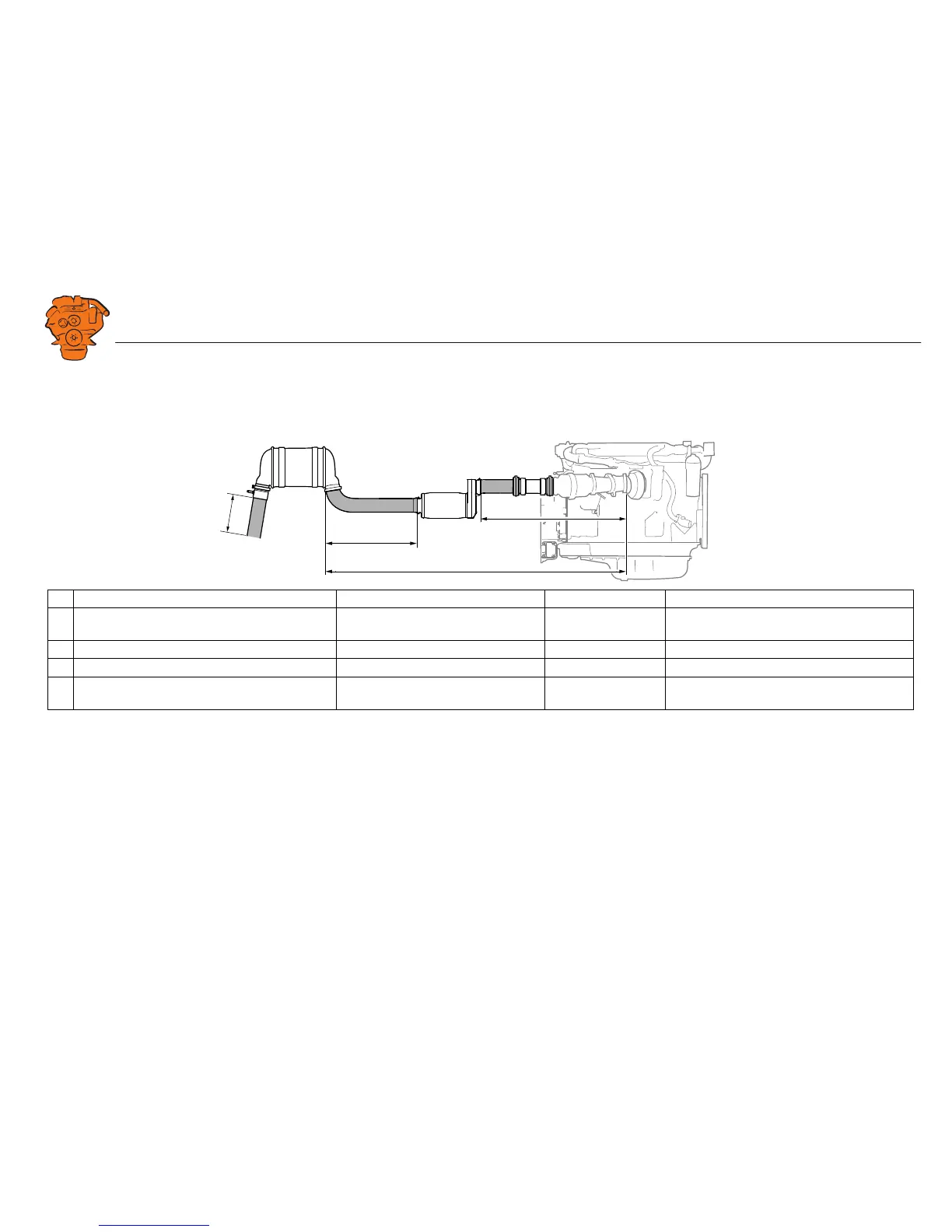

System overview – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 22
Exhaust pipe
Pipe lengths
Dimension B: For Stage IV/Tier 4f engines, the exhaust gas temperature may drop
too much in the system if the total length between the turbocharger and SCR catalytic
converter intake exceeds 3.5 metres. There is then a great risk that the engine will go
into heating mode, which can increase fuel consumption. The maximum permitted
exhaust gas temperature reduction is indicated in 01:04 Exhaust system.
From To Pipe length (mm) Remarks
A Turbocharger Evaporator or hydrolysis catalytic con-
verter intake
500-1,500
B Turbocharger SCR catalytic converter intake Max. 3,500 Only applies to Stage IV/Tier 4f engines.
C Evaporator or hydrolysis catalytic converter outlet SCR catalytic converter intake 700-3,000
DNO
x
adapter Exhaust outlet Min.500 In order for the measurement of NO
x
content to
be correct.
A
B
C
D
393 940

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
