Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 14

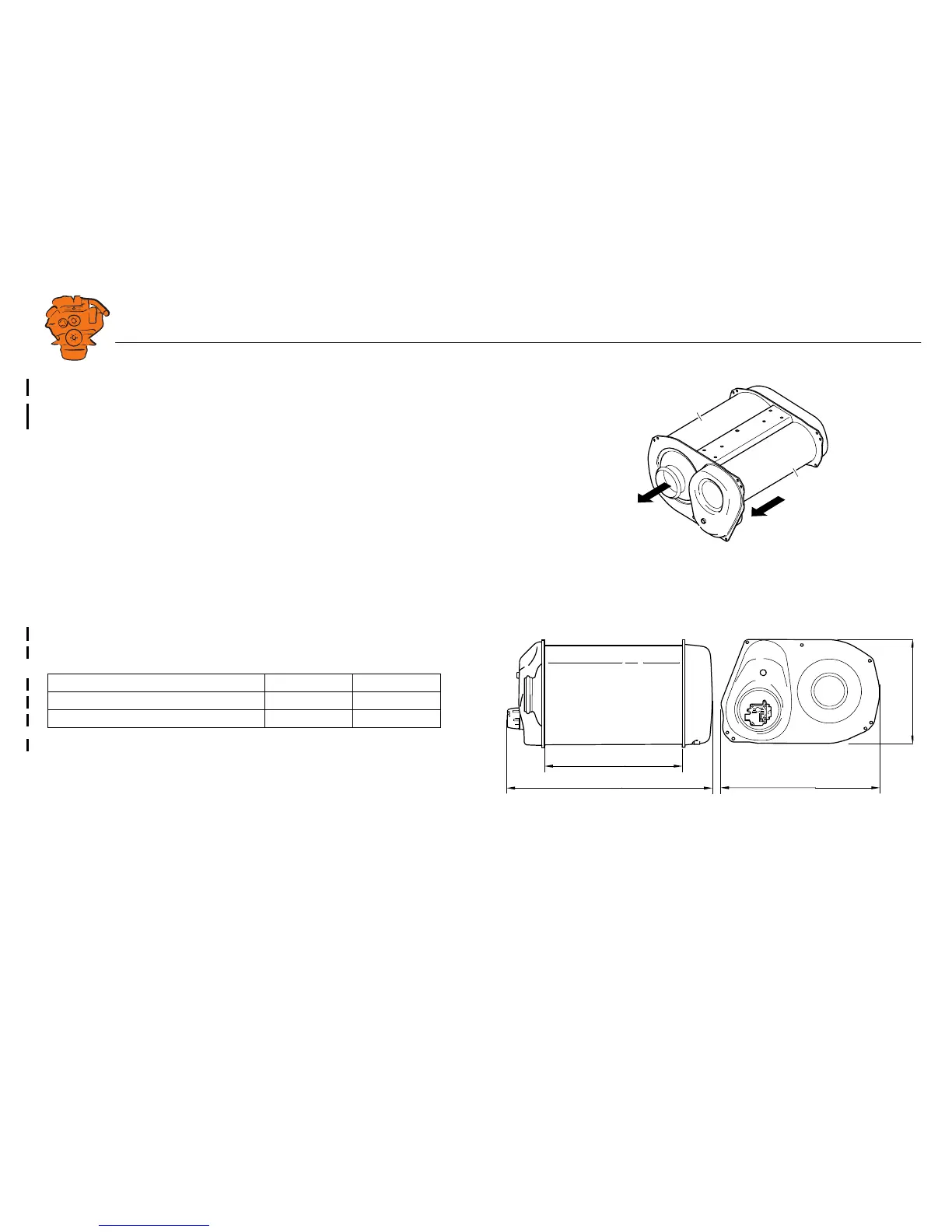

SCR unit
The SCR unit consists of an evaporator and an SCR catalytic converter. The arrows
show the direction of exhaust gases into and out from the SCR unit.
Dimensions
The SCR unit is available in 2 versions.
The tolerance for dimension L1 is ±3 mm.
Engine L1 (mm) L2 (mm)
DC09 and DC13 up to 331 kW 518 763.5
DC13 over 331 kW 595 840.5
2
1
399 084
SCR unit.
1. Evaporator.
2. SCR catalytic converter.
L1
L2
610
400
399 085

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
