INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage V
01:07 Issue 17 en-GB 5

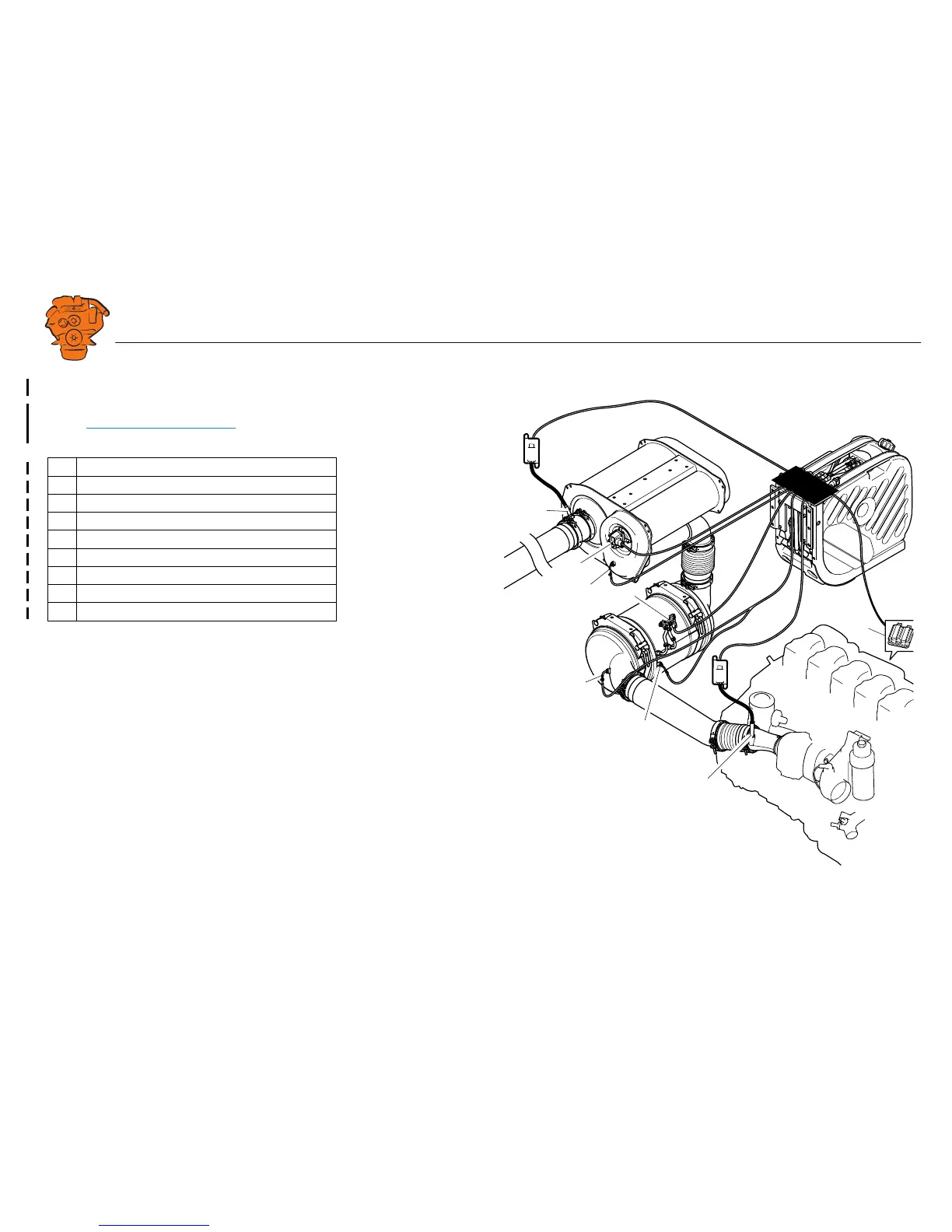

System overview of electrics
Connection of harness-to-harness connectors on the reductant tank is described in
section Connecting the reductant tank
. Connection to the engine control unit is de-
scribed in 03:01 Electrical system.
Component
1. NO
x
sensor T131 with control unit.
2. Exhaust gas temperature sensor T4012.
3. Exhaust gas temperature sensor T4010.
4. Differential pressure sensor T141.
5. Exhaust gas temperature sensor T113.
6. Reductant doser V117.
7. NO
x
sensor T115 with control unit.
8. Engine control unit.
3
4
7
8
5
2
1
6
400 242
