Reductant tank
01:07 Issue 17 en-GB 50
Coolant connections on the engine

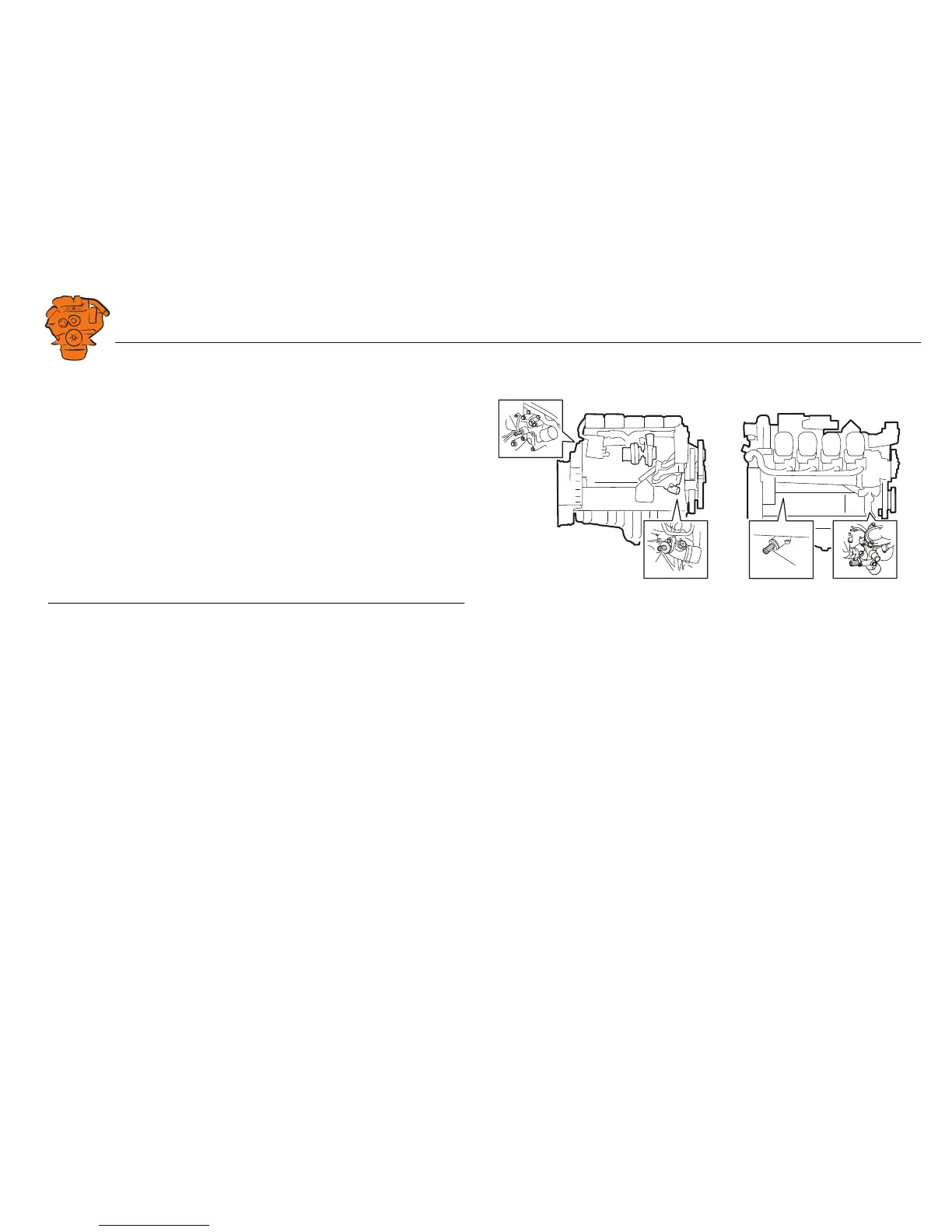

The illustrations show coolant connections on each engine type for heating the re-
ductant tank.
1. Return fluid to engine
2. Coolant from engine
Use a hose with an inside diameter of 16 mm for connection to the nipples.
The hose material should be resistant to refrigerant. The material must be type EPDM
or similar, and must be able to withstand a working pressure of at least 3.5 bar.
To ensure sufficient flow, hoses must not have any sharp bends and there must be no
spots where they are at risk of being pinched.
