Reductant tank
01:07 Issue 17 en-GB 44
Connecting the reductant tank

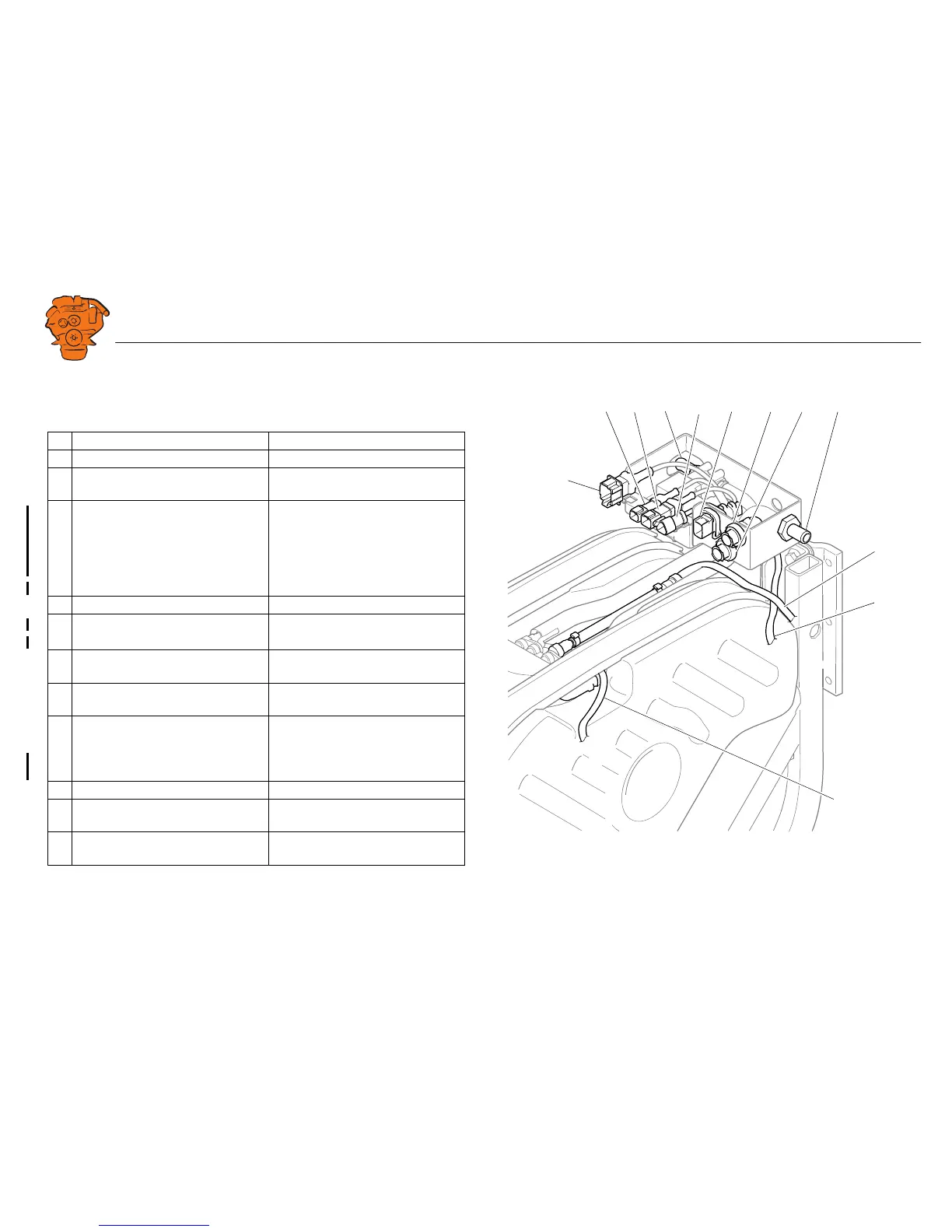

Connecting the 38 and 60 litre reductant tanks
Connection Description
1. C316 Reductant doser (V117).
2. C4012 Exhaust gas temperature sensor up-
stream of catalytic converter (T113).
3. C4132 The exhaust gas temperature sensor
upstream of the oxidation catalytic
converter (T4012) and downstream of
the oxidation catalytic converter
(T4010).
Note: Only applies to Stage V.
4. Coolant from engine Union, Ø 16 mm
5. C4131 Differential pressure sensor (T141).
Note: Only applies to Stage V.
6. C7 Voltage supply from the engine,
CAN-connection.
7. C4011 NO
x
sensor downstream of catalytic
converter (T115).
8. C4051 NO
x
sensor upstream of the catalytic
converter (T131).
Note: Only applies to Stage IV/
Tier 4f and Stage V.
9. Coolant return to engine Union, Ø 16 mm
10. Pressure hose for reductant to reduct-
ant doser
SAE J2044, Ø 6.30 mm.
11. Return hose for reductant to reductant
tank
SAE J2044, Ø 7.89 mm.
