Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Reductant tank
01:07 Issue 17 en-GB 45

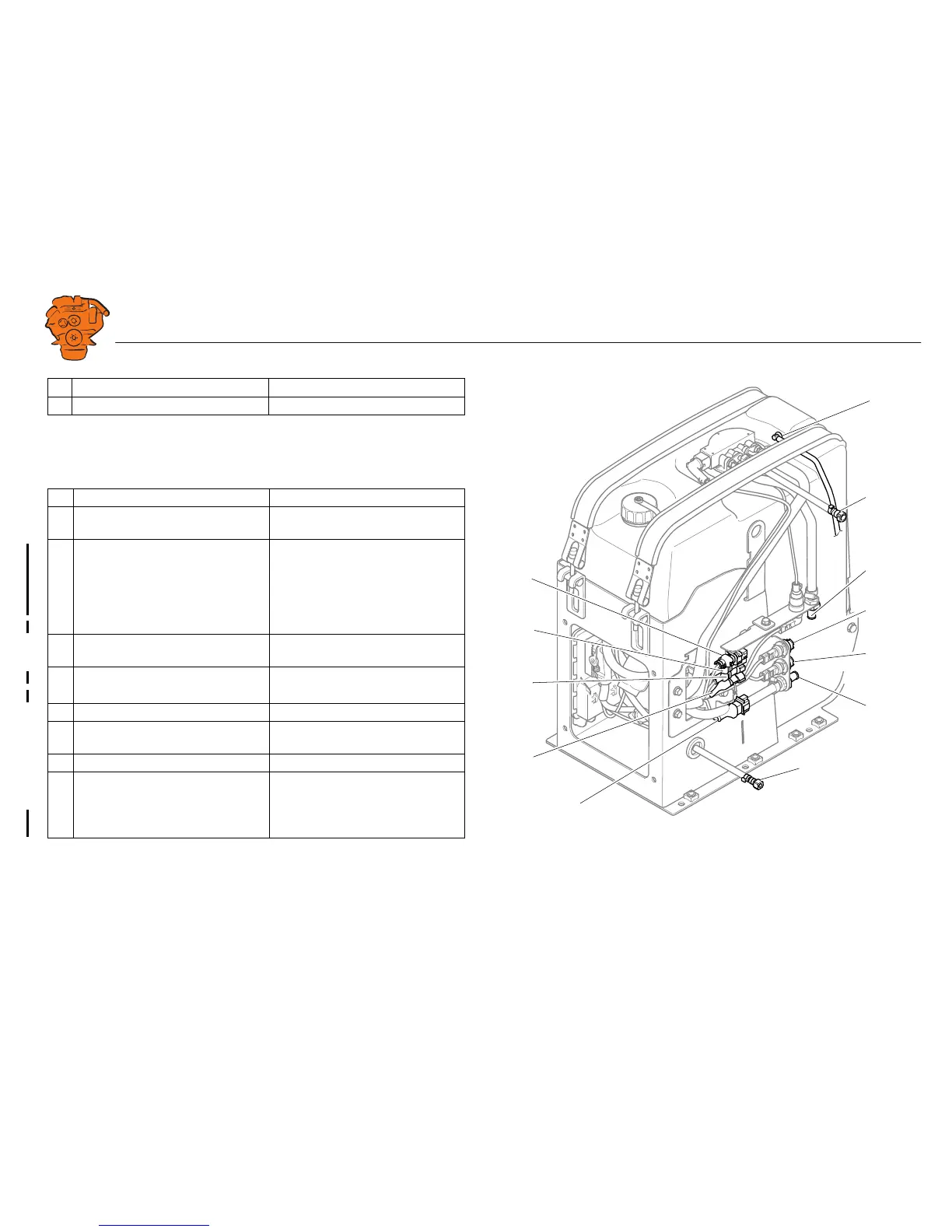

Connecting the 45 and 63 litre reductant tanks
The illustration shows a 63 litre tank, but the connection is the same on the 45 litre
tank.
12. Ventilation hose. -
Connection Description
1. C7 Voltage supply from the engine,
CAN-connection.
2. C4132 The exhaust gas temperature sensor
upstream of the oxidation catalytic
converter (T4012) and downstream of
the oxidation catalytic converter
(T4010).
Note: Only applies to Stage V.
3. C4012 Exhaust gas temperature sensor up-
stream of catalytic converter (T113).
4. C4131 Differential pressure sensor (T141).
Note: Only applies to Stage V.
5. C316 Reductant doser (V117).
6. Pressure hose for reductant to reduct-
ant doser
SAE J2044, Ø 6.30 mm.
7. Coolant from engine Union, Ø 16 mm
8. C4051 NO
x
sensor upstream of the catalytic
converter (T131).
Note: Only applies to Stage IV/
Tier 4f and Stage V.
Connection Description
12
11
10
9
8
7
6
5
4
3
2
1
397 835

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
