INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 26

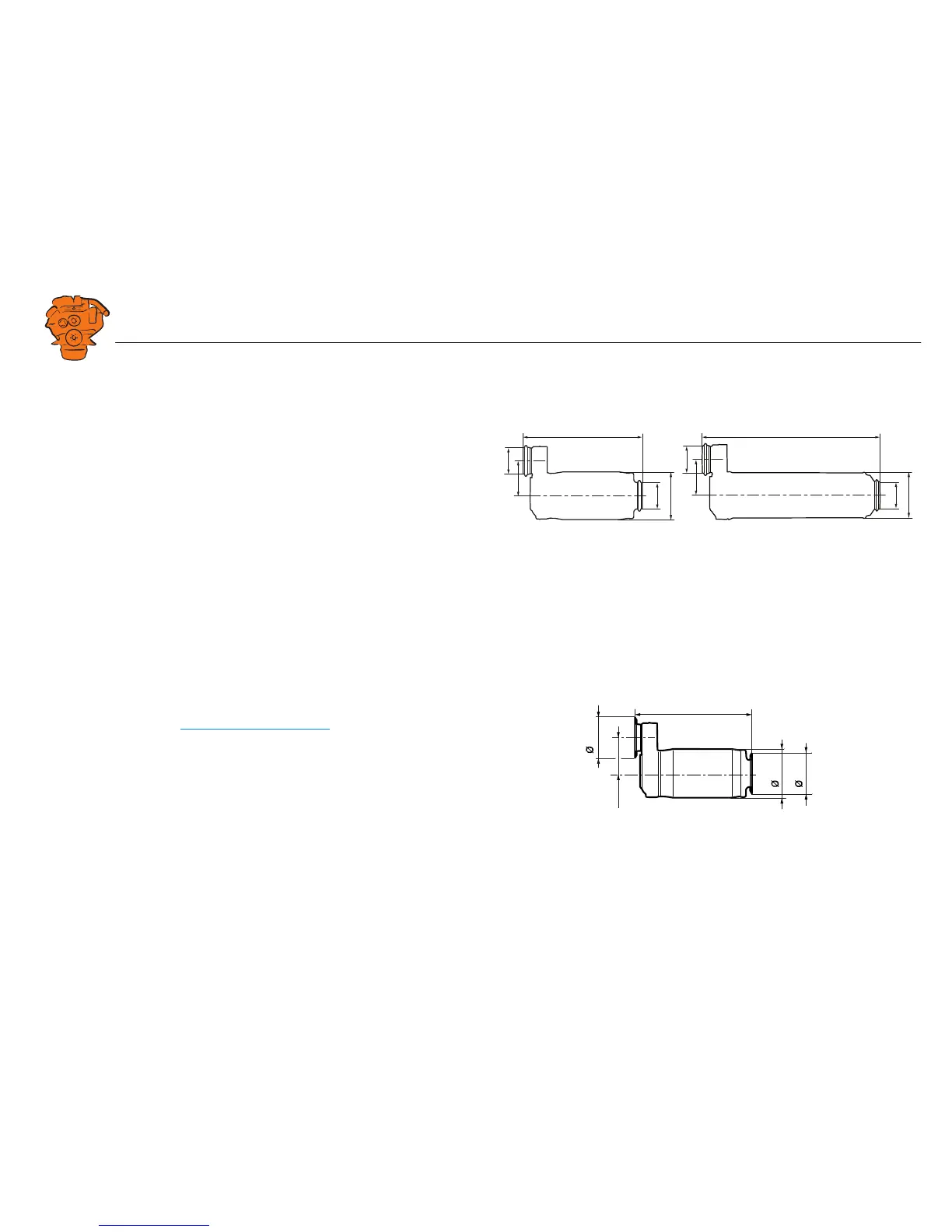

Evaporator
Dimensions
Stage IV/Tier 4f
The illustration shows the dimensions of the evaporator.
Stage IIIB/Tier 4i
For engines certified according to Stage III B/Tier 4i, an evaporator is used for DC09
and DC13. For DC16, see Hydrolysis catalytic converter
.
The illustration shows the dimensions of the evaporator.
338 663
552 796
122
122
122
122
221
203
162
162
1
2
Stage IV/Tier 4f: Evaporator for
1. DC09 and DC13.
2. DC16.
121
162
530.5
185
185
393 952
Stage III B/Tier 4i: Evaporator for DC09 and DC13.
