Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 27
Position

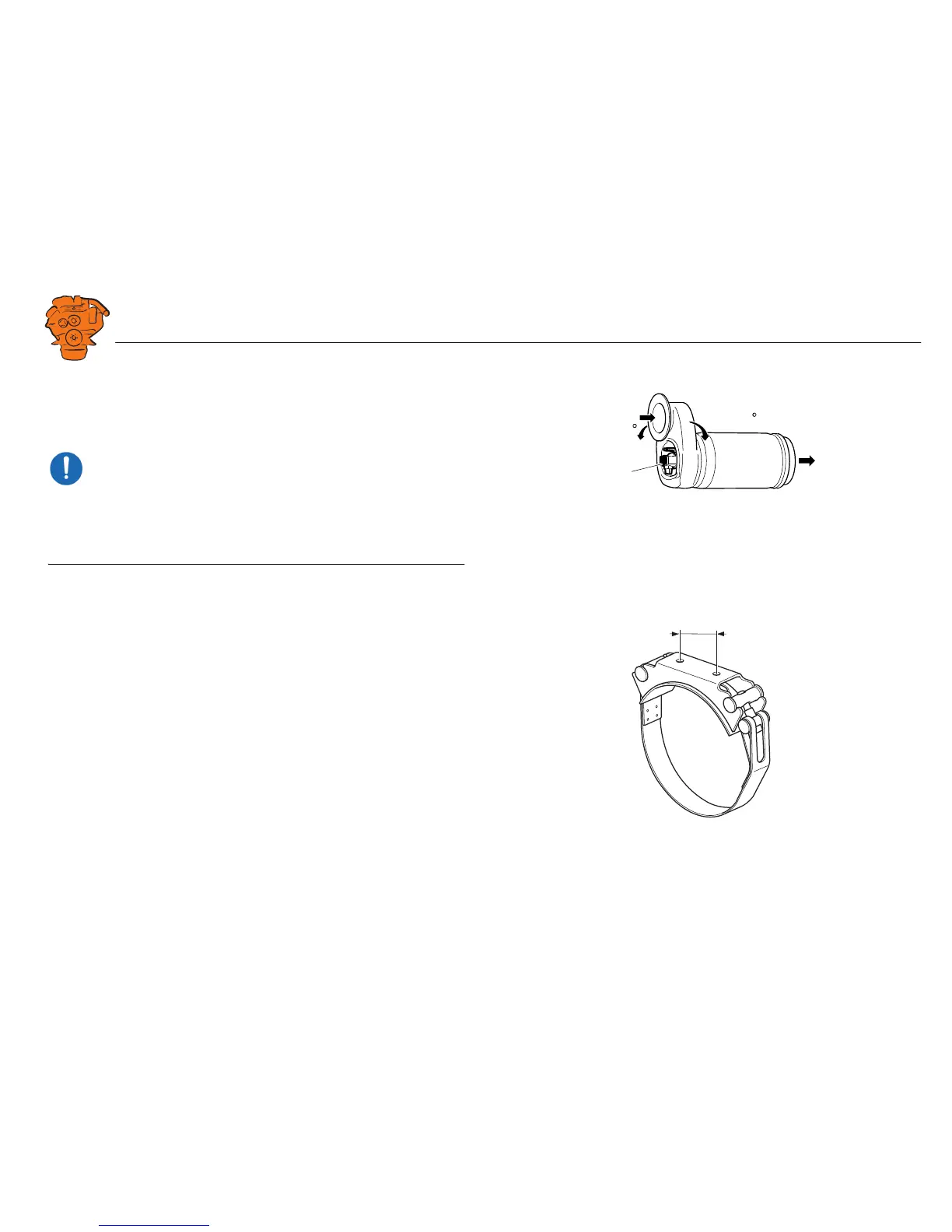

The evaporator must be fitted in the direction of the exhaust gases as illustrated. The
evaporator should be positioned in a space where the ventilation is as good as possi-
ble.
IMPORTANT!
Maximum permitted ambient temperature at the evaporator is 115°C.
The evaporator must not be rotated so that the intake is positioned below the reduct-
ant doser (1). Maximum permitted rotation 90°.
The evaporator must be fitted horizontally.
Mounting
The evaporator is supplied with two retaining straps with brackets. The attachment
holes have a diameter of 13 mm. Attach the brackets with flange screw M12 or a
common screw of a suitable length. Use an M12 flange nut if necessary.
Tightening torques
M12 70 Nm
Retaining strap 39 Nm
1
max 90
max 90
393 948
340 432
80

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
