Connection of reductant doser
Note:
To ensure sufficient flow, hoses must not have any sharp bends and there must be no
spots where they are at risk of being pinched. The maximum bend radius for the hos-
es is 50 mm.
Connection Remark
1. Reductant return hose. Ø 10 mm
2. Pressure hose for reductant. Ø 8 mm
3. Electrical cable to reductant tank. V117
1
2
3
399 703

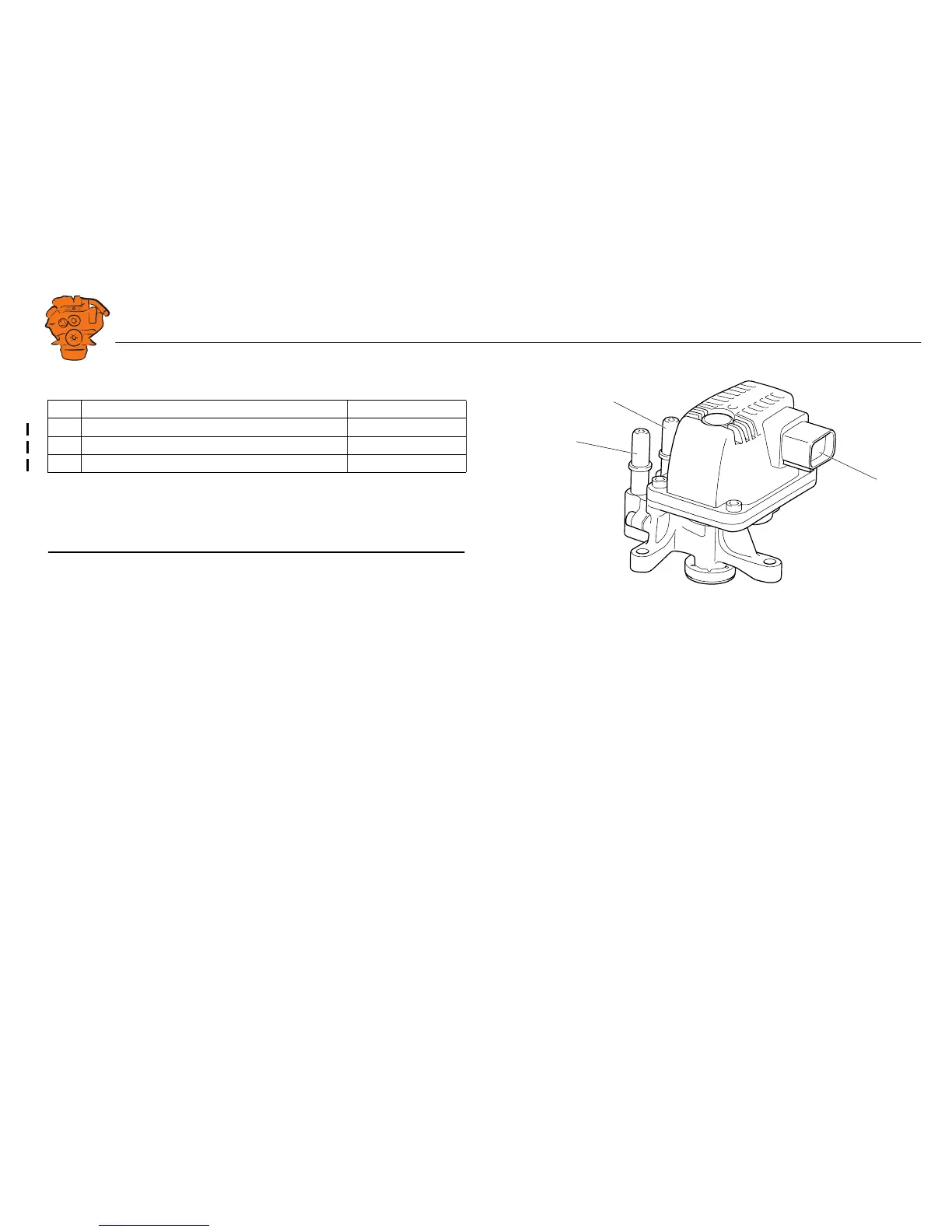

Reductant doser.
