Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 30

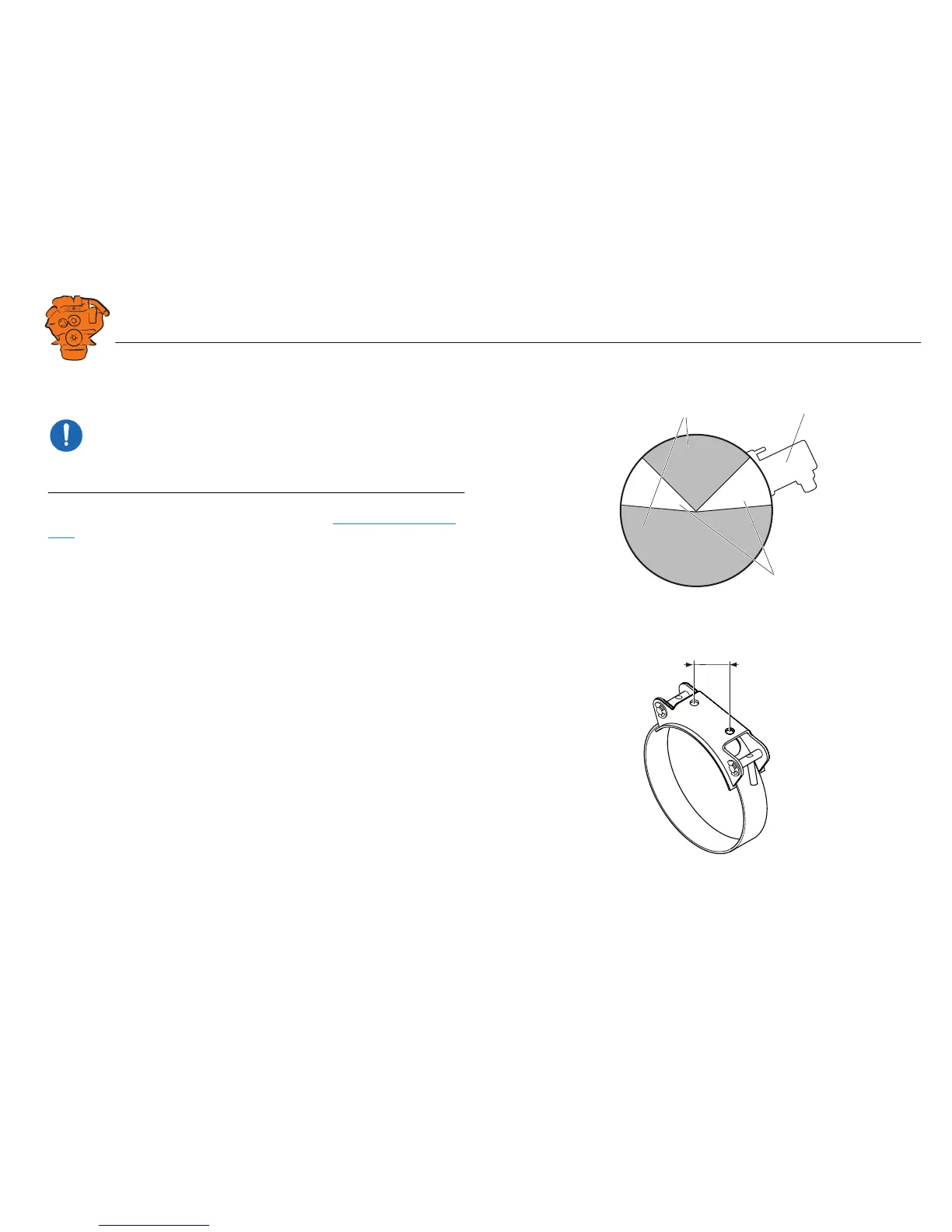

The hydrolysis catalytic converter must be rotated so that the reductant doser (1) is
positioned in area 2.
IMPORTANT!
The hydrolysis catalytic converter must not be rotated so that the reductant doser (1)
is positioned in area 3.
Connection of the reductant doser is described in section Connection of reductant
doser.
Mounting
The hydrolysis catalytic converter is supplied with 1 retaining strap with bracket. The
attachment holes have a diameter of 13 mm. Attach the bracket with flange screw
M12 or a common screw of a suitable length. Use an M12 flange nut if necessary.
Tightening torques
M12 70 Nm
Retaining strap 39 Nm
- 85˚
+ 85˚
- 45˚
+ 45˚
2
1
3
340 439
337 276
80

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
