Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
Components – Stage V
01:07 Issue 17 en-GB 17

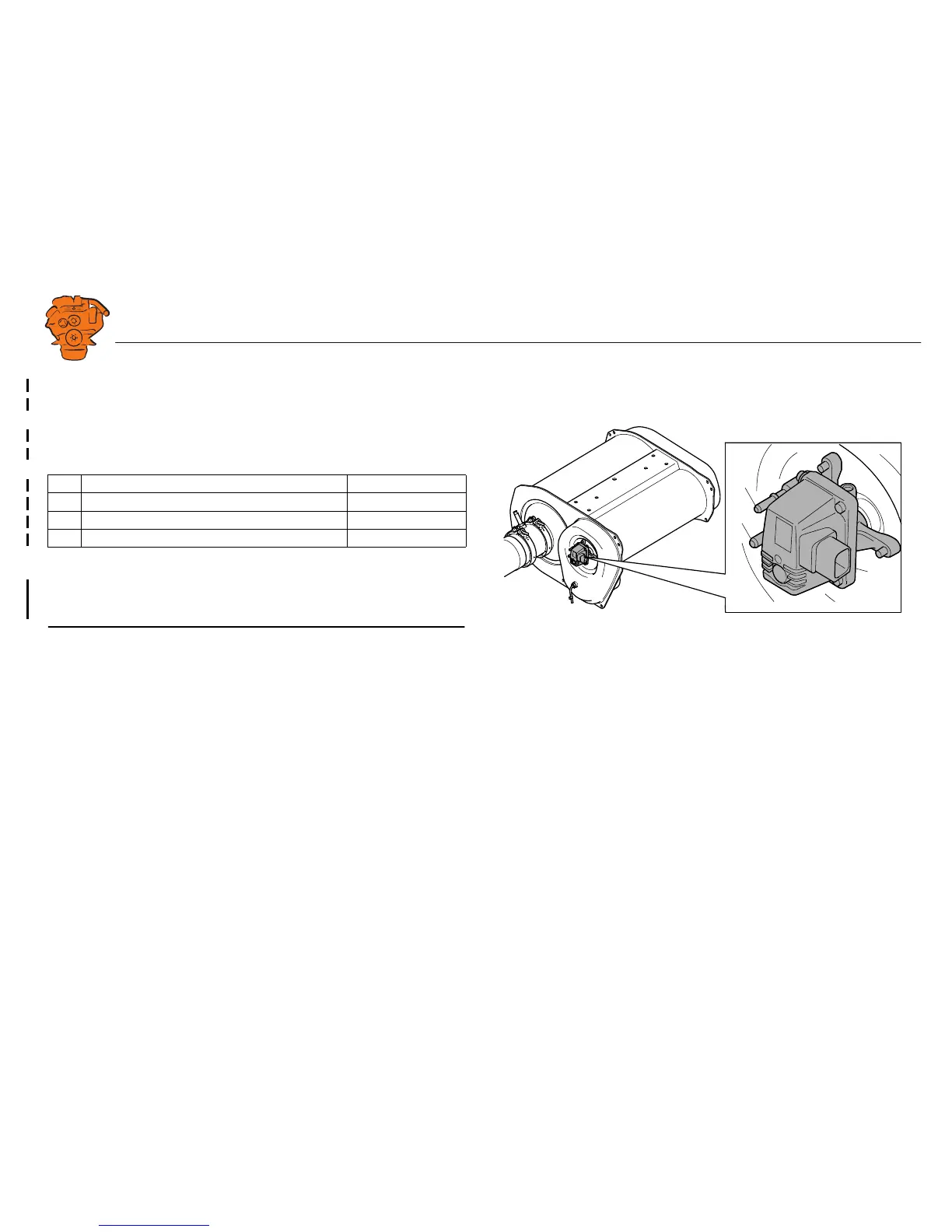

Fitting and connection of reductant doser
The reductant doser is fitted on the evaporator with 3 nuts.
Note:
To ensure sufficient flow, hoses must not have any sharp bends and there must be no
spots where they are at risk of being pinched. The maximum bend radius for the hos-
es is 50 mm.
Tightening torques
Nuts M6 10 Nm
Connection Remark
1. Reductant pressure pipe. Ø 8 mm
2. Reductant return pipe. Ø 10 mm
3. Electrical cable to reductant tank. V117
1
2
3
399 088

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
