Scania DC16 Installation Manual

INSTALLATION
MANUAL
© Scania CV AB 2018, Sweden
System overview – Stage IV/Tier 4f and Stage III B/Tier 4i
01:07 Issue 17 en-GB 24

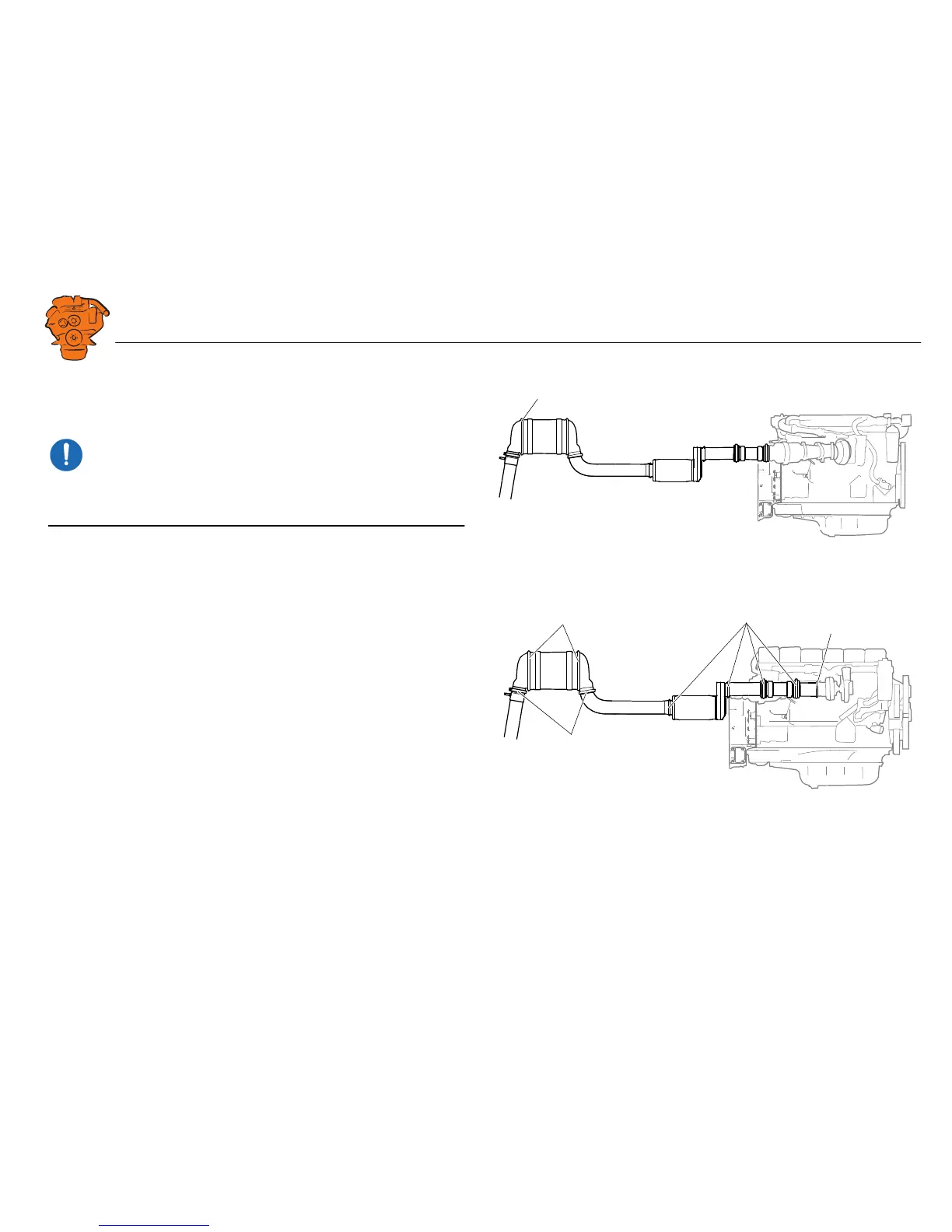

Tightening torque for V-clamps
The tightening torques for the V-clamps in the SCR system are indicated in the illus-
trations to the right.
IMPORTANT!
Scania recommends that the V-clamps in the SCR system are retightened after the
engine has reached operating temperature for the first time. Carry out the retighten-
ing when the engine has cooled down again.
1
393 941
Stage IV/Tier 4f.
1. 22 Nm.
Other V-clamps: 20 Nm.
1
1
2
3
393 943
Stage III B/Tier 4i.
1. 20 Nm.
2. 22 Nm.
3. 10 Nm.

Scania DC16 Specifications

General

Engine Type	Diesel
Displacement	16.4 liters
Fuel Type	Diesel
Configuration	V8
Bore x Stroke	130 mm x 154 mm
Compression Ratio	17.3:1
Fuel System	Common rail
Aspiration	Turbocharged
Turbocharger	Yes
Aftertreatment	SCR
Cooling System	Liquid-cooled
Weight	Approximately 1350 kg (dry weight)
Power Output	up to 770 hp
