Safety Switch
Checks
Safety Switch Check SA GBP 201 [38602; 25.02.2011]
Tension Device
Checks
Tension Device Checks [17964; 19.03.2009]
No Step
8

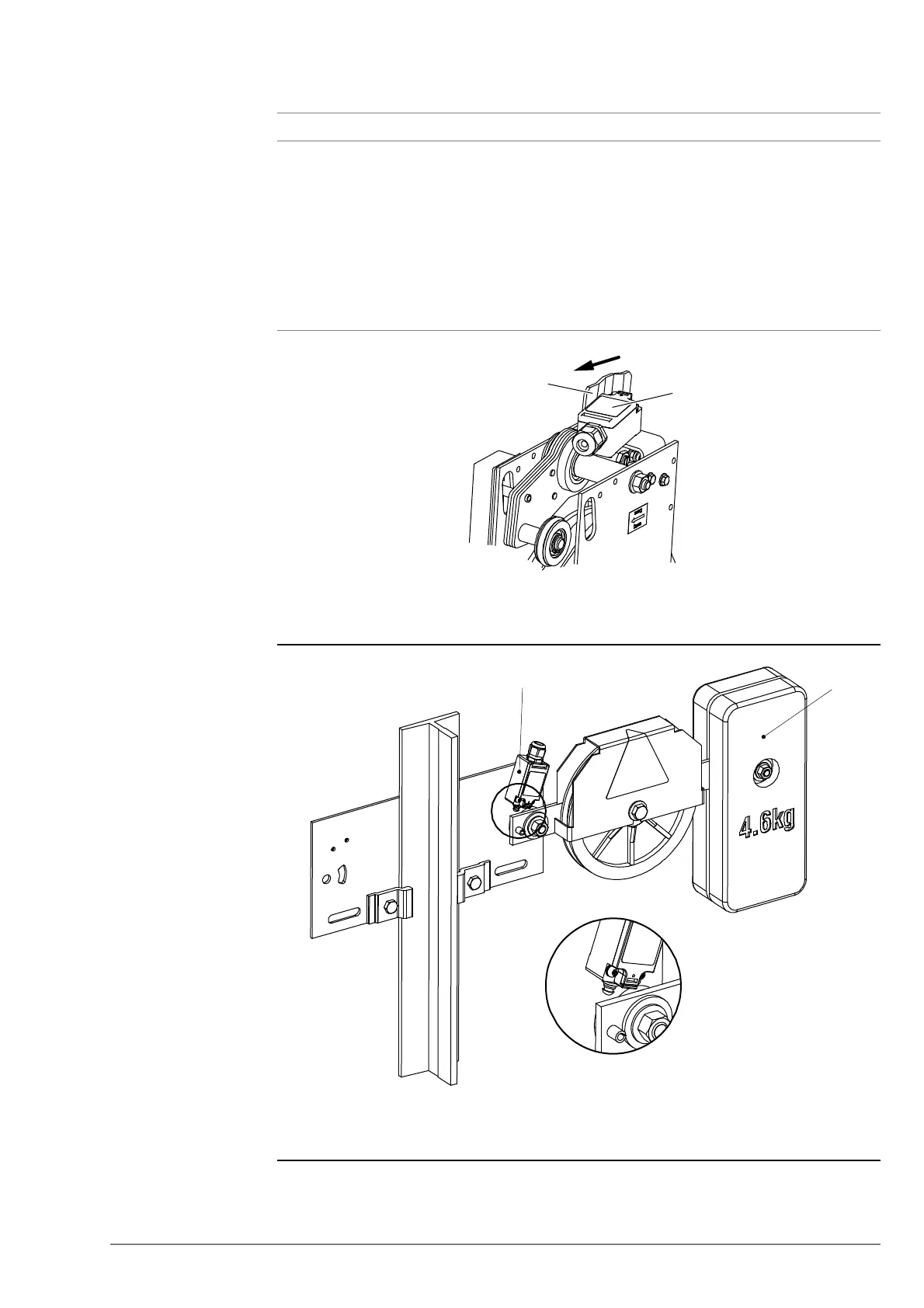

Electrical check of safety switch KBV (2)
– Input car call at controller cabinet.
Caution: Contacts will be bridged with the “Recall control”.
– Turn the contact plate (1) until the safety switch (2) trips.
– Car stops: Safety switch OK
– Car does not stop: Find and correct error in safety switch or peripheral
equipment. Repeat test.
– Return contact plate (1) to stand-by position, reset safety switch.
1 Contact plate
2 Safety switch
1
2
1 Slack rope switch (KSSBV / KSSBVG)
2 Weight block
