4.13 Safety Gears
4.13.1 Safety Gear SA GED
4.13.1.1 Overview Information
Component Title
Safety gear
Type SA GED
Description The progressive safety gears decelerate the elevator car both in the downward and the
upward direction. It can be used either as a double acting safety gear or simply as
protection in downward direction.

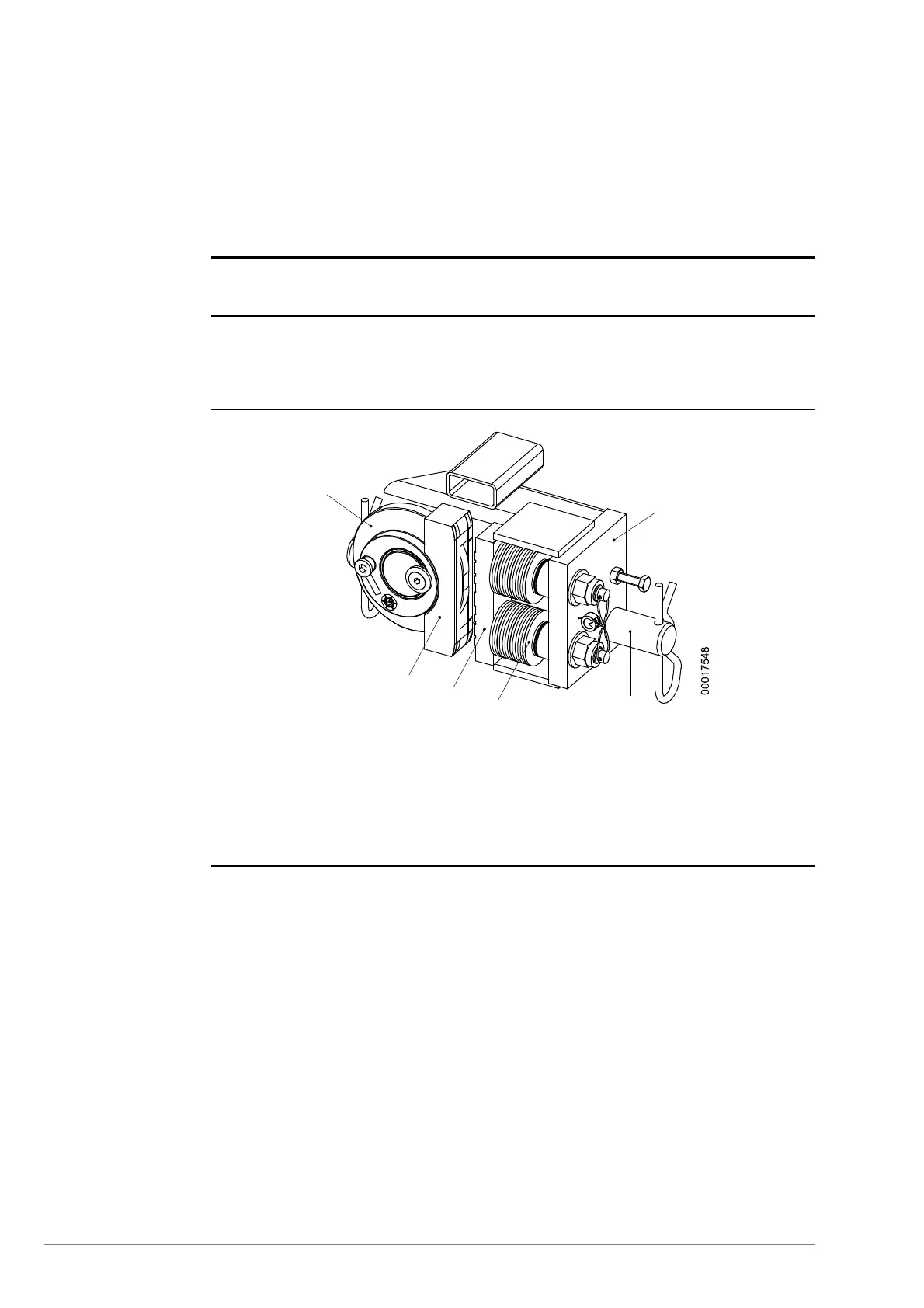

Overview
SA GED Series [26967; 18.08.2008]
1 Safety gear housing
2 Supporting bolt
3Disk springs
4Brake plate
5 Brake shoe
6 Eccentric disk
1
2
5
4
3
6
