4.9.1.5 Buttons Navigation
Buttons Navigation

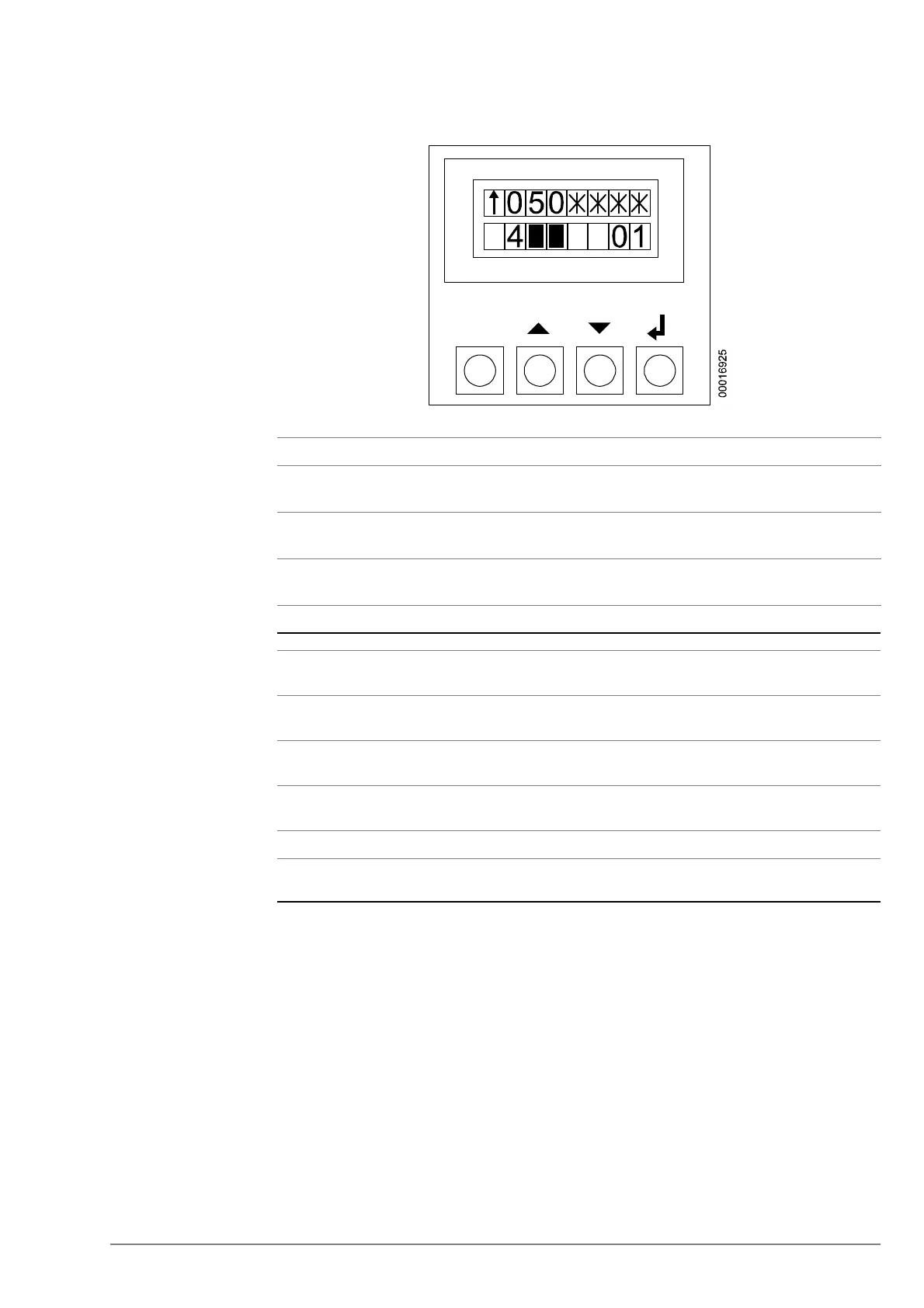

HMI on SMICHMI [23261; 31.08.2007]
Menu Functions
Overview Main Menu
Name Description
ESC
 Go up one level in the menu tree
 Leave menu/item (without saving anything)
UP/DOWN  Navigate up or down within the menu tree
 Increase or decrease the displayed value
OK (RETURN, ENTER)  Go down one level in the menu tree
 Confirm the entered value
ESC
OK
Main
Menu
Menu Function Main
Menu
Menu Function
10
Special commands such as Reset,
Learning Travel, Car Calls, etc.
50 Diagnostics, error log
20 Automatic (Assisted) acceptance
tests
60 Statistics
30 Status, system info 70 ACVF monitoring (Biodyn xx C
BR, Vacon NXP)
40 Configuration
