4.14.4 Hoistway Door Lock - Sematic
4.14.4.1 Overview Information
Component Title
Hoistway door
Type H153ABVX and H153ACTX/H153ABWX

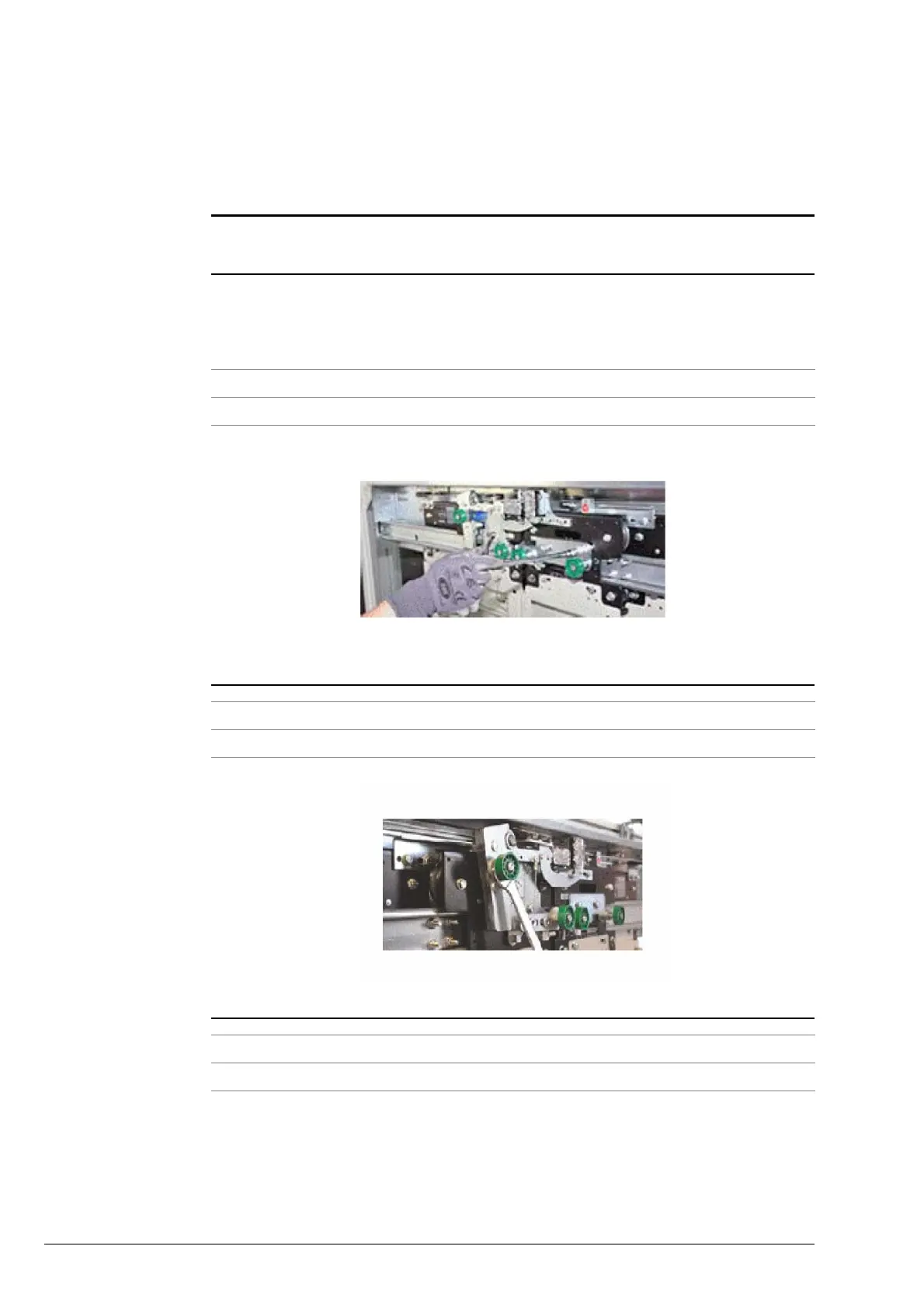

4.14.4.2 Template Instructions
Follow the instructions below, to have a correct coupling between landing door
and car door.
[49424; 29.11.2013]
[49425; 29.11.2013]
No Step
1 Loosen all the screws of the slave and the lock.
No Step
2 Loosen the nut of the rear roller of the master.
No Step
3 Couple the slave with the skate.
