4.12.2 Sematic 2000 C-MOD
4.12.2.1 Overview Information
Component Title
Car door
Type Sematic
Description Sematic car door
Overview

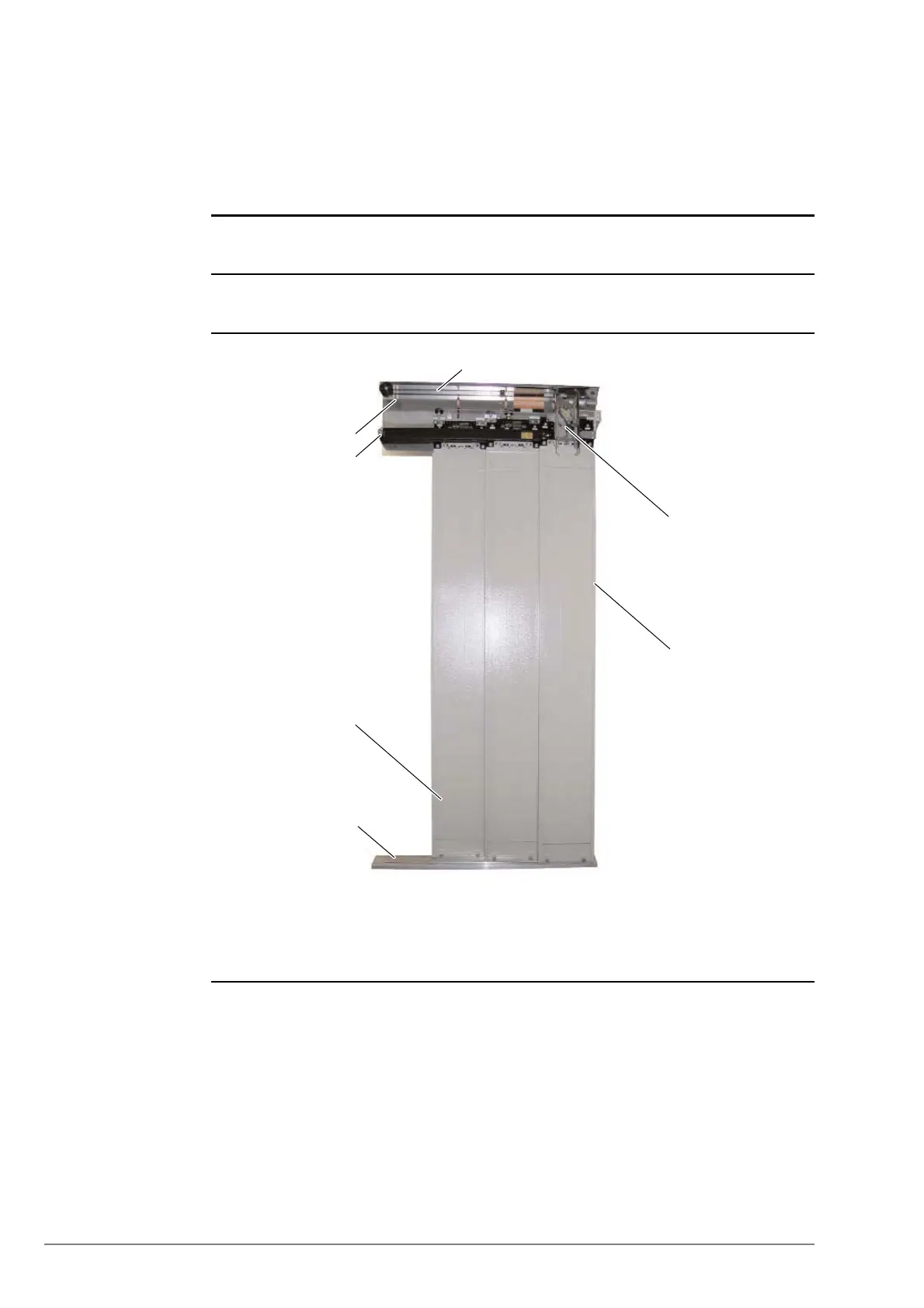

Sematic Car Door (T3 version shown) [43350; 01.05.2012]
1 Sill
2 Door panel
3 Carrier rollers
4 Header
5Belt
6 Clutch / car door lock /
emergency release mechanism
7 Closing edge
1
2
3
4
5
6
7
