Schindler 3300 - Maintenance Checks

Schindler 3100/3300/6300 J 43402603 / 01 224/269
Copyright © 2017 INVENTIO AG
4.12.4.3 Maintenance Checks
KTC Switch

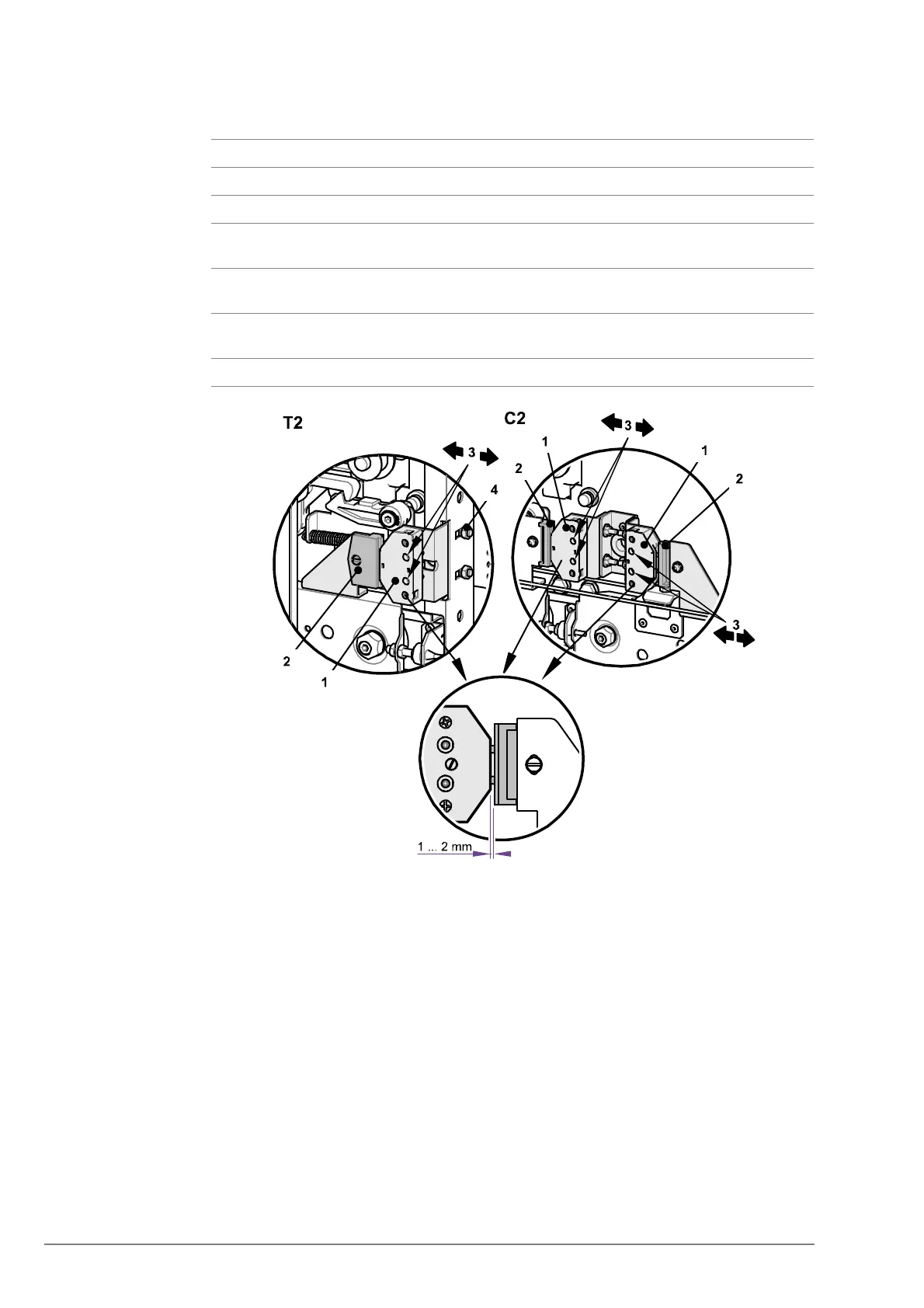

Function Check of the KTC Switch for T2-EU and C2-EU/AP [14123; 09.07.2013]
No Step
1
Open and close the car door by using the VF5+/VF7 for DO FEP control.
2 The KTC bridge (2) must correctly fit into the KTC switch (1).
3 If the KTC bridge (2) does not fit correctly, loosen the two nuts (4) and move
the KTC switch (1) to the correct position.
4 Check the function of the KTC switch (1). The KTC bridge (2) must penetrate
at least 2 mm (for DO FEP) into the KTC switch (1).
5 If the gap of 2 mm (for DO FEP) is not reached, loosen the fastening bolts (3)
and move the KTC switch (1) to the correct position.
6 If necessary, clean the contacts of the KTC bridge (2) using a lint free cloth.
1KTC switch
2KTC bridge
3 Fastening bolt
4Nut
