4.9.1.2 Bionic 7 Bus System
If BIC 7, Bus
Systems

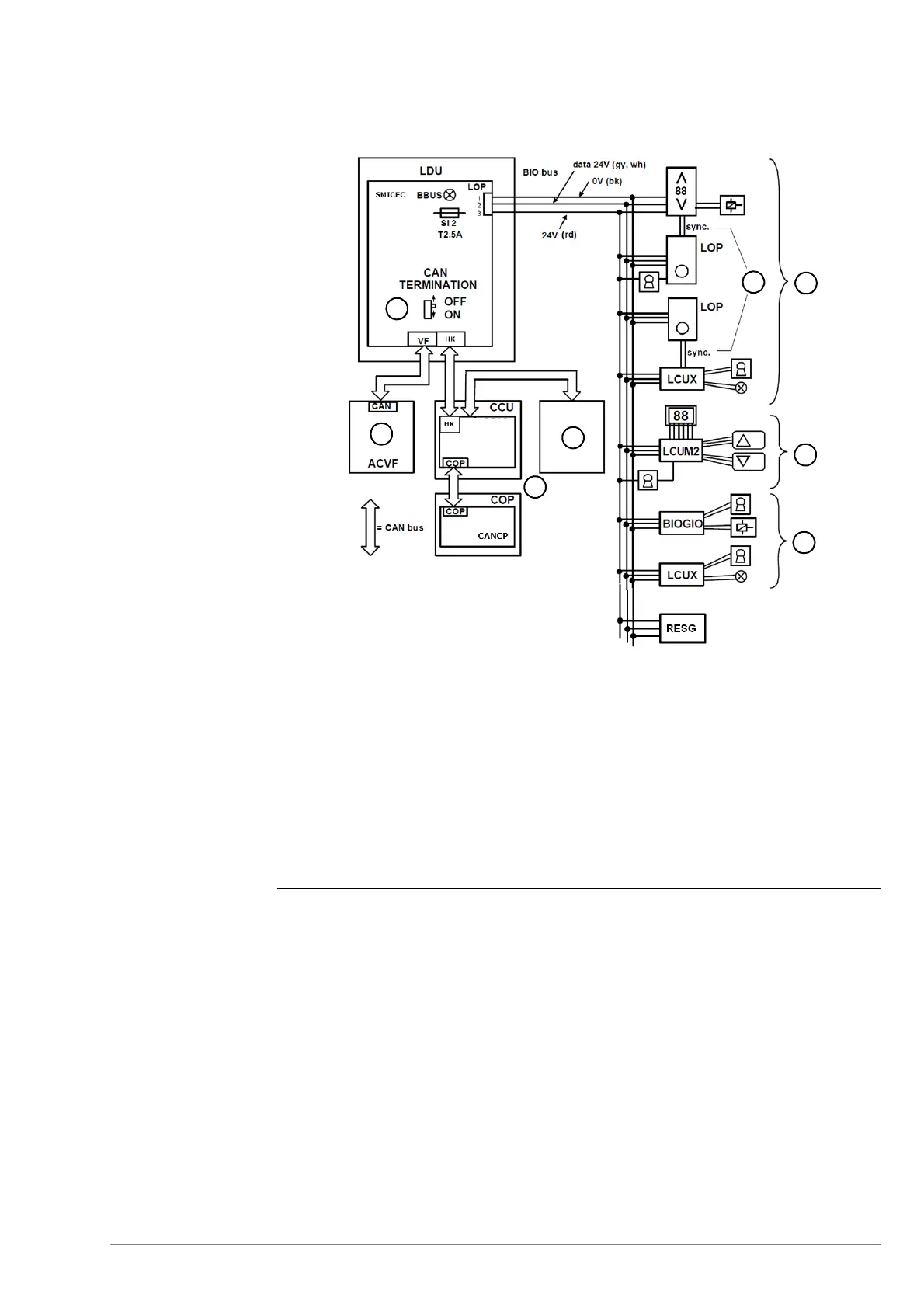

Bus System [604639_007; 27.08.2017]
1 CAN bus termination switch on SMICFC
Default position: "OFF". (ACVF and CCU connected
If CCU is not connected, disconnect the travelling cable and set the switch to
"ON". (Bus termination on SMICFC, for example during installation travel mode)
2 CAN bus is terminated automatically in the ACVF
3 CAN bus is terminated automatically on SDIC7x
4 Default fixtures for Bionic 7 (FI GS LOP/LIP/COP with CANCP)
5 Biobus Extension (LCU2 and LCUM2 interfaces)
6 Building interface BIOGIO and machine room located LCUX
7 Synchronization cable XCF is required only in case of LCU teaching
8Varidor V15
LIP
8
4
5
6
7
3
2
1
SDIC7x
