Schindler 3300 - Hoistway Door Lock - Wittur EVO; Maintenance Check and Adjustment; Overview Information

Schindler 3100/3300/6300 J 43402603 / 01 243/269
Copyright © 2017 INVENTIO AG
4.14.2 Hoistway Door Lock - Wittur EVO
4.14.2.1 Overview Information
Component Title
Hoistway door ATV 616/617
Type Wittur EVO
Description Wittur EVO hoistway door system
4.14.2.2 Maintenance Check and Adjustment
Lock Type C2

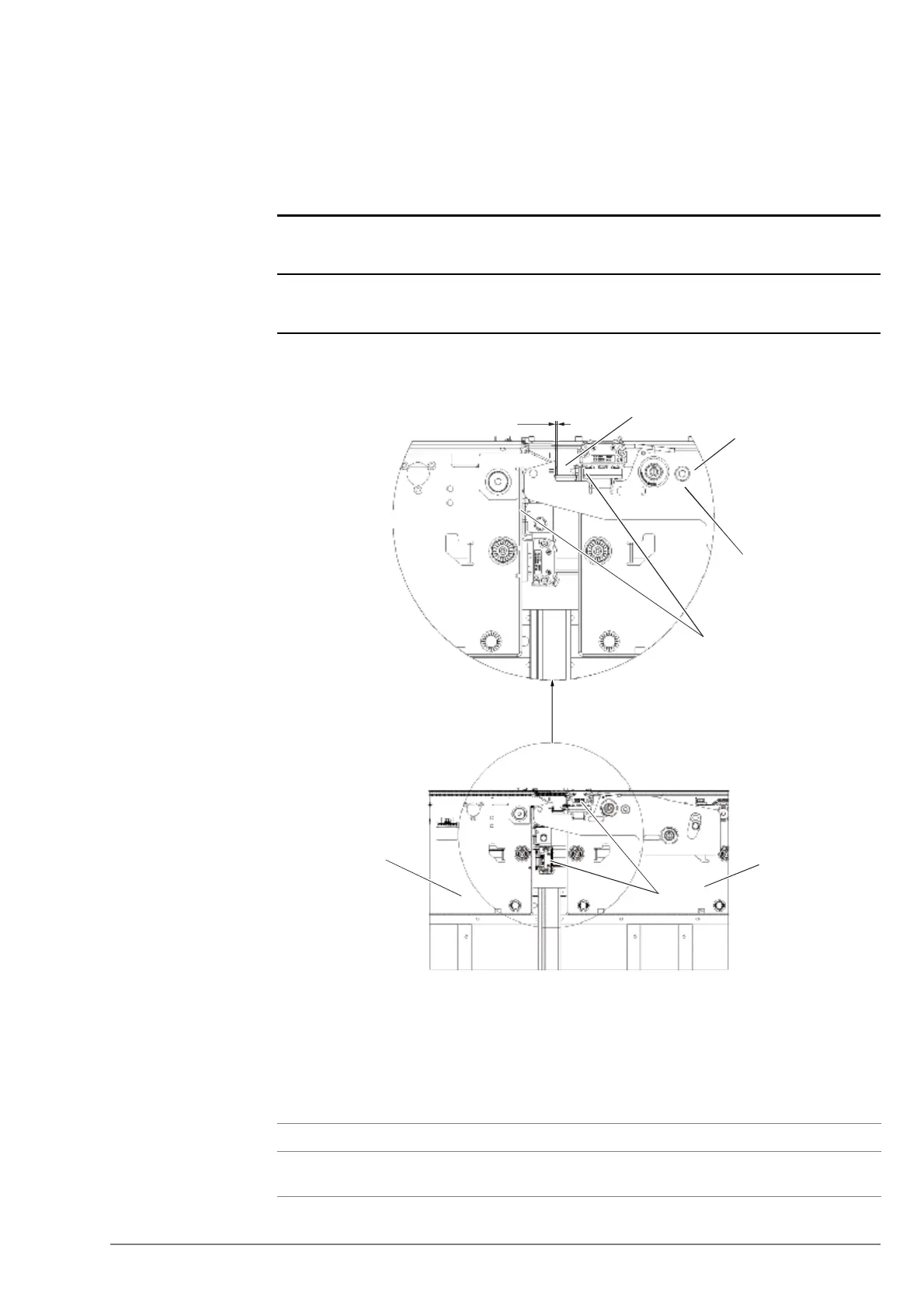

Lock Type C2: Hangers in Closed Position [43402603_002; 16.02.2016]
1 Hanger
2Buffer
3 Door contact
4 Hook lock
5 Counter lock
6 Lock fixing bolt
No Step
1
Close the door fully so that the hangers (1) are against the buffers (2). Check
the lock function.
1
3
1
5
6
4
2
1.2 ... 3
