Diagnosis via
ErrorLog (SMLCD)
The Varidor 15 error range is 800 ... 899.
Error Log (SMLCD)
The door controller indicates a door error via SMLCD. The door errors are directly
forwarded to the lift error log.
Setting Closing
Force Limiter
5 Error 837 Lock Pos Failure according to error handling
specs
6 Error 832 KET-S2-Failure according to error handling specs
7 Data collection closing direction failed
8 Current control parameters too low (< 0)
9 Position control parameters too low (< 0)
10 Open position too small (< 300 mm + closed position) or
KET-S2 position too small
11 Motor polarity detection changed the polarity more than
once
12 Door mass too low (< 10 kg)
13 Door closing spring constant out of range < -30 N/m or
>200 N/m
13 Not allowed landing door configuration due to too high
closing spring constant (> 15 N/m) with door mass > 120 kg

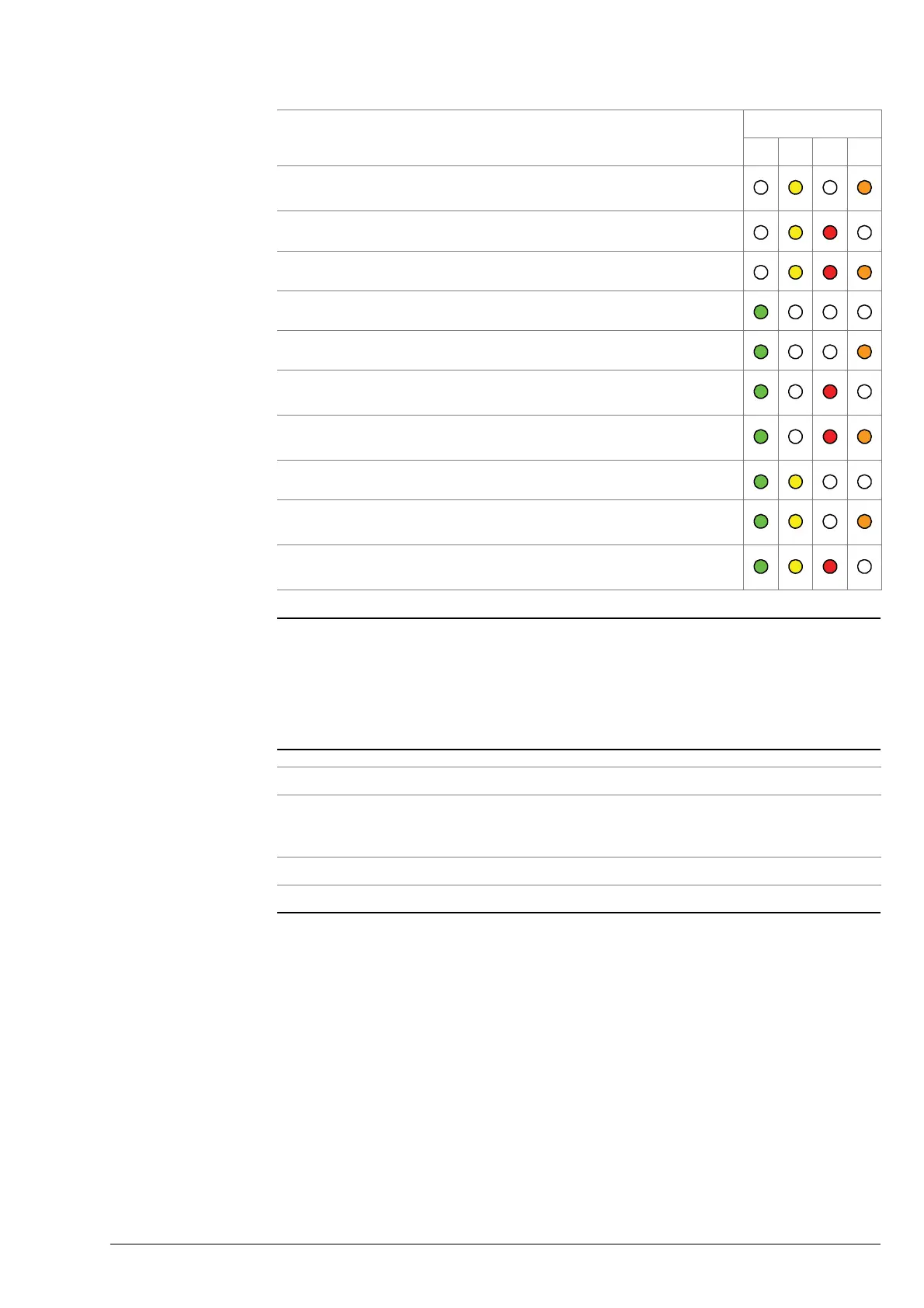

No Description LED
8421
No Step
1
Check the closing force with elevator in normal operation. The closing force
must be checked in the rate speed range and if it does not exceed 150 N, no
setting is required.
2 If closing force is
> 150 N, repeat AutoSetup.
