Schindler 3300 - Page 231

Schindler 3100/3300/6300 J 43402603 / 01 231/269
Copyright © 2017 INVENTIO AG
Belt and Motor
Pulley T2

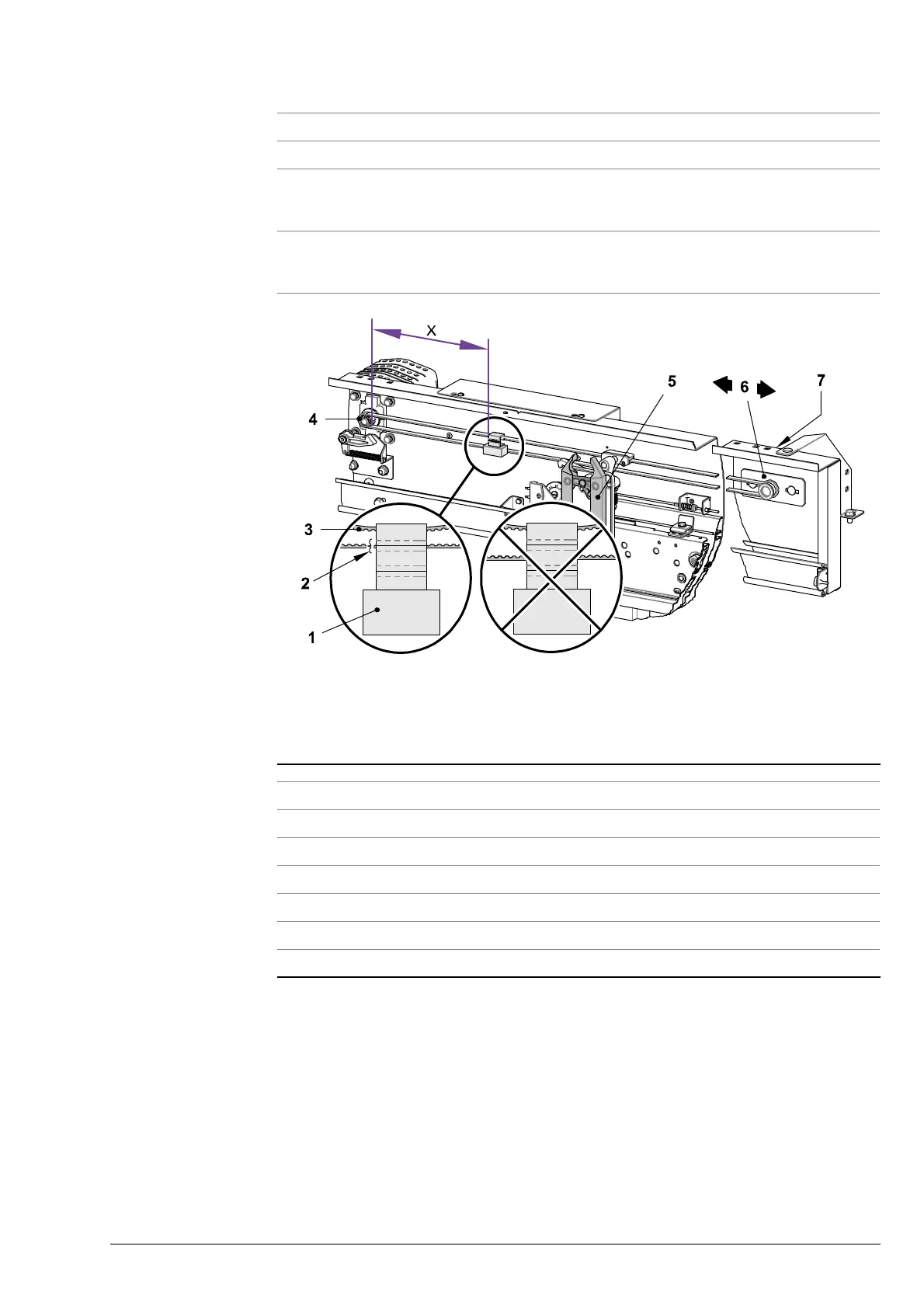

Belt Tension Check and Adjustment for T2-EU/NA [16213; 13.07.2011]
Dimension X
No Step
1
Open the car door.
2 Put the belt tension tool (1) on the belt (3) in position, see the table below. The
measure "X" must be taken between the belt tension tool (1) and the motor
pulley (4).
3 Check the belt tension and adjust it if necessary by moving the pulley (6). The
belt tension is correctly adjusted when the belt (3) is positioned in the area (2)
defined by the pulley (6).
1 Belt tension tool
2 Area tension is correctly adjusted
3Belt
4 Motor pulley
5Clutch
6 Pulley
7 Nut to fasten the pulley
Type and BKE [mm] Skate Position Panels Positions [mm]
T2-EU and 750 Opened Opened 298
T2-EU and 800 Opened Opened 293
T2-EU and 900 Opened Opened 273
T2-NA and 915 Opened Opened 288
T2-NA and 1067 Opened Opened 258
