Schindler 3300 - Page 236

Schindler 3100/3300/6300 J 43402603 / 01 236/269
Copyright © 2017 INVENTIO AG

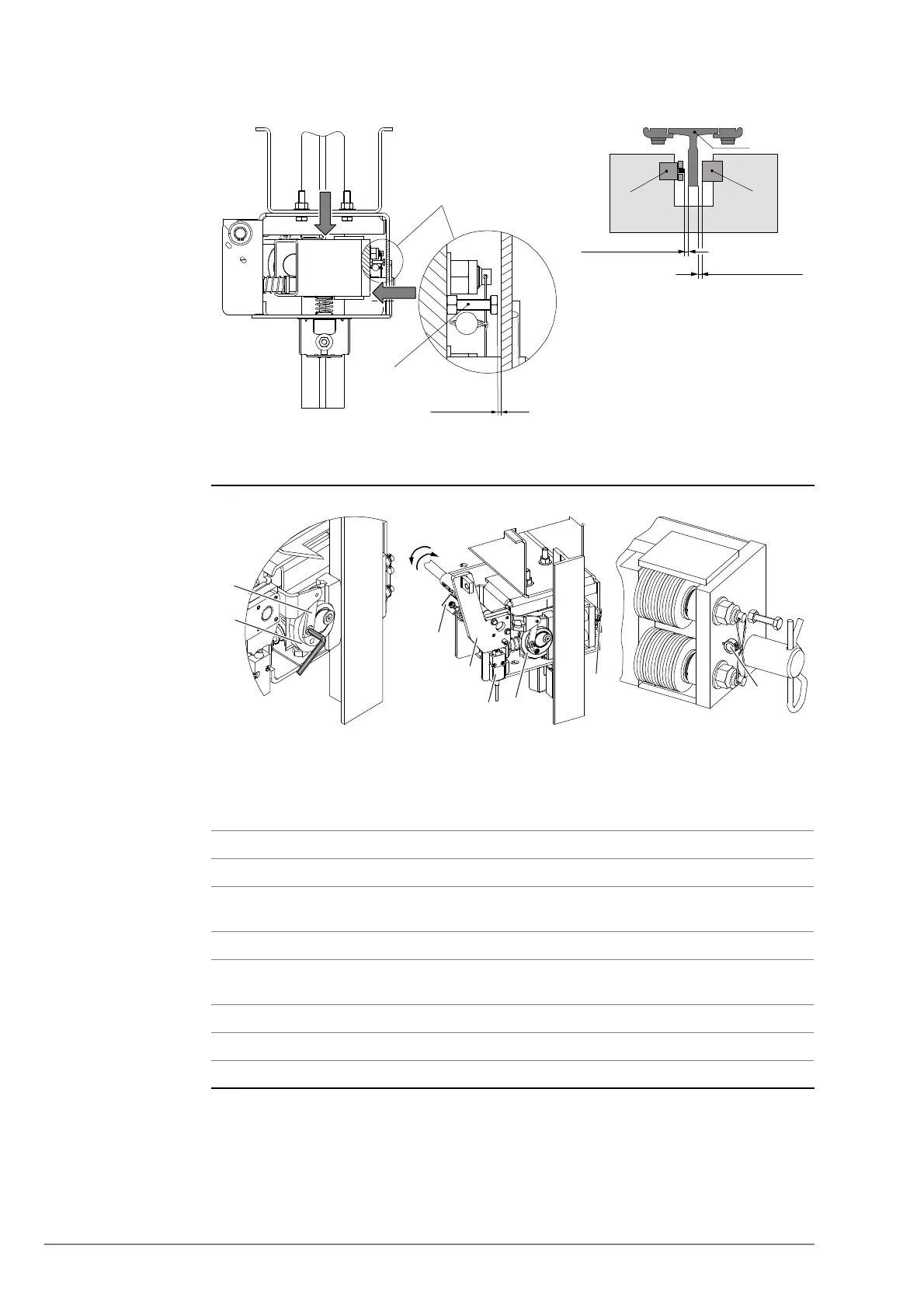

Check of Interface,
Actuation and Seal /
Wire
Horizontal/Vertical Mobility of the Safety Gear [27202;
28.07.2010]
1Setting screw
Running Clearance of the Safety
Gear [15358; 18.11.2009]
1Brake plate
2Guide rail
3 Eccentric disk
A
x = 2 mm
1
s
2
= 2.0 mm
s
1
= 2.0 mm
1
2
3
1 Connection lever
2 Eccentric disk
3 Eccentric disk
4 Safety switch
5 Governor lever
6 Reset unit
7 Seal and wire
7 Seal and wire
No Step
3 Check the fastening of the connection lever (1) on the eccentric disk (2).
4 Check whether the eccentric disk (3) can be brought in contact with the guide
rail by moving the governor lever (5).
5 Check the safety switch (4) for damage and replace if necessary.
6 Check whether the reset unit (6) can hold the governor lever (5) in its initial
position.
7 Check the seal and wire for completeness.
8 Check fixation of rope coupling for governor lever (5).
1
2
3
4
5
6
7
7
