Schindler 3100/3300/6300 J 43402603 / 01 246/269
Copyright © 2017 INVENTIO AG
Position of the
Coupler between the
Landing Lock
Rollers

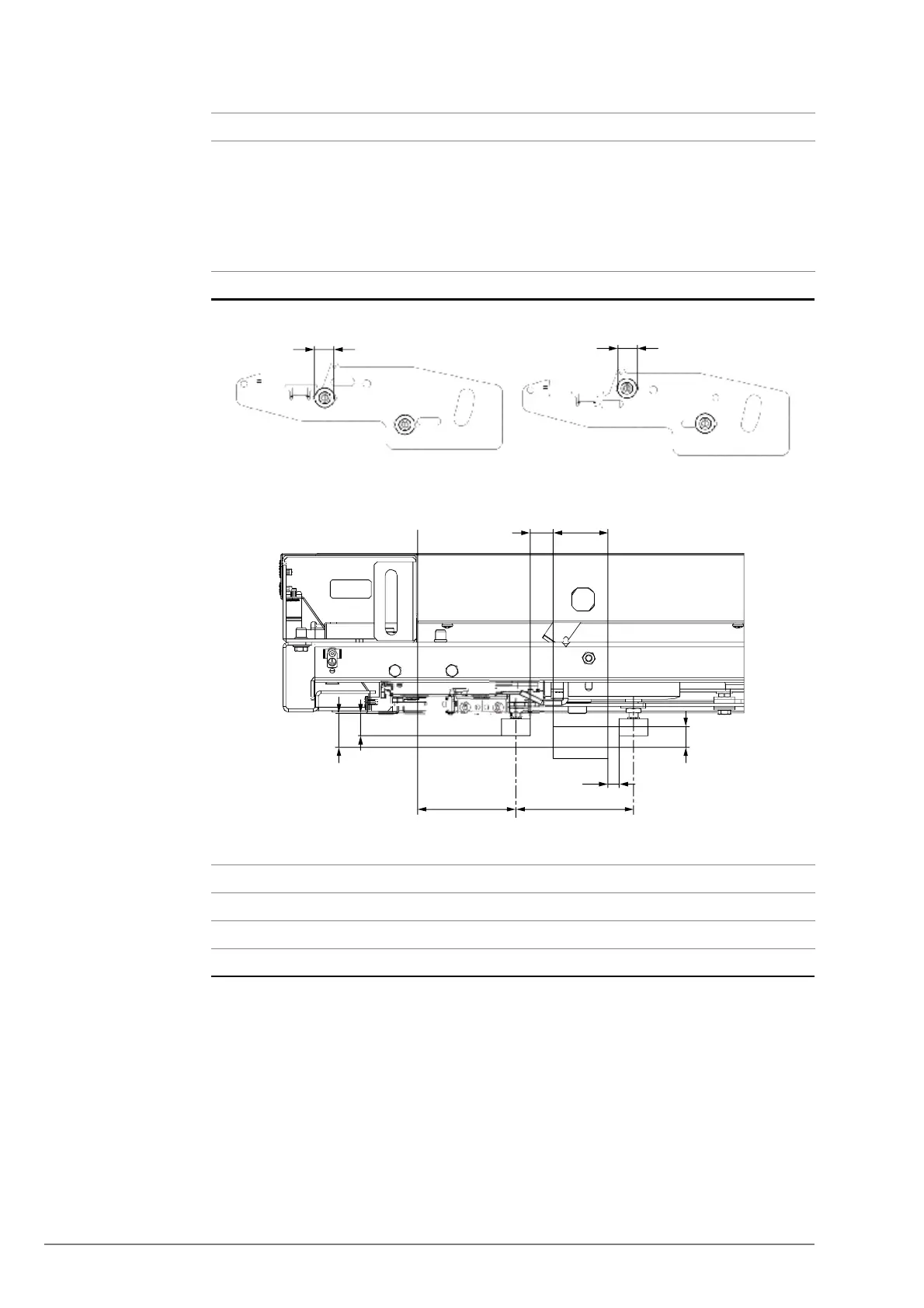

Coupler Position between Landing Lock Rollers [43402603_005; 16.02.2016]
No Step
1
With a 5 mm allen key, loosen the screws (1) and set the alignment of the lock
rollers (2), starting from the lowest level, as the car is operated upwards.
Using a CH 13 spanner, loosen the screws (3) and set the roller position with
screw driver.
Note: Move the lock rollers unit and position it as shown.
Check the clearance between the lock rollers and the car sill is sufficient to
provide runby.
Door Type A D E F
Landing Door C2
17.5 106 45 100.5
Landing Door T2 22.5 86 25 105.5
