– Exit the top of car
– Release the top of car stop switch (JHC) only after having exited the car roof
– Close the landing door giving access to the top of car.
Step 2 Preparation for Entering Shaft Pit
Inspection
Operation in Pit with
TSD21
Pit Inspection Panel RESG [604620_036; 23.08.2017]
– Maintenance person goes to the lowest floor whose landing door gives access to the
pit, then open the landing door with a triangular key
– Press JHSG1 on Pit Box close to the landing door
– Enter the pit, if necessary with the help of the pit ladder.
Step 3 Activation and Operation of Pit Inspection Mode
Activation:
– Switch JRESG to “Inspection”
– If necessary, return the pit ladder to its designated location
– Release JHSG1 on Pit Box only if JRESG has been switched to “Inspection”.
Operation:
– Press and hold DRESG_U and DRESG_E to move the car upwards
– Press and hold DRESG_D and DRESG_E to move the car downwards
– Release DRESG_U or DRESG_D or DRESG_E to stop the car movement
– Press JHSG on Pit Inspection Panel to stop the car movement.
Step 4 Deactivating of Pit Inspection Mode
– Press JHSG1
– Switch JRESG to “Normal”
– Open the shaft door and leave the pit, if necessary with the help of the pit ladder
– If necessary, return the pit ladder to its designated location
– Release JHSG1 only after leaving the shaft pit
– Close the shaft door for pit access.

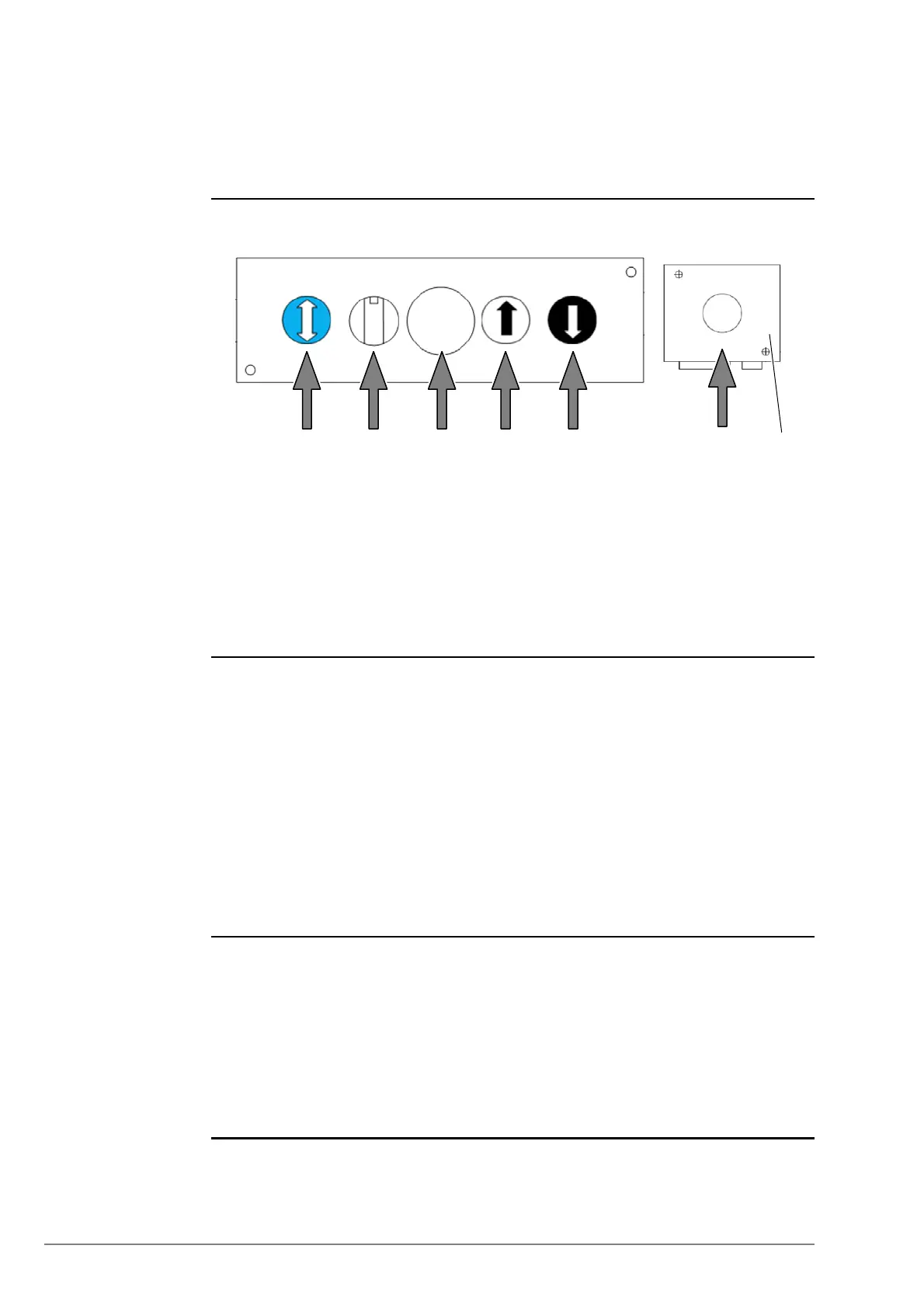

1 Pit box
DRESG_E JRESG JHSG DRESG_U DRESG_D JHSG1 1
STOP
STOP
INSPECTION
NORMAL
JHSG1
