Product Specification
D20980.022 Rev C CV-LS User Manual Page 85
Front Panel Description
The front of the unit is where the manual controls for use by an operator exist. This is also the exit point
for the light, as well as the ventilation direction for air exiting the LED heat sink. These vents should
never be impeded, as it may result in reduced light output.
The nose cone and surrounding area may become hot at high light output. Under certain user settings,
these surfaces may become hot enough to burn the operator. Always handle these surfaces accordingly.

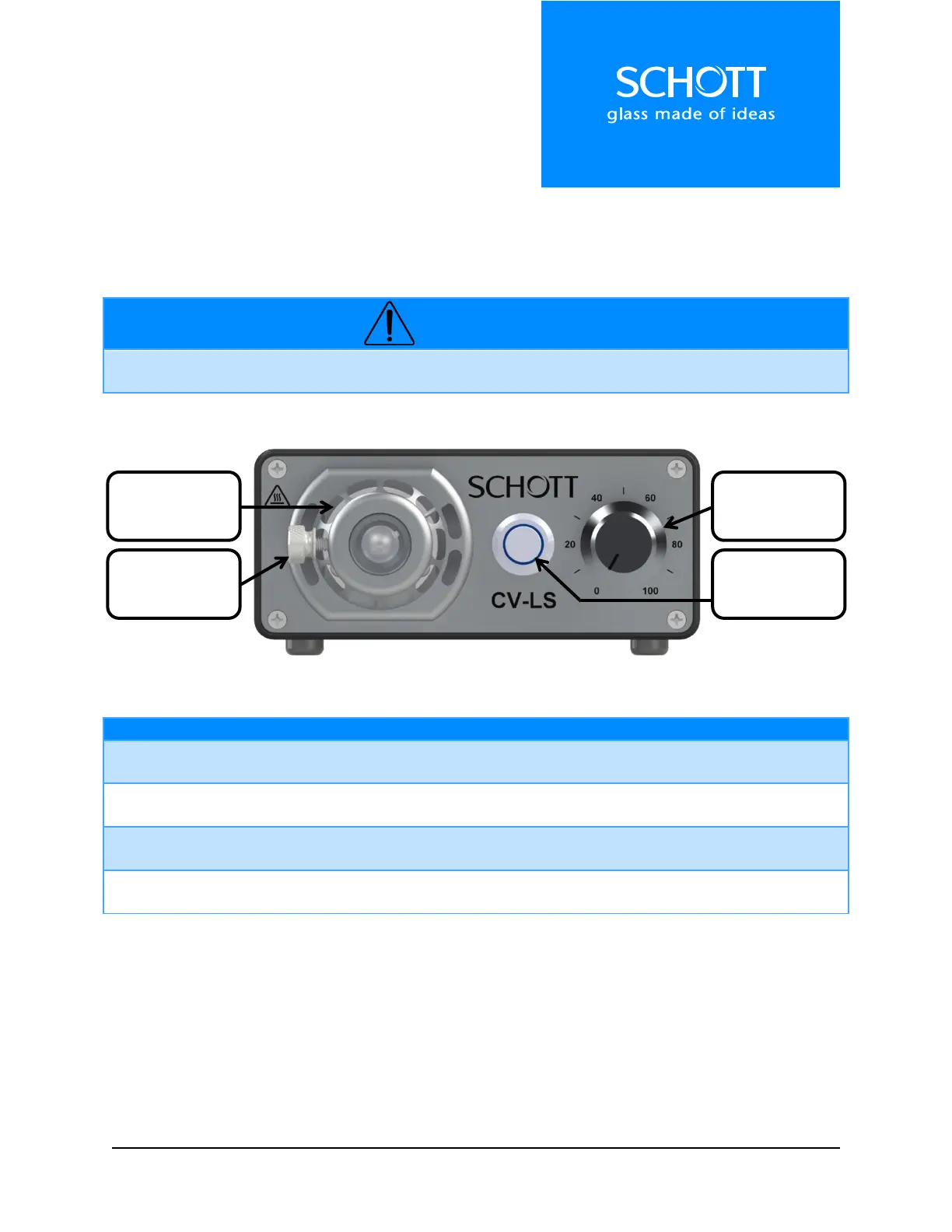

Figure 29: CV-LS Front Panel Description
Heated air from the LED will vent out of these slots. They must remain
unobstructed to maintain full light output.
This thumb screw is used to retain fiber optic cables inserted into the nose cone.
This knob allows for overall adjustment of the LED light output.
This switch can be used to enable/disable the LED on the unit. The LED indicator
ring will turn on when the LED is enabled, or flash if there is an error with the unit.
