System Status
The System Status section shows live information about the unit. Item status is indicated by the
following colors:
Color
Description
Green
Normal Operational Status.
Yellow
Warning range. Unit is still operating normally, but is near the Error threshold.
Red
Error Status. LED will not turn on if any errors exist. Fault output line will pull
low (GND) if any errors exist.
Blue
Information Status.
Grey
Off status.

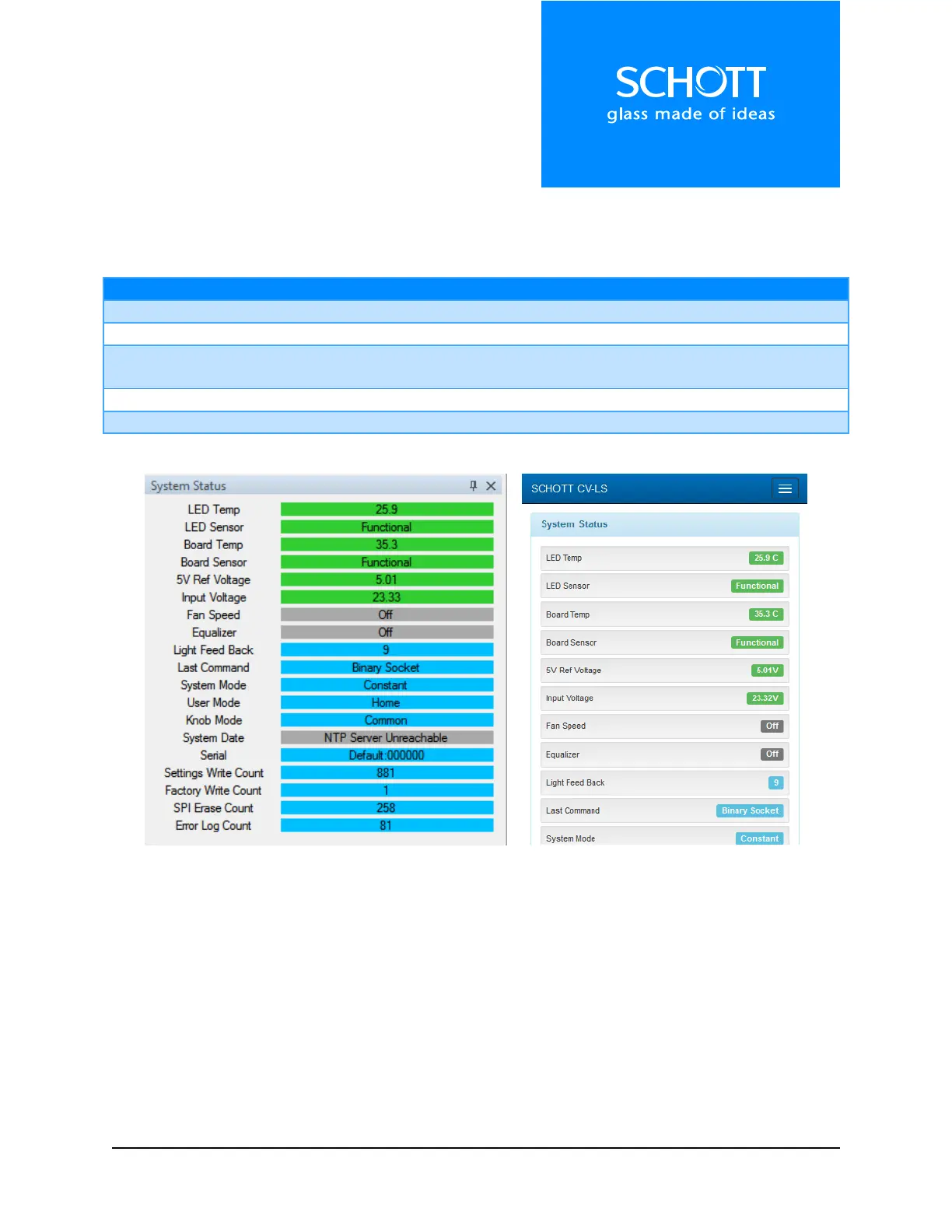

Figure 6: System Status (Left: Dashboard, Right: Web Interface)
