Piping Systems for Hydraulic, Lubrication and Similar SystemsSTD--Wa 07/3110 1099237 17

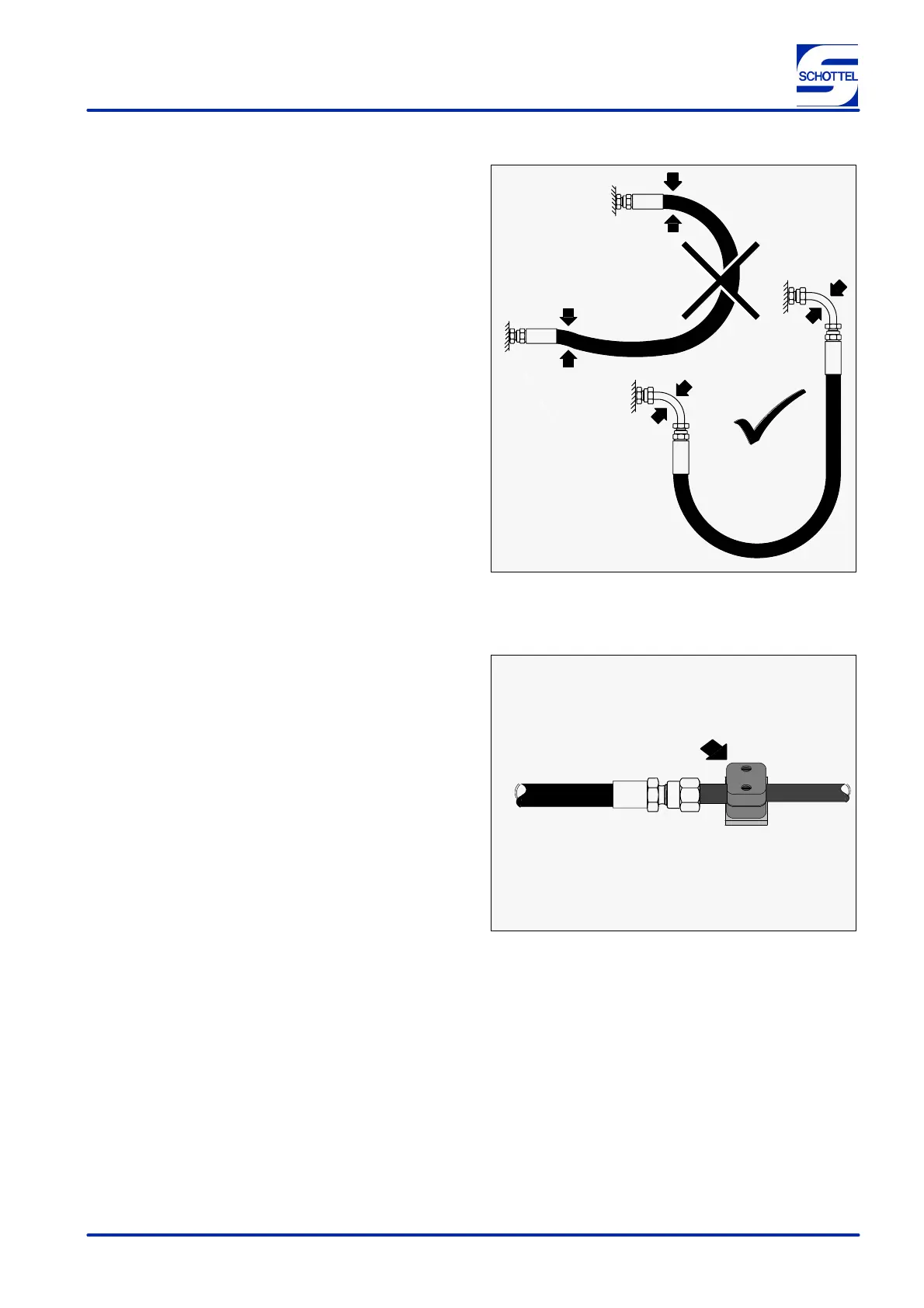

Elbows are to be used also where the arrangement of
the connections do not allow a ”sagging” bend, and with
a ” standing” bend there is the danger of kinking behind
the hose mounting (Figure 11).
Use the required holding devices of the correct size.
The hose must not rub inside the holding device but
also must not be squeezed in.
Use holding devices encompassing the hose.
Figure 11
When connecting a hose end directly with a conduit, it
is required to mount a hose clamp (Figure 12) immedi-
ately after the joint.
Figure 12
