Piping Systems for Hydraulic, Lubrication and Similar SystemsSTD--Wa 07/3110 1099237 17

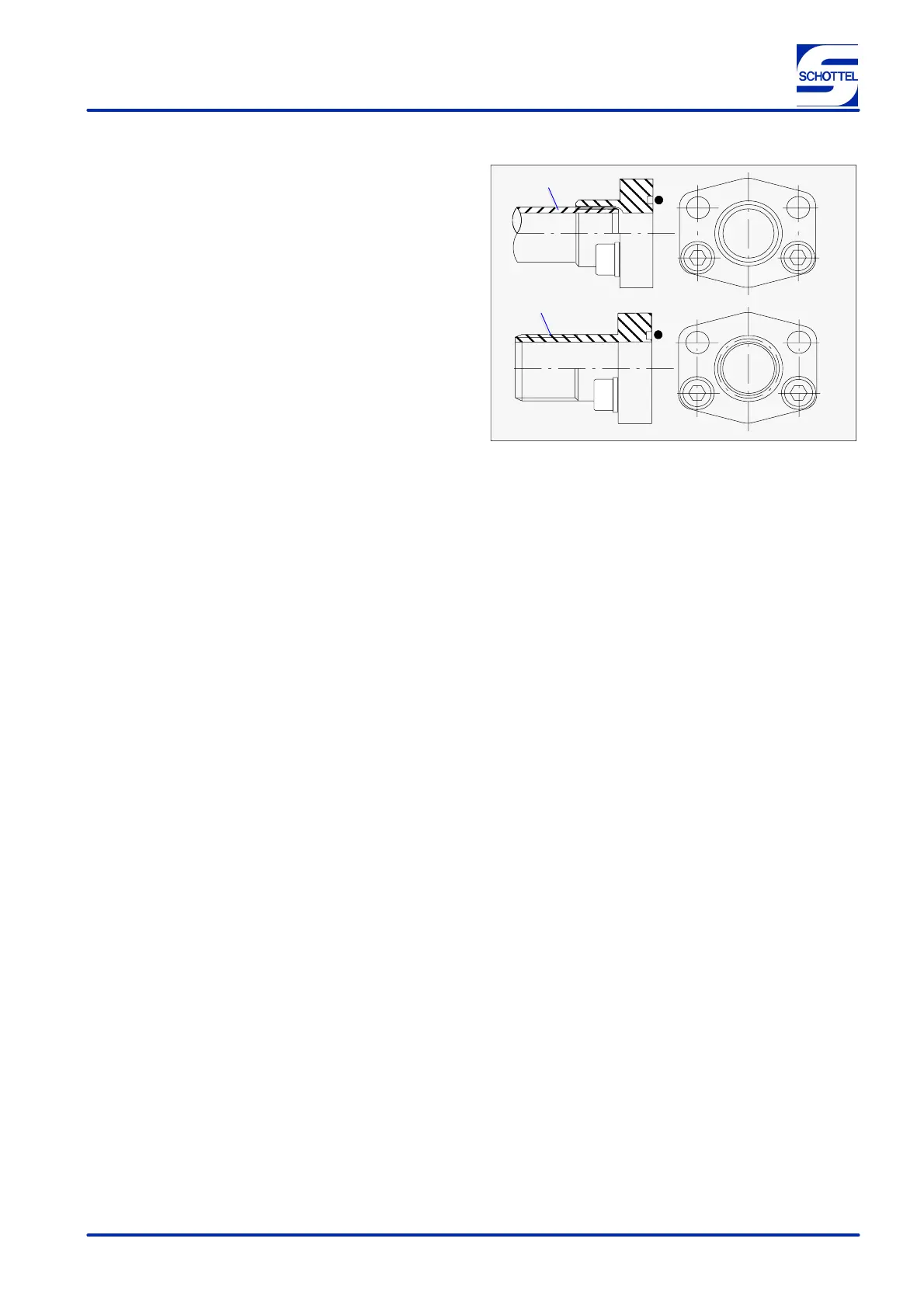

D SAE threaded flange (Figure 21)
In case of the threaded flange, the pipe end is screwed
with Loctite 577 into the flange (21/1), or screwed onto
the outside thread (21/2) of the flange.
Sealing between SAE flange and connecting area is
provided with an O--ring.
2
1
Figure 21
Mounting of the connections is carried out with the sup-
plied screws.
For tightening moment, see mandatory drawing, or
SCHOTTEL Instructions 1099235.
