Assembly
02.00 | GWB | Assembly and Operating Manual | en | 389122
21
Mounting
Zu /
Closed
1
3
4
2
5
6

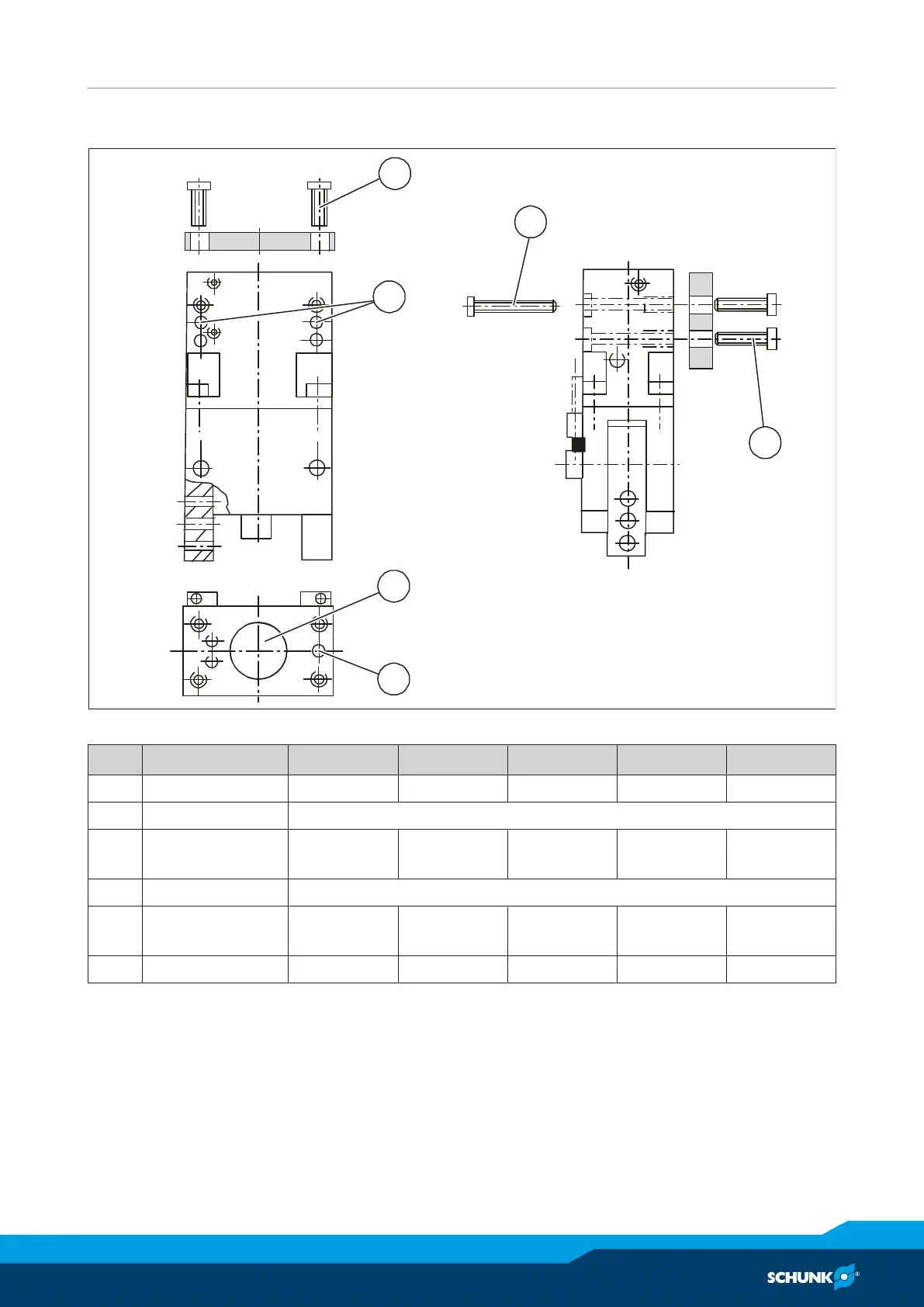

Mounting and centering of the GWB 34 - 80
Item Designation GWB34 GWB44 GWB54 GWB64 GWB80
1 Screw 4x M4 4x M4 4x M5 4x M6 4x M6
2 Cylindrical pin 2 x DIN EN ISO 8734 (accessory pack)
3 Centering
diameter
Ø 10H7 Ø 20H7 Ø 20H7 Ø 25H7 Ø 30H7
4 Cylindrical pin 2 x DIN EN ISO 8734 (accessory pack)
5 Screw - - 2x M4 x 40
DIN 6912
4x M5 x 45
DIN 6912
4x M6 x 55
DIN 6912
6 Screw 2x M4 2x M4 4x M5 4x M6 4x M8
