SCHUNK JGP User Manual

Assembly
22
14.00 | JGP | Assembly and Operating Manual | en | 389157

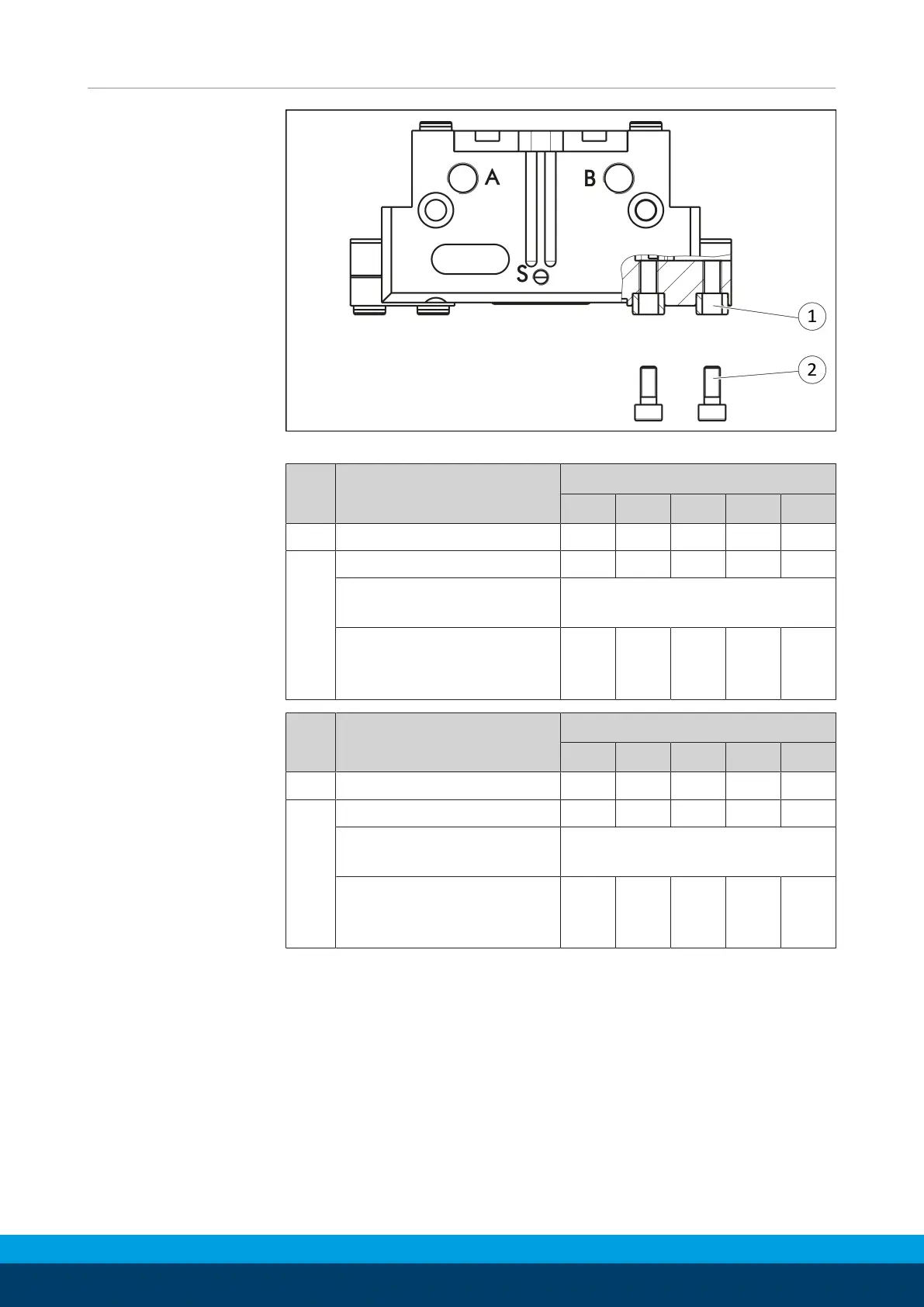

Connections at the
base jaws
Connections at the base jaws
Item Mounting
JGP
40 50 64 80 100
1 Centering sleeve Ø4 Ø5 Ø6 Ø8 Ø10
2 Thread in base jaws M2.5 M3 M4 M5 M6
Mounting screw strength
class
12.9
Max. depth of
engagement from locating
surface [mm]
6.1 8.5 10 10 14
Item Mounting
JGP
125 160 200 240 300
1 Centering sleeve Ø10 Ø14 Ø16 Ø16 Ø22
2 Thread in base jaws M6 M10 M12 M12 M16
Mounting screw strength
class
12.9
Max. depth of
engagement from locating
surface [mm]
13 17 17 21 28
