SCHUNK JGP - Assembly with assembly device

Maintenance
50
14.00 | JGP | Assembly and Operating Manual | en | 389157
7.4.2.2 Assembly with assembly device

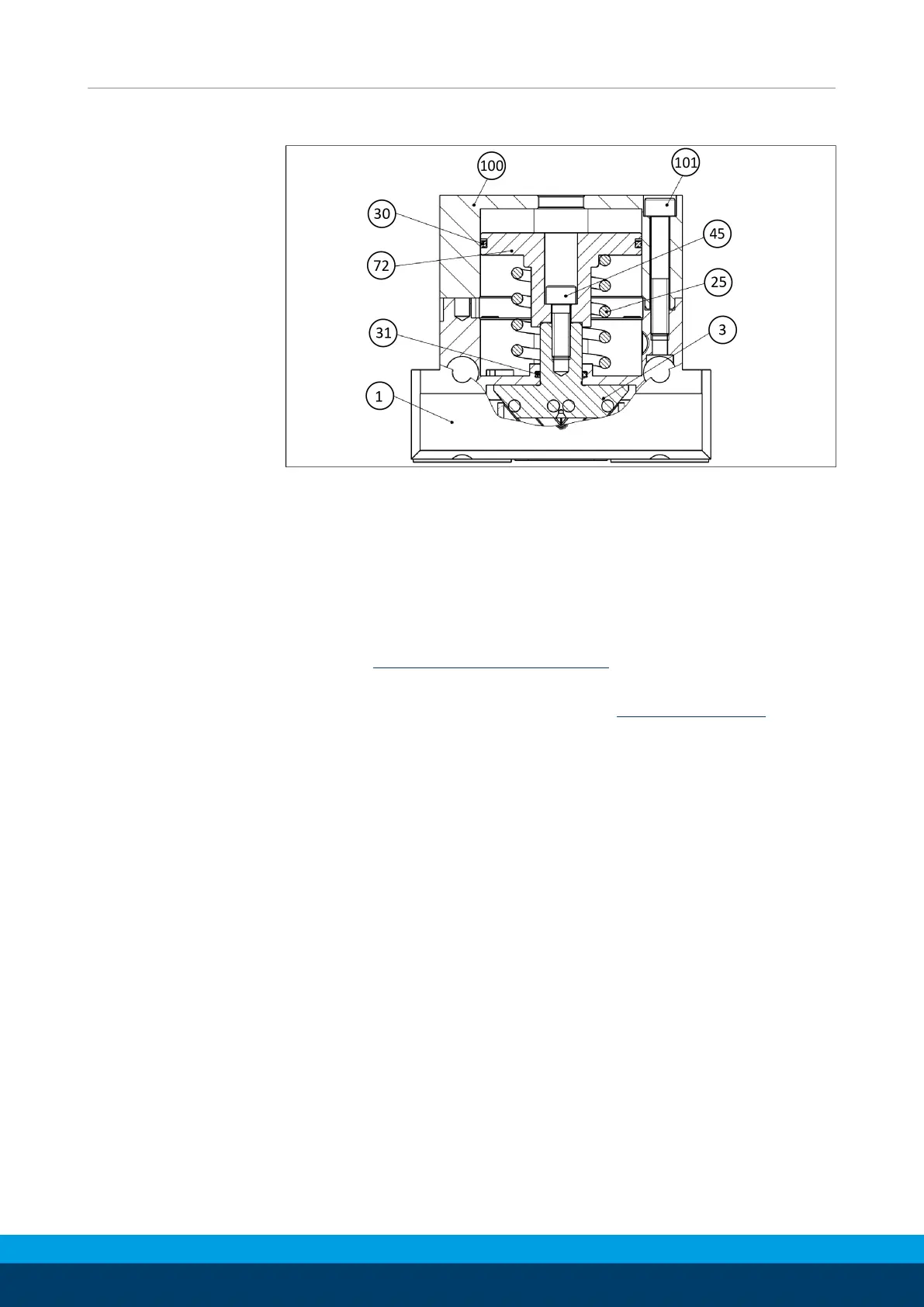

Installation of the
sizes 40-100 using an
assembly device
Assembly device cylinder piston
Ø Install the base jaws (2) and piston (3) in the housing (50).
Ø Put the cylinder piston (10) with the sealing (30) and the spring
force (25) in the housing (50).
Ø Carefully put device (100) over the cylinder piston (60) and
attach to the housing (50) using the screws (101).
Ø Screw in screw (45) and tighten with the appropriate tightening
torque, Tightening torque for screws [
}
54].
Ø Remove the device (100) and continue to assemble the gripper
in the opposite order to disassembly, Assembly drawing [
}
54].
