SCHUNK JGP - Assembly of the size 125; Assembly of the sizes 160-300 with two assembly devices

Maintenance
14.00 | JGP | Assembly and Operating Manual | en | 389157
51
Assembly of the
size 125
The assembly of the size 125 has to be carried out in the opposite
order and a assembly device is not needed.
Assembly of the sizes
160-300 with two
assembly devices
Ø Install the base jaws (2) and piston (3) with the sealing (31) in
the housing.
Ø Put the spring force (25), distance bolts (11) and the cylinder
piston (10) with the seal (30) in the housing (50).

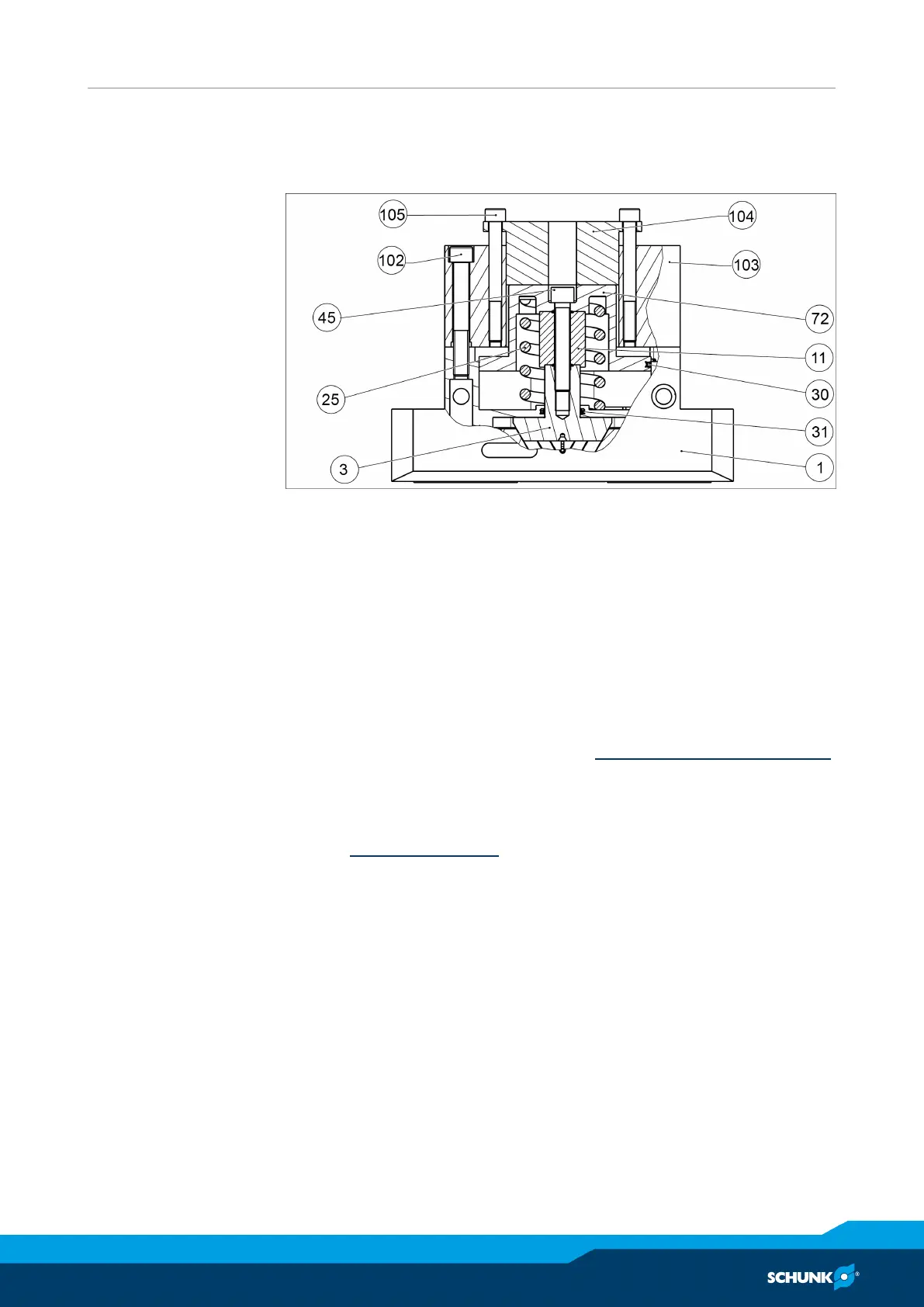

Ø Carefully put device 1 (103) over the cylinder piston (10) and
attach to the housing (50) using the screws 1 (102).
Ø Put on device 2 (104) and screw it evenly on device 1 (103)
using screws 2 (105).
Ø Screw in screw (45) in the cylinder piston (60) and tighten with
the appropriate tightening torque, Tightening torque for screws
[
}
54].
Ø Remove device.
Ø Put sealing (32/34) in and mount the cover (9) using the screws
(46), Assembly drawing [
}
54].
Further information
2 Sizes 40-100 [}52]
2 Sizes 160-300 [}53]
