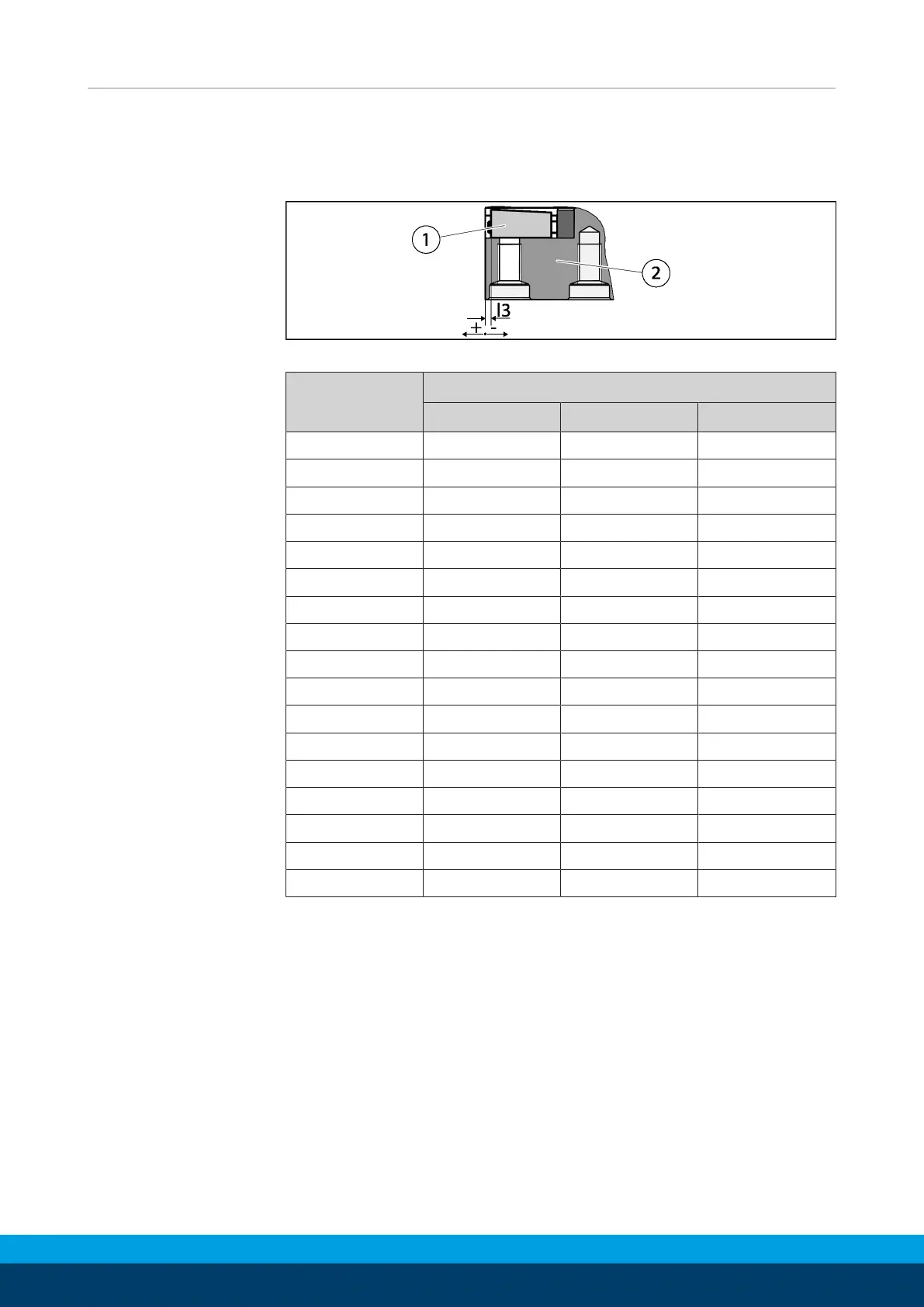

5.4.4 Setting dimensions for position sensors
The setting dimension applies to the following sensors:
FPS, APS-M1, APS-Z80
Setting dimension l3 of the base jaw (2) up to the front of the switch cam(1)
Size Setting dimension l3 [mm]
FPS APS-M1 APS-Z80
64-1 -0.8 0 +0.7
64-2 -1.1 0 -3.8
80-1 -2 0 0
80-2 -2.6 0 -3.3
100-1 -2.7 0 -1
100-2 -3 0 -3.8
125-1 -3.8 0 +1.7
160-1 0 0 0
160-2 -4.2 0 -7.1
200-1 +2.2 0 0
200-2 -7.5 0 -3.6
240-1 +4 0 +2.5
240-2 -8.2 0 -4.6
300-1 - 0 0
300-2 -12.3 0 -8.8
380-1 - 0 0
380-2 -18.9 0 -16.5
