Maintenance
10.00 | PGN-plus-P | Assembly- and Operating Manual | en | 389753
49
7.3 Lubricants/Lubrication points (basic lubrication)
SCHUNK recommends the lubricants listed.
During maintenance, treat all greased areas with lubricant. Thinly
apply lubricant with a lint-free cloth.
Lubricant point Lubricant
Metallic sliding surfaces microGLEIT GP 360
All seals Renolit HLT 2
Cylinder surfaces Renolit HLT 2
7.4 Lubricate product
WARNING
Risk of injury due to moving parts!
When moving the gripper fingers, body parts may get squashed/
hit causing severe injuries.
• Do not interfere with moving parts during operation.
• Observe position and direction of movement of the gripper
fingers.

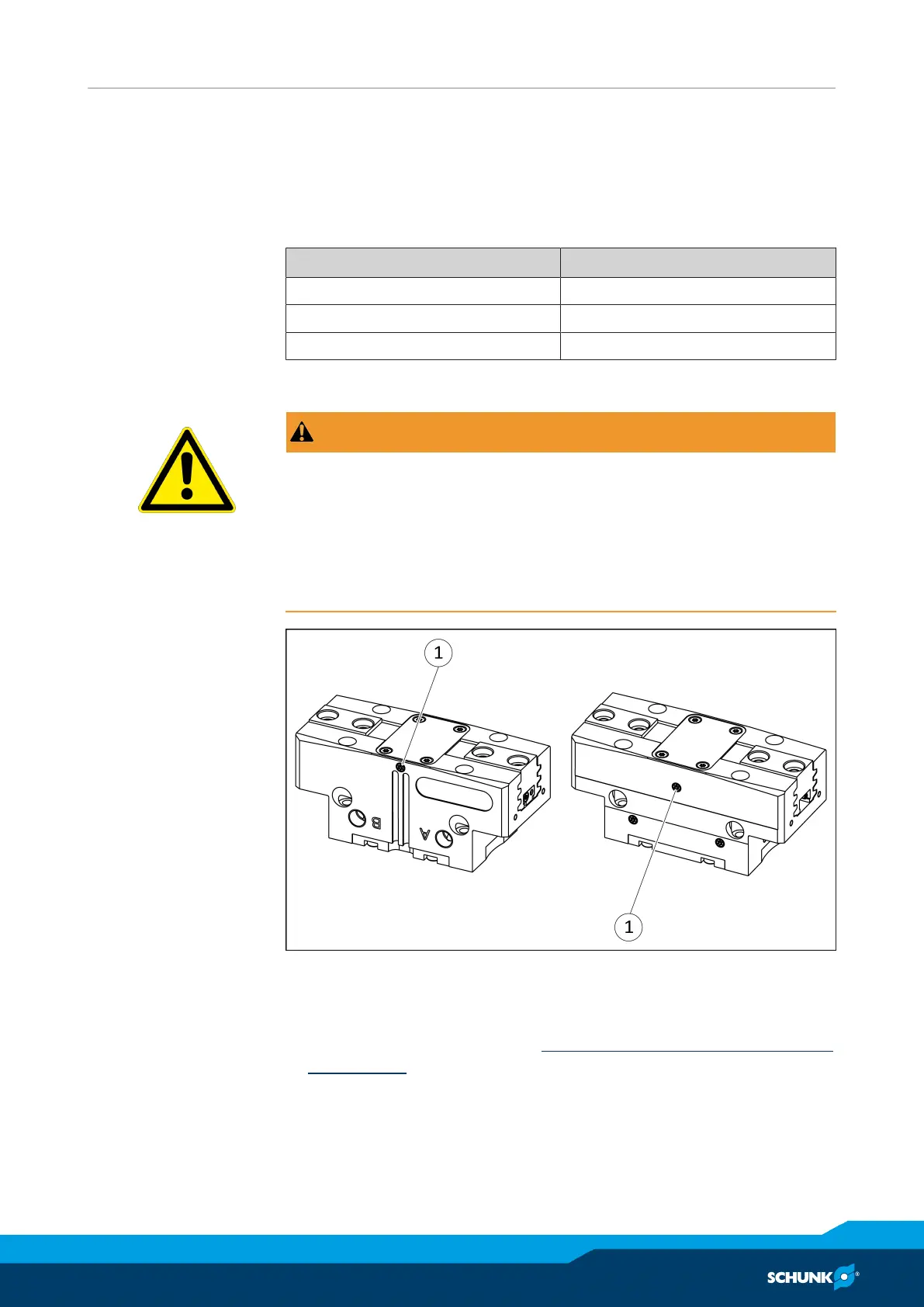

Ø Remove set-screw on an air purge connection (1).
Ø Screw in lubrication nipple.
Ø Apply a layer of grease to metallic sliding surfaces of the gripper
using the lubrication nipple, Lubricants/Lubrication points (basic
lubrication) [
}
49].
✓ While lubricating, completely open and close the gripper
alternately.
Ø Unscrew the lubrication nipple.
Ø Screw set-screws into both air purge connections (1).
