Assembly
20
10.00 | PGN-plus-P | Assembly- and Operating Manual | en | 389753
Dust-tight (SD)
NOTE
In order to achieve perfect functioning of the gripper, the set-
screw of the air purge connection must be removed and replaced
with a pneumatic connection when using the dust-tight variant
(SD). SCHUNK recommends using the air purge connection within
the scope of the technical data, Technical data [
}
17].
5.2 Connections
5.2.1 Mechanical connection
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Connections at the
base jaws

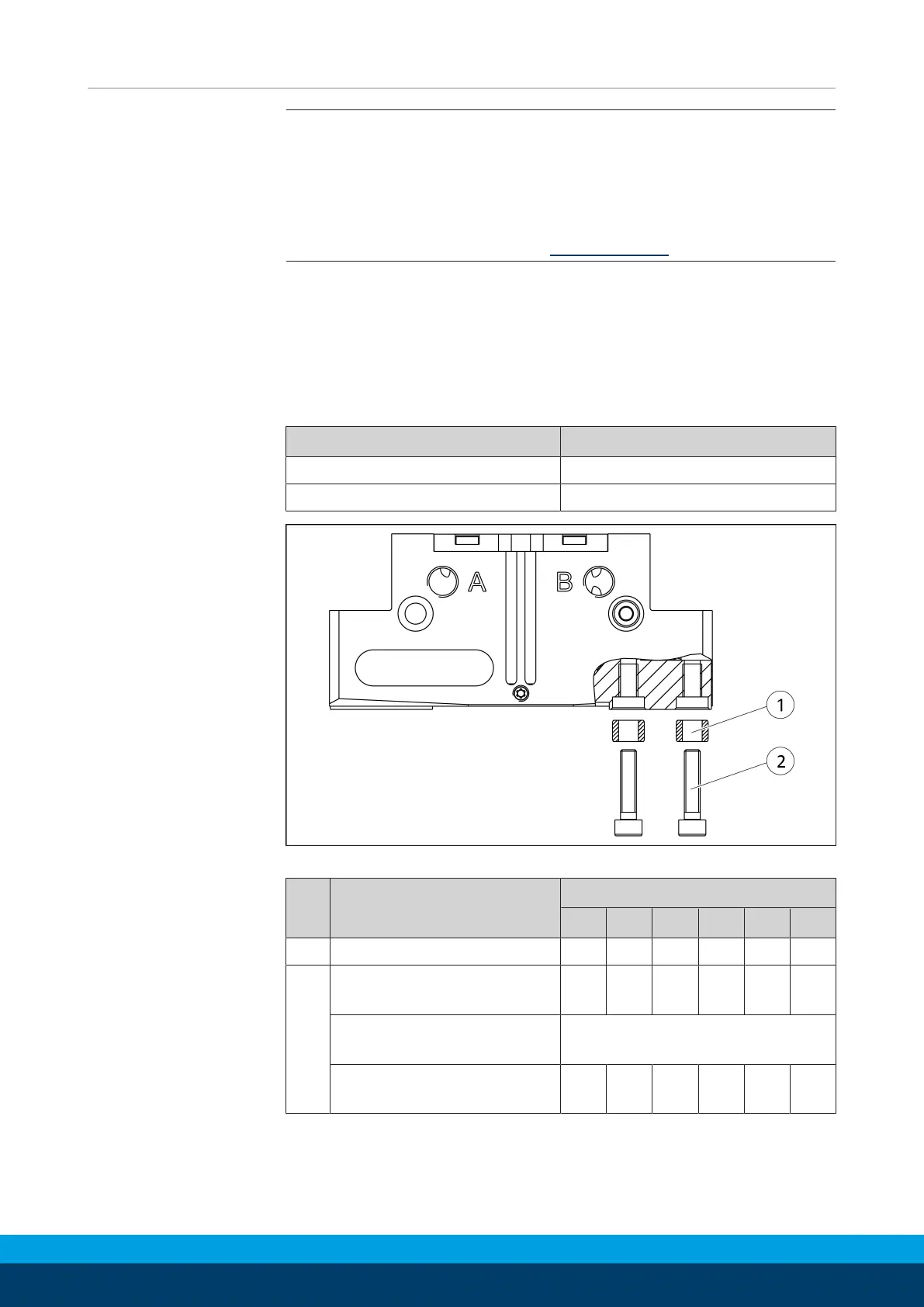

Connections at the base jaws
Item Mounting PGN-plus-P
40 50 64 80 100 125
1 Centering sleeve Ø4 Ø5 Ø6 Ø8 Ø10 Ø10
2 Thread in base jaws M2.
5
M3 M4 M5 M6 M6
Mounting screw strength
class
12.9
Max. depth of engagement
from locating surface [mm]
6.1 8.5 10.7 11.9 14.2 14.2
