SCHUNK PGN-plus-P User Manual

Assembly
10.00 | PGN-plus-P | Assembly- and Operating Manual | en | 389753
21
Item Mounting PGN-plus-P
160 200 240 300 380
1 Centering sleeve Ø14 Ø16 Ø16 Ø22 Ø28
2 Thread in base jaws M10 M12 M12 M16 M20
Mounting screw strength
class
12.9
Max. depth of engagement
from locating surface [mm]
17 19.3 21.1 27.9 40
Dust-tight (SD)
NOTE
On delivery of the dust-tight version (SD) the intermediate jaws
are screwed onto the base jaws. The intermediate jaws can
become off while removing the screws.
Observe during assembly, that the intermediate jaws are between
the base jaws und the gripper finger.

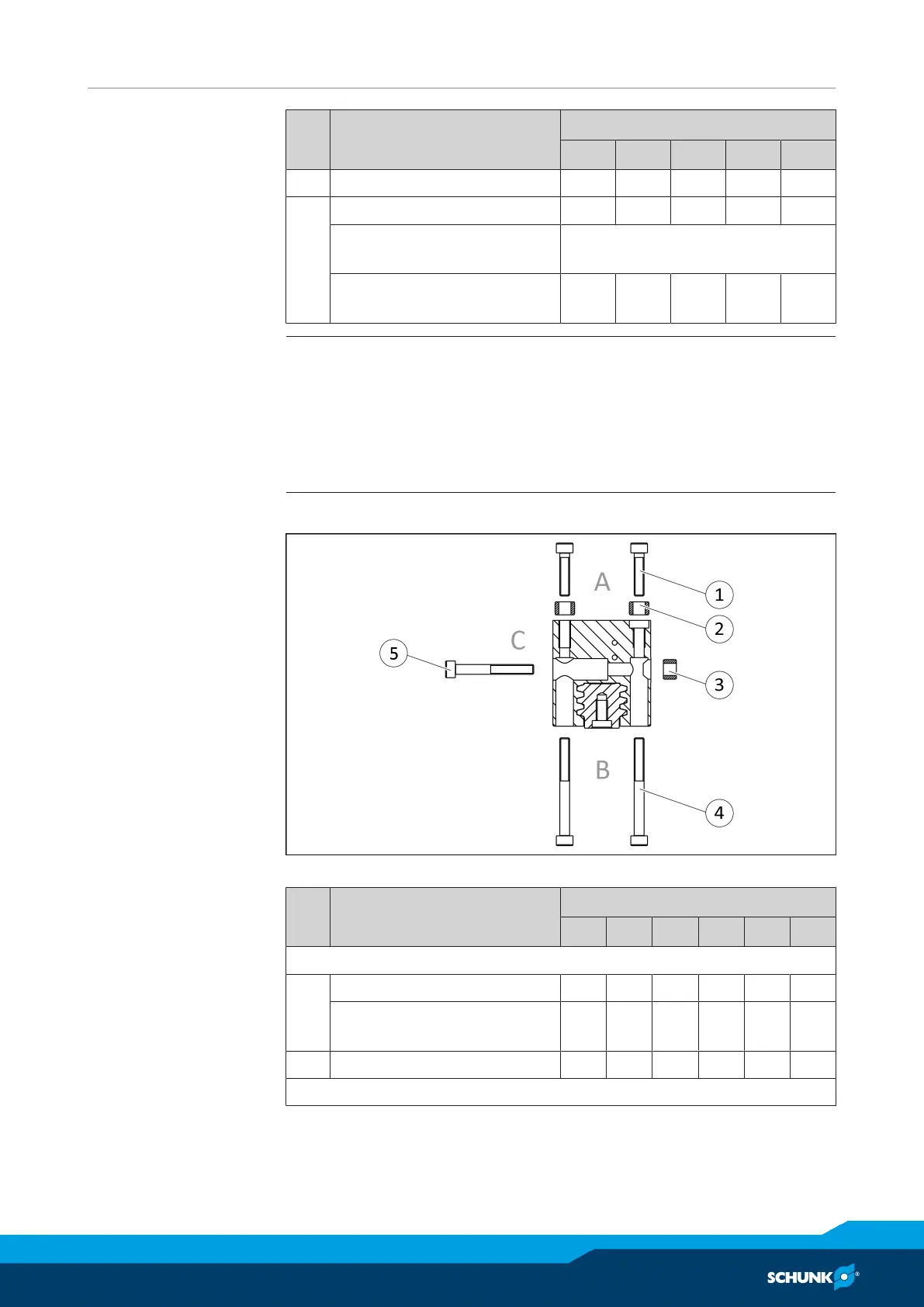

Connections at the
housing
The product can be mounted from three sides.
Connections at the housing
Item Mounting PGN-plus-P
40 50 64 80 100 125
Side A
1 Mounting screw M3 M4 M5 M5 M6 M8
Max. depth of engagement
from locating surface [mm]
6 11 12 15 14 20
2 Centering sleeve Ø5 Ø6 Ø8 Ø8 Ø10 Ø12
Side B
