SCHUNK PGN-plus-P User Manual

Assembly
36
10.00 | PGN-plus-P | Assembly- and Operating Manual | en | 389753

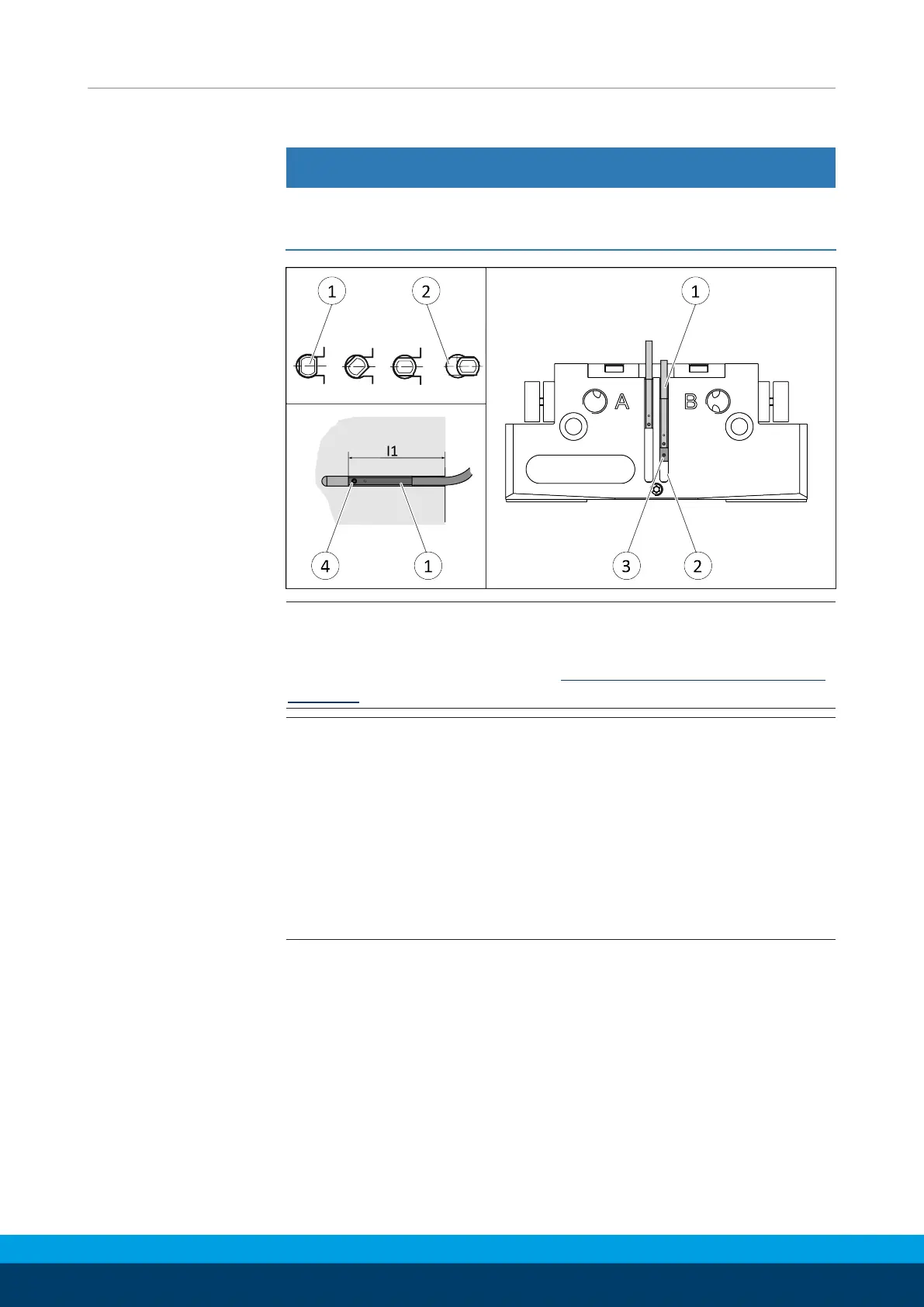

5.4.9 Mounting MMS 22-PI1 programmable magnetic switch
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE
If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), Setting dimensions for magnetic
switches [
}
28].
NOTE
The magnetic switch MMS 22-PI1 can be adjusted and taught in
two ways.
• "Standard mode" allows for quick installation on the T-nut
preset by SCHUNK in the groove or the defined setting
dimension "l1."
• In "Optimal Mode", the sensor identifies the optimal position in
the groove itself.
SCHUNK recommends "Optimal Mode" for setting the sensors.
