SCHUNK PGN-plus-P - Mounting Programmable MMS 22-PI2 Magnetic Switch

Assembly
34
10.00 | PGN-plus-P | Assembly- and Operating Manual | en | 389753

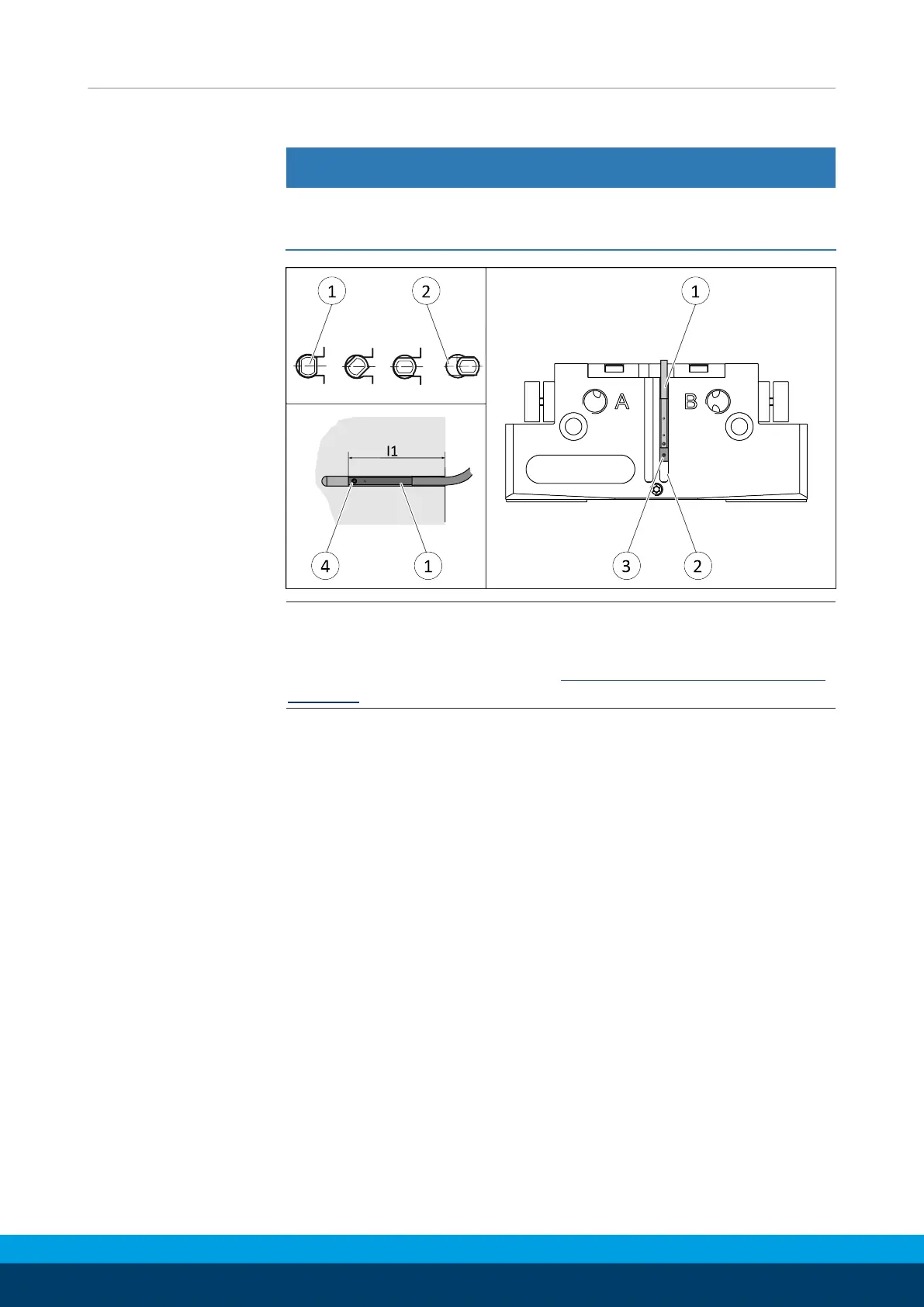

5.4.7 Mounting programmable MMS 22-PI2 magnetic switch
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE
If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), Setting dimensions for magnetic
switches [
}
28].
Ø Turn the sensor (1) into the groove (2).
OR: Slide the sensor (1) into the groove (2) until the sensor (1)
stops at the T-nut (3).
Ø Secure the sensor (1) using the set-screw (4).
Tightening torque: 10Ncm
Ø Adjust sensor (1), see sensor assembly and operating manual.
