Assembly
40
10.00 | PGN-plus-P | Assembly- and Operating Manual | en | 389753

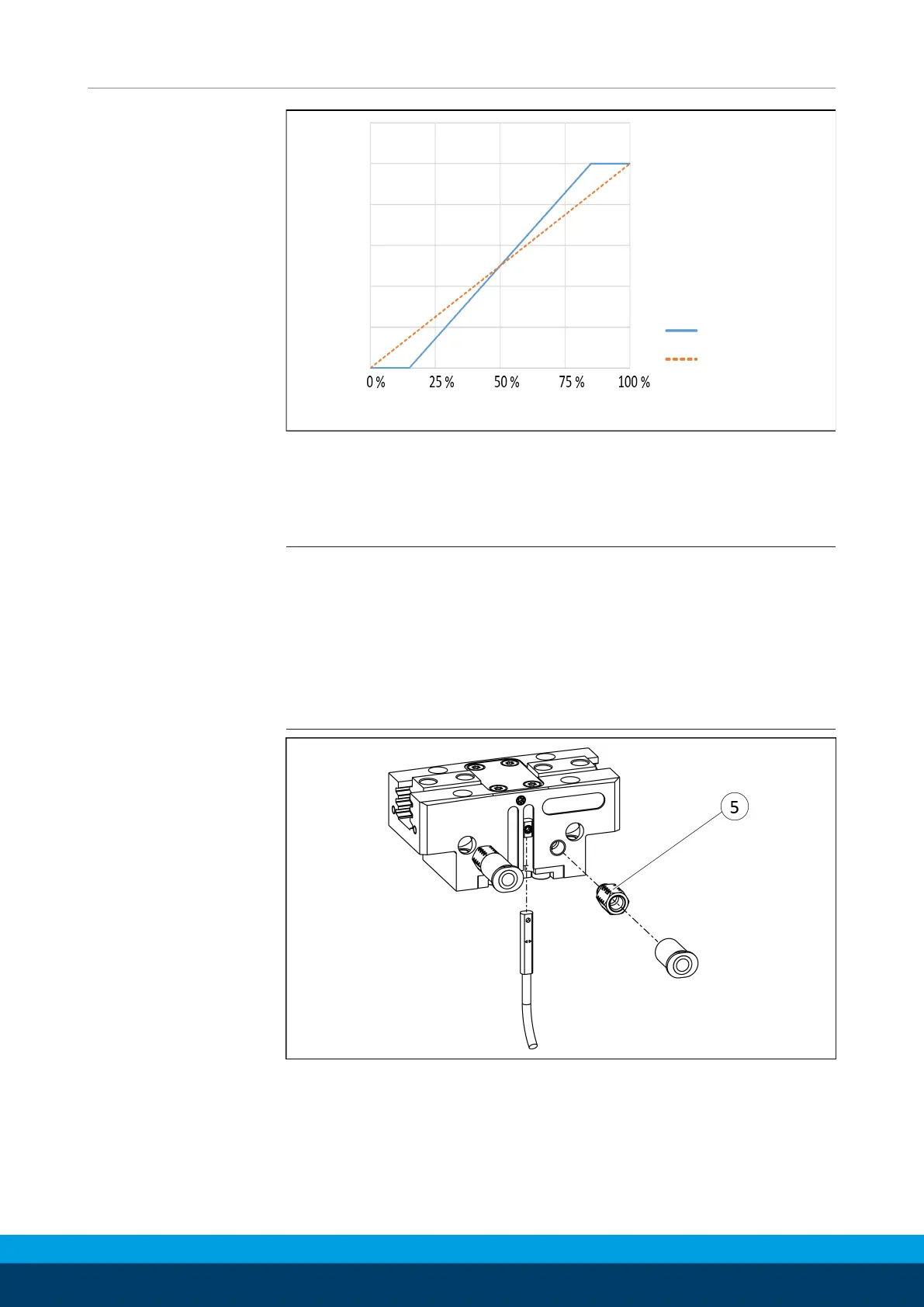

Analog signal [V]
Stroke [mm]
Signal Real
Signal Optimal
Ø Turn the sensor (1) into the groove (2).
OR: Slide the sensor (1) into the groove (2) until the sensor (1)
stops at the T-nut (3).
Ø Secure the sensor (1) using the set-screw (4).
Tightening torque: 10Ncm
NOTE
Only valid for size 50.
The gripper is too fast without throttling, which means that
teaching the sensor does not work reliably. Fixed throttle valves
or other throttle valves with a diameter of 0.8 mm can be used for
the teaching process.
ID number throttle reduction M5 - 0.8: 9953035
Ø Mount a throttle reduction M5 - 0.8 (5) at both main
connections "A" and "B".
Ø Adjust sensor (1), see Translation of Sensor Assembly and
Operating Manual.
Ø Remove throttle reduction (5) after finishing the sensor
teaching process.
