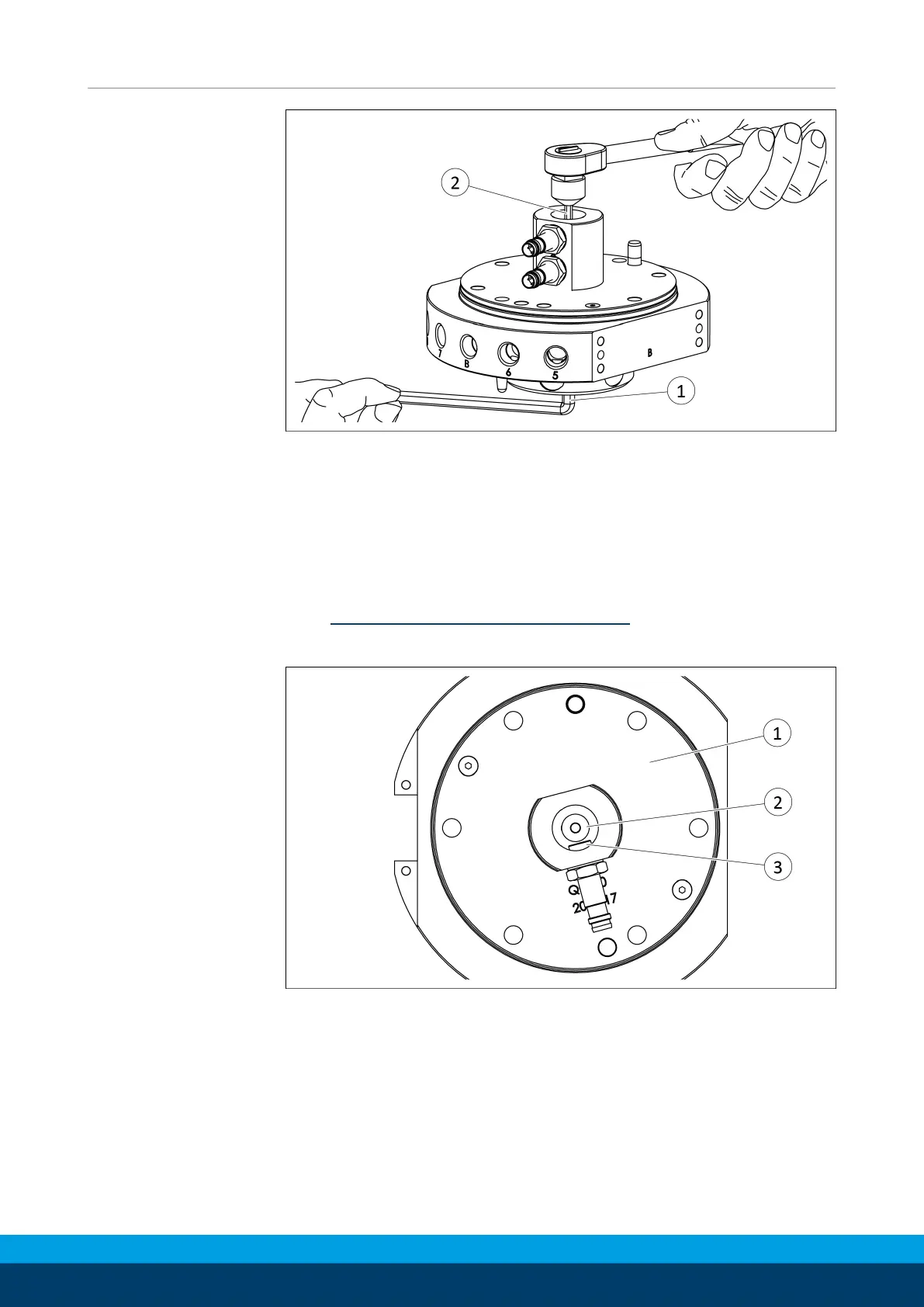

Tighten the detection shaft
Ø Fix the cam of the SWK with a hexagon socket wrench(1) and
tighten the detection shaft from above with a hexagon socket
wrench(2).
✓ Observe the wrench size of the hexagon socket wrenches(1)
and (2) and the max. tightening torque of the mounting
screws for each size, see table "Mounting detection shaft",
Wrench sizes and tightening torques [
}
84].
Check and adjust sensors
Check detection shafts and sensors
Ø Look at the sensor assembly from above.
