SCOTT Protege SG - Replacing the New Sensor

Maintenance 37
SCOTT SAFETY 087-0065 REV B

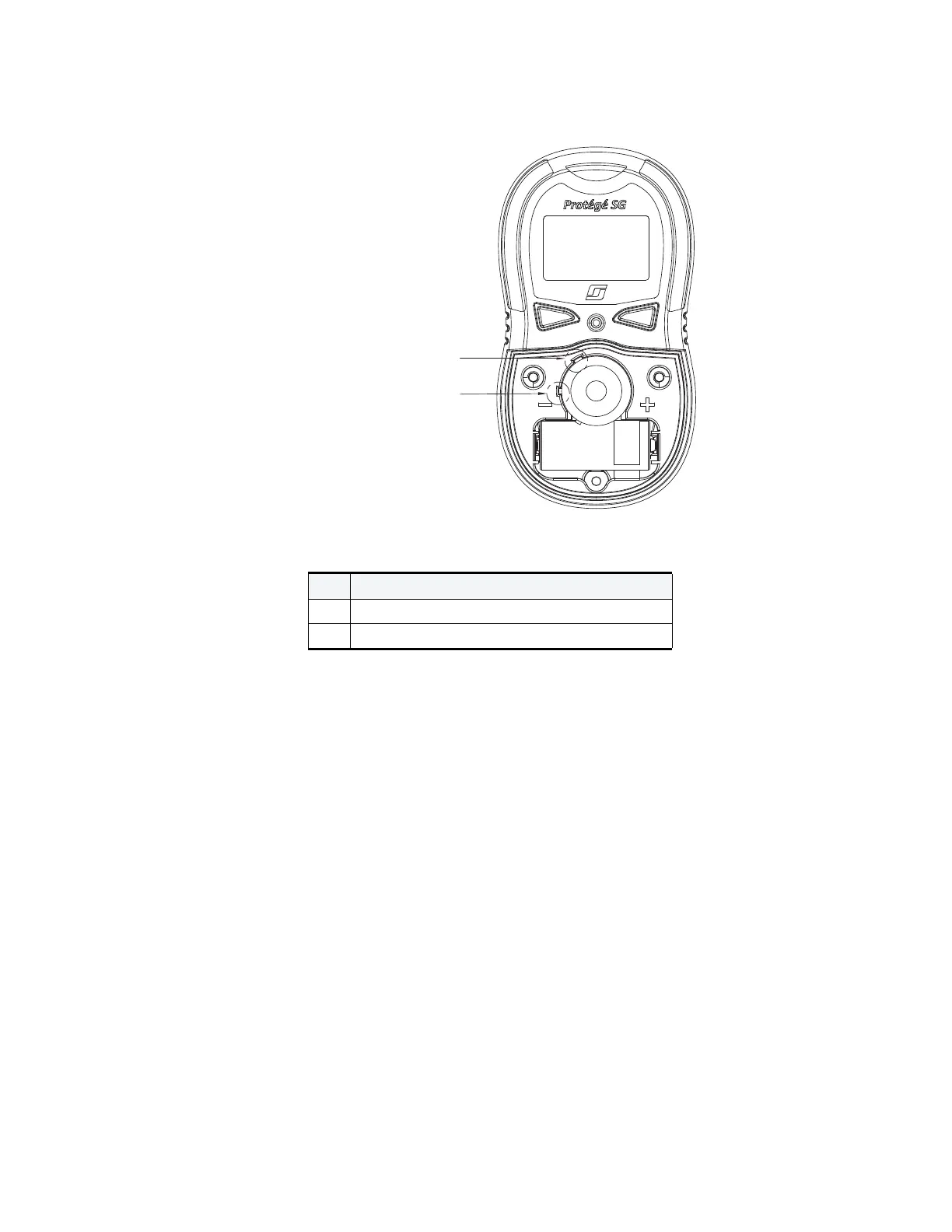

Figure 17 Replacing the New Sensor
5 Reinstall the sensor cover with three (3) M2.5 × 12 screws and tighten the screws
with the sequence in Figure 18.
Table 16 Replacing the New Sensor
NO. DESCRIPTION
1 Alignment (upper)
2 Alignment (lower)
1
2
