4.6.2. Software Description
The Scott Gas Monitor software provides a PC interface to the Protégé to download the data log,
adjust settings, and establish alarm set points. Navigation of the software is accomplished using the
PC mouse and keyboard. The four tabs located at the top of the interface are HOME, SETTINGS,
SET CLOCK, and VIEW LOG.

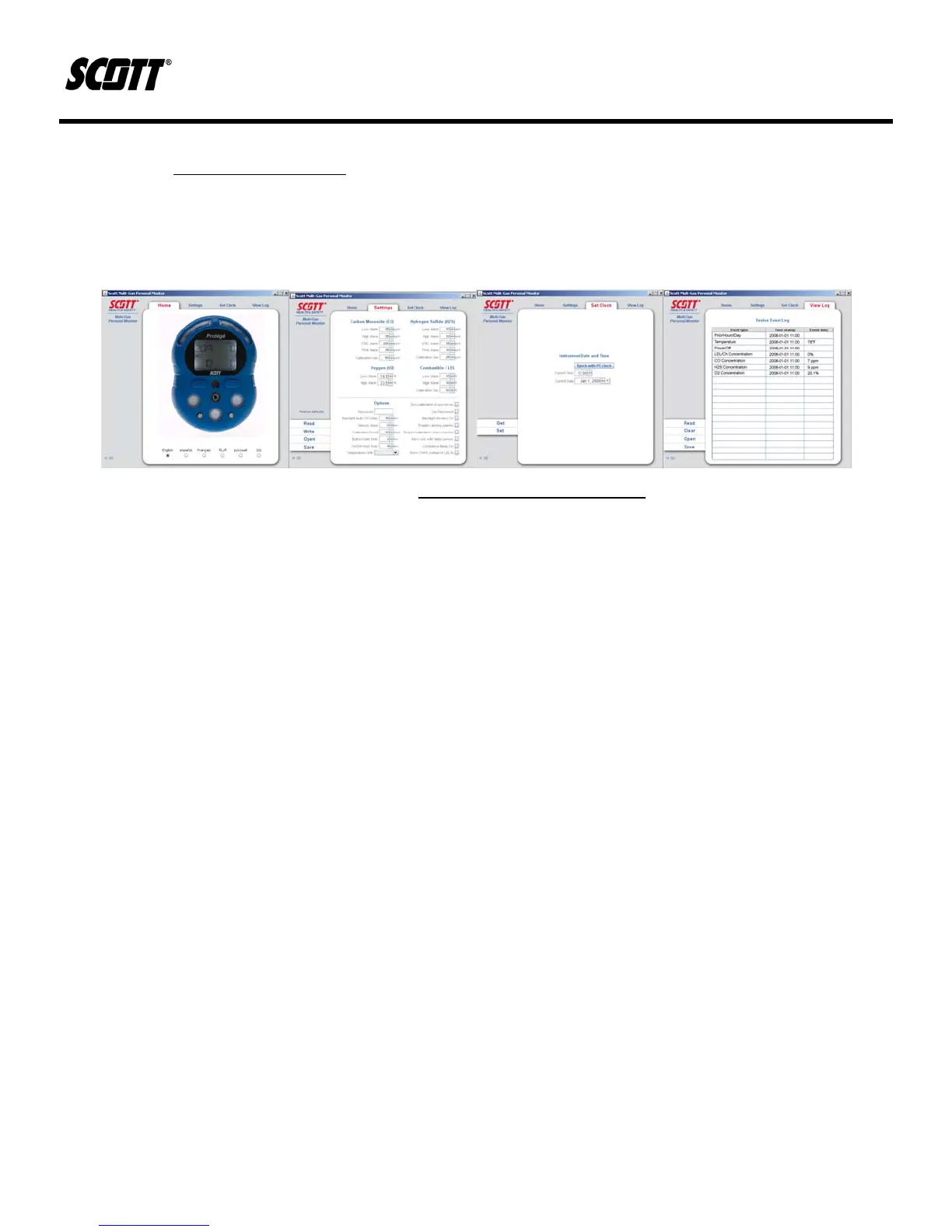

Figure 4-10. Gas Monitor Software Tabs
The HOME tab is the default screen that appears when starting the Gas Monitor software. Users
may select the language to display and see the status of the connection to the Protégé from this tab.
The SETTINGS tab provides a number of different options for the user. Alarm set points can be
changed, a password can be inserted, timers can be defined and the length of the LCD backlight
can be configured all from the settings tab.
The SET CLOCK tab is used to set the date and time of the Protégé. There is an option to
synchronize the time of the Protégé with the PC for accurate time keeping ability.
The VIEW LOG tab does not have any configurable user options. It displays the internal data log of
events from the Protégé. This data can be read, saved, cleared, and recalled from previously saved
files.
