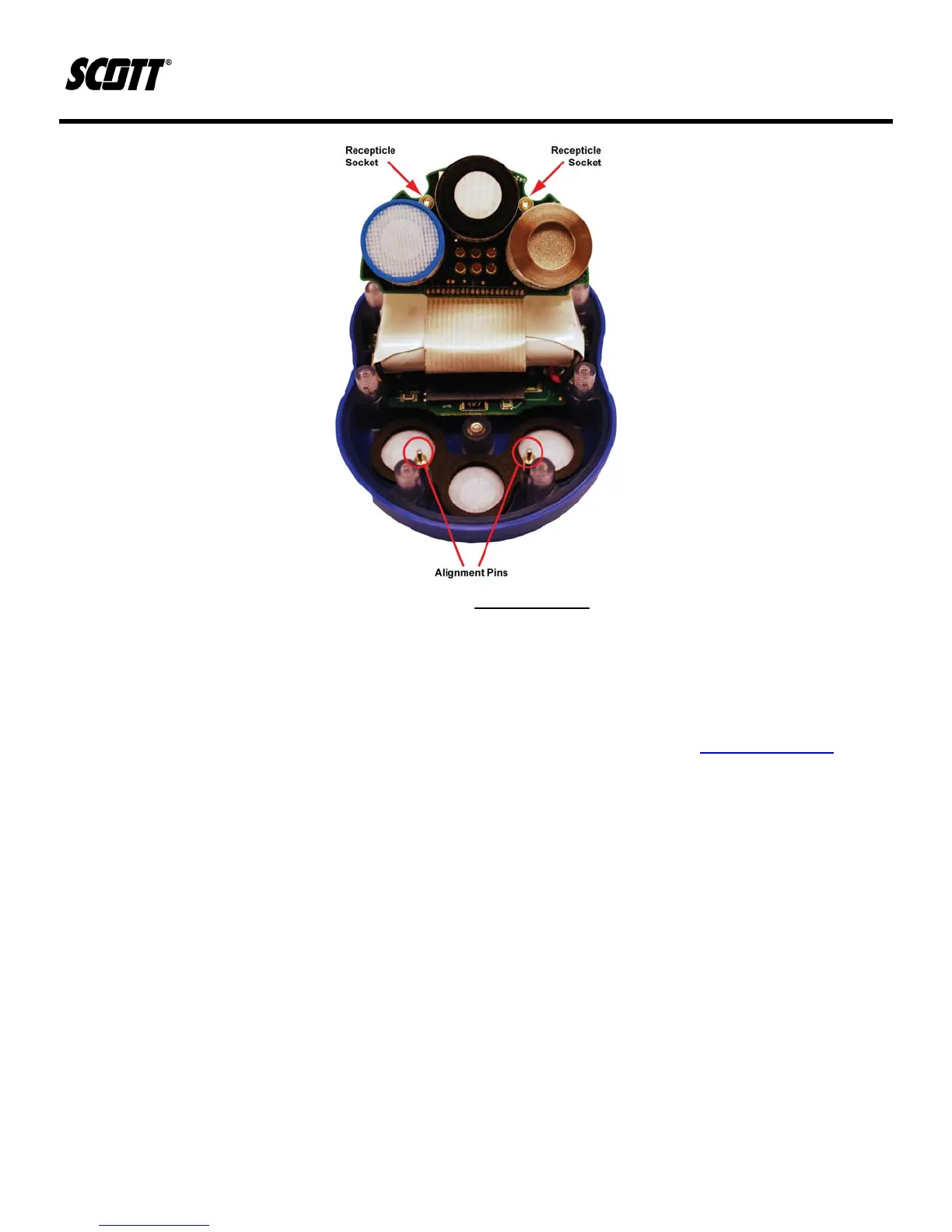

Figure 5-3. Pin Alignment
7) Replace back cover and install 7 Torx screws. Hand tighten the screws taking care not to
over torque as this can cause damage to the Protégé housing.
8) Use the Scott Gas Monitor software to set or verify settings for the newly installed sensor.
Refer to Paragraph 4.6.3 for changing alarm set points.
9) Perform Zero and Span calibrations of the Protégé in accordance with Paragraph 4.3.1.
