第 60 页

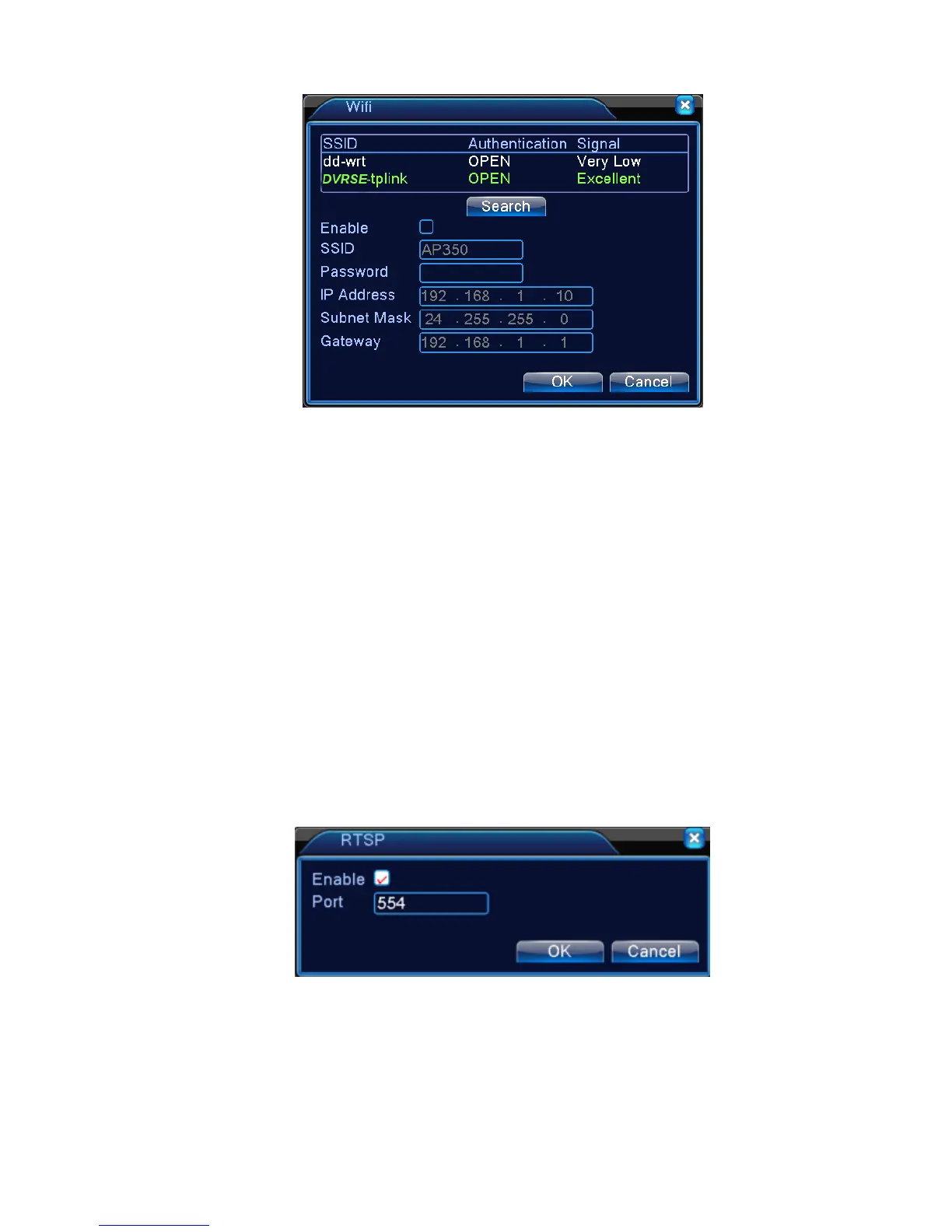

Pic 4.34 WIFI configure
【Search】： click【search】to search all the available wireless device in current range.
【enable】： tick it to enable firstly, then go for further setting.
【auto obtain IP address】： tick it to enable, device will auto obtain a WIFI IP.
【SSID】： wireless LAN name, auto match to the wireless device u connected.
【Password】： wireless network password of router；
【IP address】: to set the IP address of device, default is 192.168.1.12
【subnet mask】:set subnet mask of device, default is 255.255.255.0
【gateway】： set gateway of device, default is 192.168.1.1
【RTSP】
To do surveillance via cross-browser (Safari, Firefox, Google chrome ) and VLC software. This
function only for monitor but can not control the device.
Pic 4.35 RTSP setting
【Enable】： ■ means enable, tick it firstly before setting.
【Port】： the default port is 554
