System Description
Type 024.16.720
6.6. Interfaces of the positioner
Input for position
set-point value
1)
4–20mA
2)
0–20mA
Binary input
24 V DC
Communications
interface
Positioner
Analog
position feedback
(optional)
Inputs Outputs
Power
Operation
1)
or optional bus connection AS interface
2)
Default setting

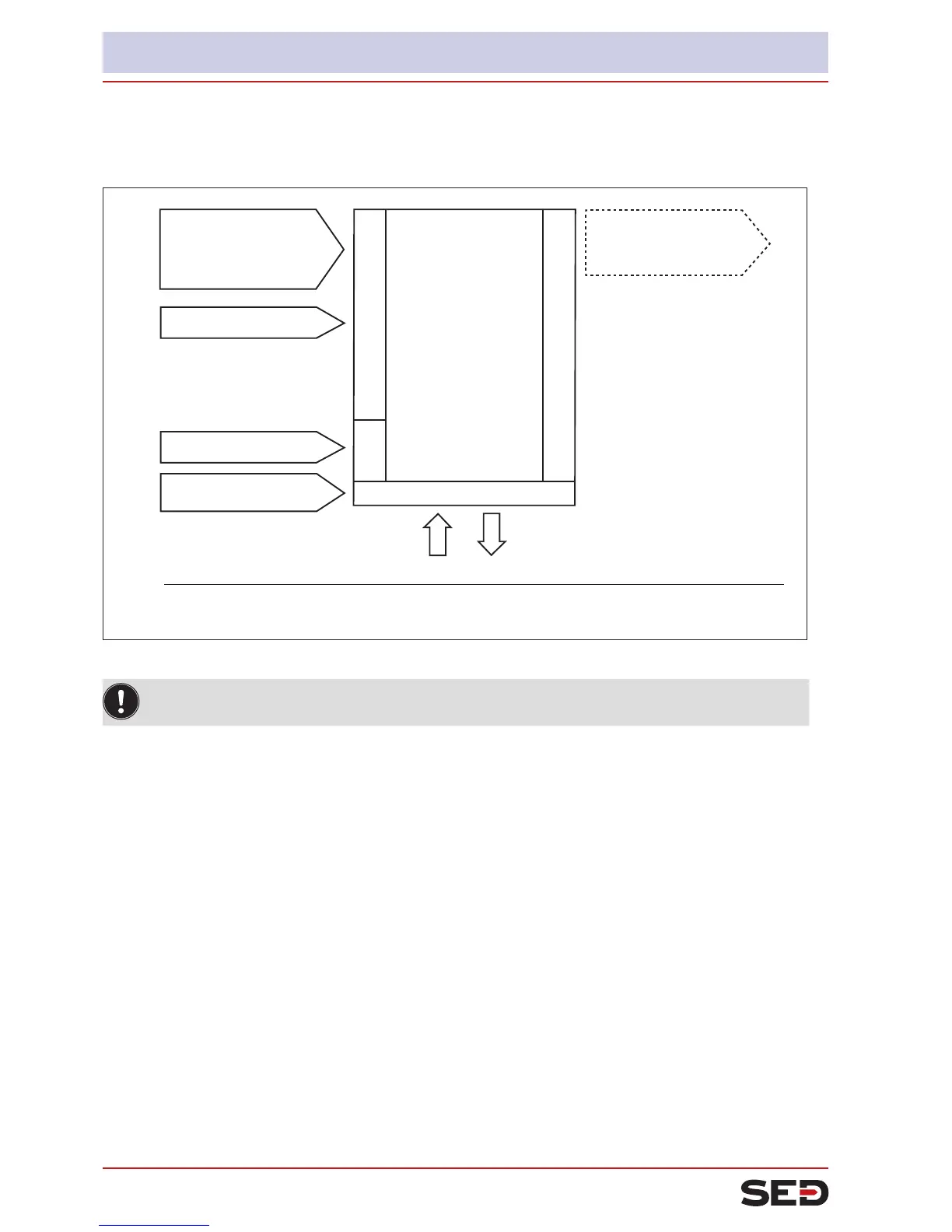

Fig. 6: Interfaces
The positioner Type 024.16.720 is a 3-wire device, i.e. the power (24 V DC) is supplied separately from
the set-point value signal.
•Inputforpositionset-pointvalue(4–20mAcorrespondsto0–100%
(depending on position of DIP switch 1)).
•Binaryinput
If a voltage > 10 V is applied, SAFE POSITION is activated, i.e. the valve is moved to the safety position
(factory setting, can be changed with communications software).
•Analogpositionfeedback(optional)
Thepositionofthevalvecanbetransmittedviaananalog4–20mAoutputtothePLC
(4–20mAcorrespondsto0–100%).
