24
Technical Data
Type 024.16.720
7.4. Pneumatic data
Control medium neutral gases, air
Quality classes in accordance with DIN ISO 8573-1
Dust content Class 5 max. particle size 40 µm, max. particle density 10 mg/m³
Water content Class 3 max. pressure dew point
- 20 °C or min. 10 °C below the lowest operating temperature
Oil content Class 5 max. 25 mg/m³
Temperature range
of the compressed air 0 ... +60 °C
Pressure range 3 ... 7 bar
Air output of control valve 7 l
N
/ min (for aeration and deaeration)
(Q
Nn
-valueaccordingtodenitionforpressuredropfrom7to6bar
absolute)
optional:
130 l
N
/ min (for aeration and deaeration)
Connections Plug-in hose connector Ø6 mm / 1/4"
Socket connection G1/8
7.5. Adhesive labels

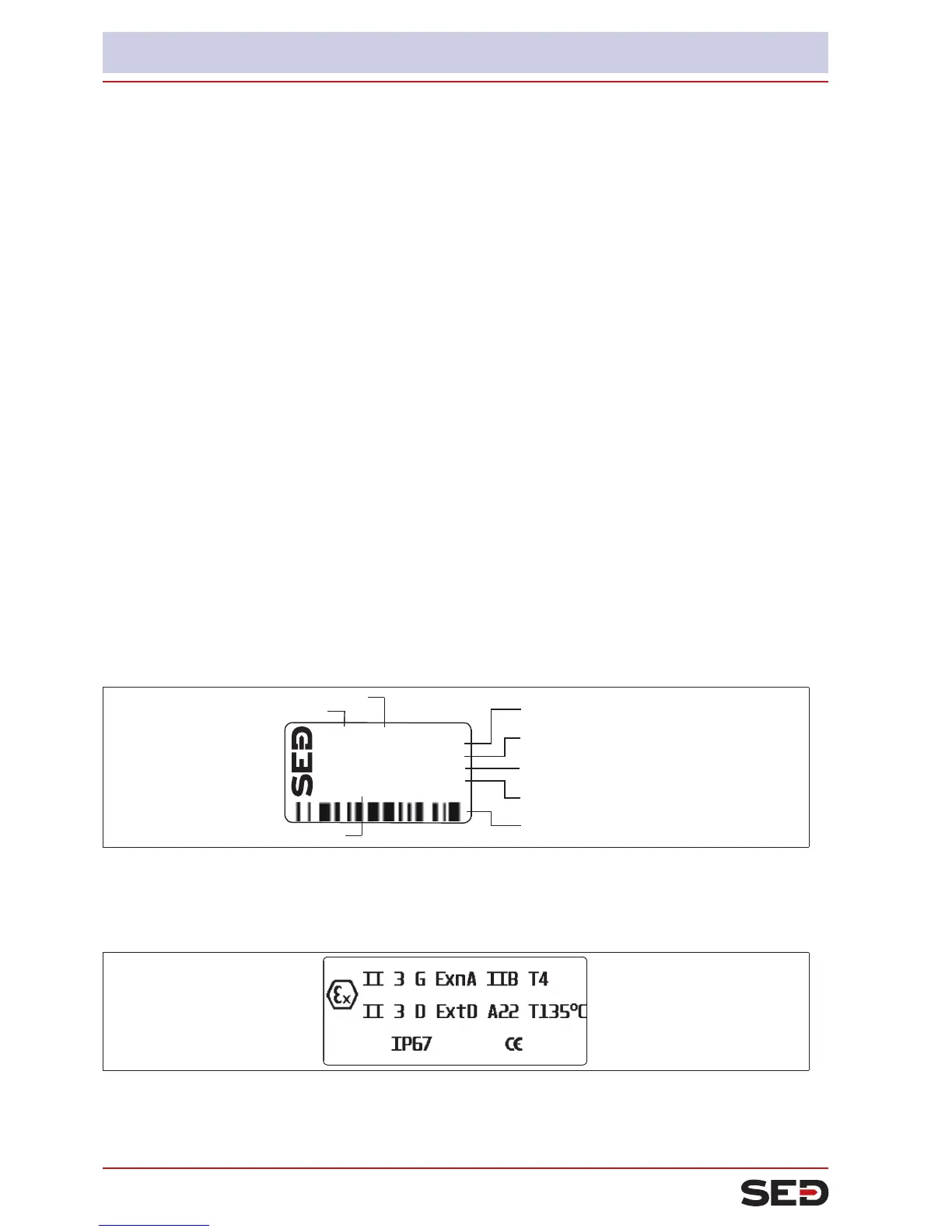

7.5.1. Label(example)
024.16.720 24 V DC
single act Pilot 0.6
Pmax 7 bar
Tamb 0°C - +55°C
S/N 001000
00177689
Made in Germany
W14UN
CE
Identicationnumber
Controller
Nominal pressure
Type
Control function - control valve
Bar code
Serial number - CE mark
Max. ambient temperature
Fig. 7: Example of label
7.5.2. Identicationlabeloftheignitionprotectionclasses
Fig. 8: Identication label of the ignition protection classes
